Installation Manual for Front Runner Cargo Roller 1000mm

Important Information

The Front Runner Cargo Roller 1000mm is designed to assist in loading cargo onto your vehicle's roof rack. It is critical that all products are properly and securely assembled and attached to your vehicle. Improper attachment could result in an automobile accident and cause serious bodily injury or death. If you do not have mechanical experience, please have the product installed by a professional.

Parts List

Ensure all components are present before starting:

• 1x Cargo Roller (1000mm)
• 1x Roller Mount LH
• 1x Roller Mount RH
• 2x Spacer
• 2x M12 Flat Washer
• 4x M8 x 12 Button Head Bolt
• 4x M8 Thin Nut
• 4x M8 Schnorr Washer

Tools Required

• 5mm Allen Key

Installation Steps

Step 2.1: Prepare the Roller

Slide the Mount Bracket together with a M12 Flat Washer and Spacer into each end of the Cargo Roller as shown in the diagram.

Step 2.2: Mount to Rack

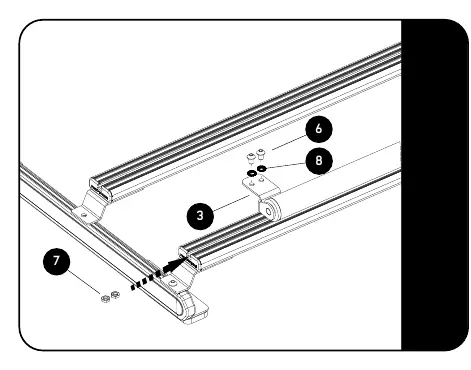

Insert four M8 Thin Nuts (two per side) into the slats' machined slots. Loosely secure the Left and Right Side Roller Mount Brackets using the M8 Button Head Bolts and M8 Schnorr Washers.

Step 2.3: Final Adjustment

Center the Cargo Roller from left to right. Using a 5mm Allen Key, fully tighten all the fasteners. Tip: Fully tighten one side's Mount Bracket before applying light pressure when tightening the other side.

Safety and Maintenance

You are responsible for checking the attachments prior to use and periodically inspecting the products for adjustment, wear, and damage. The required tightening torque for M8 fasteners is 15-20Nm (11.06 ft lb - 14.75 ft lb).
