Garmin ECHOMAP Ultra 2 16xsv Flush Mount Template

Product Overview

The Garmin ECHOMAP Ultra 2 16xsv is a high-performance marine chartplotter. This document provides the official flush mount template required to create an accurate cutout on your boat's mounting surface. Using the correct template is critical for a secure and professional installation.

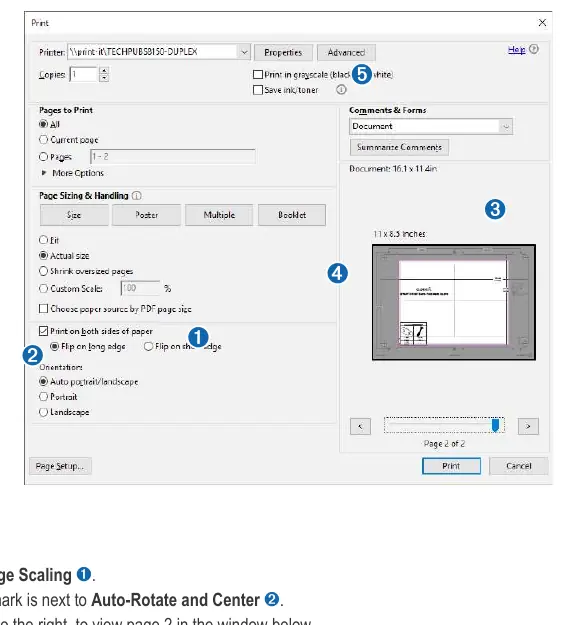

Printing Instructions

It is strongly recommended to use the physical template provided in the original product box. If you must print the template yourself, you must follow these instructions precisely to avoid incorrect cutout dimensions, which could lead to a hole that is too large or too small for the device.

• Open the print dialog by selecting File > Print.
• Set Page Scaling to None to ensure the template prints at the correct 1:1 scale.
• Ensure the Auto-Rotate and Center option is enabled.
• Verify that your printer and paper size are large enough to accommodate the entire template. If the paper is too small, adjust the Properties to select a larger paper size.
• Always verify the printed dimensions against the actual device before cutting your mounting surface.

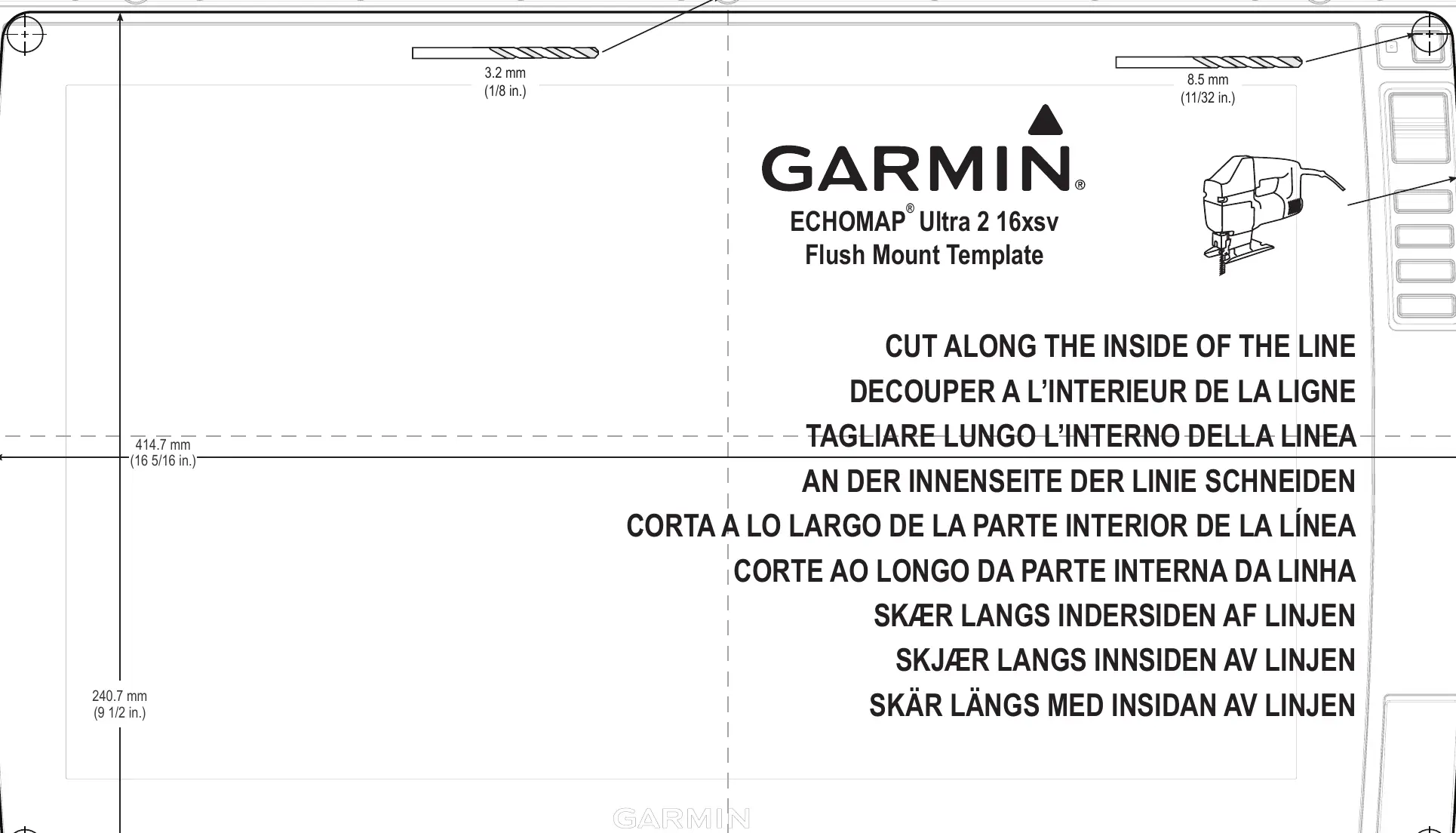

Installation Guidelines

When using the template for installation, ensure it is securely positioned on the mounting surface. The template indicates the exact area to be removed. Cut along the inside of the line to ensure the device fits snugly into the cutout. Failure to follow these instructions may result in damage to your mounting surface, for which the manufacturer is not responsible.

Safety and Maintenance

Always wear appropriate protective gear when cutting into your boat's console or dashboard. Ensure there are no hidden wires, fuel lines, or structural components behind the mounting surface before you begin cutting. Regularly inspect the mounting hardware to ensure the device remains securely fastened, especially after exposure to harsh marine environments or heavy vibrations.
