User Manual for Garvee CM5432D-GS Espresso Machine

Quick guide from the manual

This manual provides instructions for the Garvee CM5432D-GS espresso machine. Before first use, it is essential to rinse the machine with warm water. The machine features automatic power-off after 29 minutes of inactivity. If indicators blink rapidly, it usually indicates a need to reset the knob to the off position or perform descaling. Always ensure the machine is on a flat surface and never immerse the housing in water.

Know your coffee maker

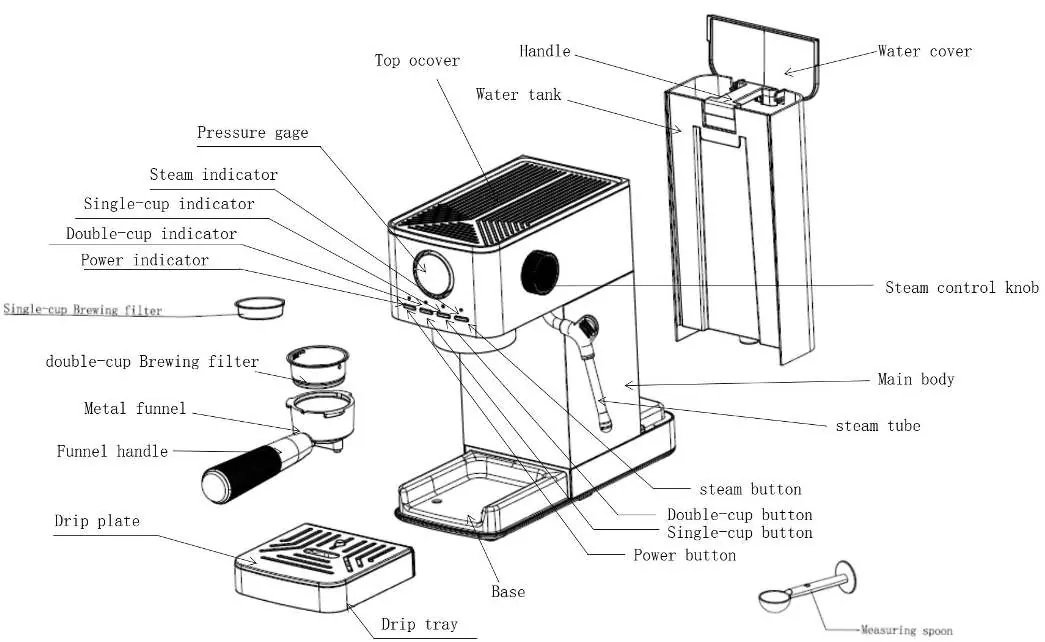

The machine consists of a main body, a removable water tank with a cover, a steam control knob, a steam tube, and a control panel. The control panel includes buttons for Power, Single-cup, Double-cup, and Steam, along with corresponding indicators. Accessories include a metal funnel, brewing filters (single and double), and a measuring spoon.

Before the first use

To ensure optimal coffee taste, rinse the machine:

• Remove the plug at the bottom of the tank.
• Fill the water tank with water (do not exceed MAX).
• Place an espresso cup on the drip plate.
• Connect to power and press the power button.
• Once indicators stop flashing (pre-heating finished), press the double-cup button to run water through the system.

Make espresso coffee

1. Pre-heat the machine, metal funnel, and cup.
2. Fill the brewing filter with ground coffee using the measuring spoon and tamp it down.
3. Insert the funnel into the machine at the LOCK position and turn it anticlockwise to the CLOSE position.
4. Place a cup on the drip plate.
5. Select single or double-cup button to start brewing.
6. The machine stops automatically when brewing is finished.

Frothing milk and cappuccino

1. Press the steam button and wait for the indicator to become solid.
2. Fill a jug with about 100g of cold whole milk.
3. Insert the steam wand into the milk (about 2cm deep).
4. Turn the knob to the steam position.
5. Froth the milk by moving the vessel round from up to down.
6. Clean the steam outlet with a wet sponge immediately after use.

Settings and functions

You can customize the dispensing amount for single and double cups:

• Single cup: Hold the single-cup button for 3 seconds to enter setting mode. Press again to start dispensing, and press a third time to stop (10-25 seconds range).
• Double cup: Hold the double-cup button for 3 seconds to enter setting mode, then follow the same procedure as the single cup (20-50 seconds range).
• Restore factory settings: Simultaneously hold and press both the single and double-cup buttons for 3 seconds.

Cleaning and maintenance

Regular maintenance is required for longevity:

• Clean the housing with a moisture-proof sponge.
• Wash the water tank, drip tray, and attachments in water and dry thoroughly.
• Descaling: The machine will flash all indicators 5 times after 500 cycles to signal a need for descaling. Use a household descaler or citric acid solution (100 parts water to 3 parts citric acid). Run the solution through the machine, let it sit for 5 minutes, and repeat. Rinse with tap water afterwards.
