User manual for George Home GH Dual Drawer Air Fryer 10L

Quick guide from the manual

This air fryer is designed for household use only. Before first use, clean the basket and grill, and run the appliance at the maximum temperature for 10 minutes to remove manufacturing residues. Always ensure there is 10cm of free space around the unit for proper ventilation.

Safety precautions

• Do not touch the fryer body during use; use handles and knobs.
• Keep the appliance and cord out of reach of children under 8 years.
• Never immerse the air fryer, cord, or plug in water or liquid.
• Do not place the appliance against a wall or cover air vents.
• Do not put oil in the basket drawer.
• Always unplug after use and allow to cool for 30 minutes before cleaning.

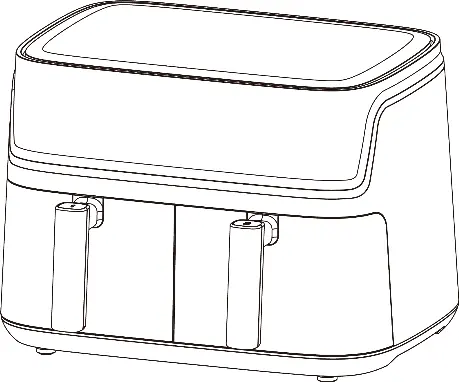

Product overview

The unit features a dual-drawer system with a digital control panel. Key components include the main body, two frying baskets with handles, and removable grill plates for each basket.

First use

Place the unit on a stable, heat-resistant surface. Wash the frying baskets and grills in warm soapy water. Wipe the interior of the air fryer with a soft, damp cloth. Ensure all parts are completely dry before reassembly.

Operation

Connect the power plug to the mains. Press the On/Off button to activate the control panel. Select the desired basket (1 or 2), then use the Menu button to select a preset or manually adjust temperature and time using the +/- buttons. Press Start/Pause to begin cooking. The unit features a shake reminder for certain presets; pull out the basket to shake, then reinsert to continue.

Additional functions

• Keep Warm: Press the Keep Warm button to maintain food temperature (65°C for 15 minutes).
• Match Function: Press the 1=2 button to synchronize settings for both baskets.
• Sync End: Press the Sync End button to ensure both baskets finish cooking at the same time.
• Delay Function: Press the Delay button to set a start delay between 10 and 900 minutes.

Cleaning and maintenance

The frying baskets and grills are dishwasher safe, or they can be washed in warm soapy water. Wipe the outside of the air fryer with a soft damp cloth. Never use abrasive cleaning agents. Ensure the basket is fully dried before placing it back into the unit.

Troubleshooting

If the product does not work, check the power connection. If food is undercooked, reduce the quantity or use smaller pieces. If white smoke appears, the food may be too greasy or there are fat residues from previous use. If the plug fuse needs replacing, use a 13 amp fuse only.
