Globo Lighting 15538H Aladdin Pendant Light

Installation and safety guide for the Globo Lighting 15538H Aladdin pendant light, including wiring instructions and technical specifications.

Table of contents

Product Overview

The Globo Lighting 15538H Aladdin is a stylish pendant light fixture designed for indoor ceiling installation. It provides elegant illumination and is compatible with standard E27 light bulbs.

Technical Specifications

  • Model: 15538H
  • Voltage: 230V~ 50Hz
  • Socket Type: E27
  • Maximum Wattage: 1x 40W

Safety Instructions

Before beginning any installation work, ensure that the power supply is completely disconnected at the main circuit breaker. Failure to turn off the electricity can result in serious injury or death. This product must be installed by a qualified professional in accordance with local electrical regulations.

Installation Steps

Follow these steps to install your pendant light safely:

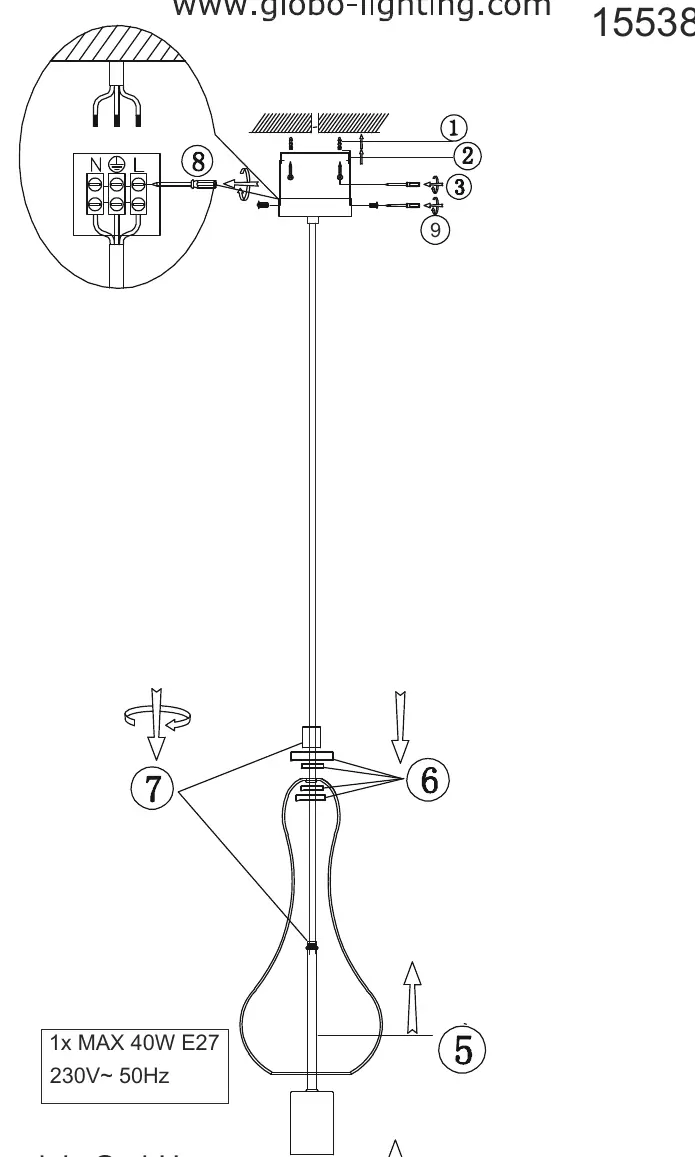

Installation diagram for the 15538H pendant light
Installation diagram for the 15538H pendant light
  • Ensure the power is switched off at the mains.
  • Secure the mounting bracket to the ceiling using appropriate hardware.
  • Connect the electrical wires from the ceiling to the terminal block on the fixture, ensuring correct polarity (L for Live, N for Neutral, and the Earth symbol for Ground).
  • Attach the fixture housing to the mounting bracket.
  • Install the glass shade or decorative elements as indicated in the assembly diagram.
  • Insert the E27 light bulb into the socket.
  • Restore power at the circuit breaker and test the light.

Maintenance and Care

To keep your pendant light in optimal condition, clean the surface regularly with a soft, dry cloth. Do not use abrasive cleaners or chemicals that may damage the finish. Always ensure the light is switched off and has cooled down completely before cleaning or replacing the bulb.

Troubleshooting

If the light fails to turn on, first check the bulb to ensure it is screwed in correctly and is not burnt out. Verify that the circuit breaker has not tripped and that all electrical connections are secure. If the issue persists, consult a certified electrician.
