GLOBO Lighting 15647S Carter Pendant Light

Product Overview

The GLOBO Lighting 15647S/15647W is a modern pendant light fixture featuring integrated LED technology. It is designed for indoor use and operates on a standard 220-240V 50/60Hz power supply with a maximum power consumption of 24W.

Installation

Before beginning installation, ensure the main power supply is switched off at the circuit breaker. Follow these steps for a secure installation:

• Mount the ceiling bracket using the provided screws and anchors.
• Connect the electrical wires according to local safety regulations (L for Live, N for Neutral).
• Secure the fixture housing to the ceiling bracket.
• Adjust the suspension height as needed before final tightening.
• Restore power at the circuit breaker once installation is complete.

Operation and Control

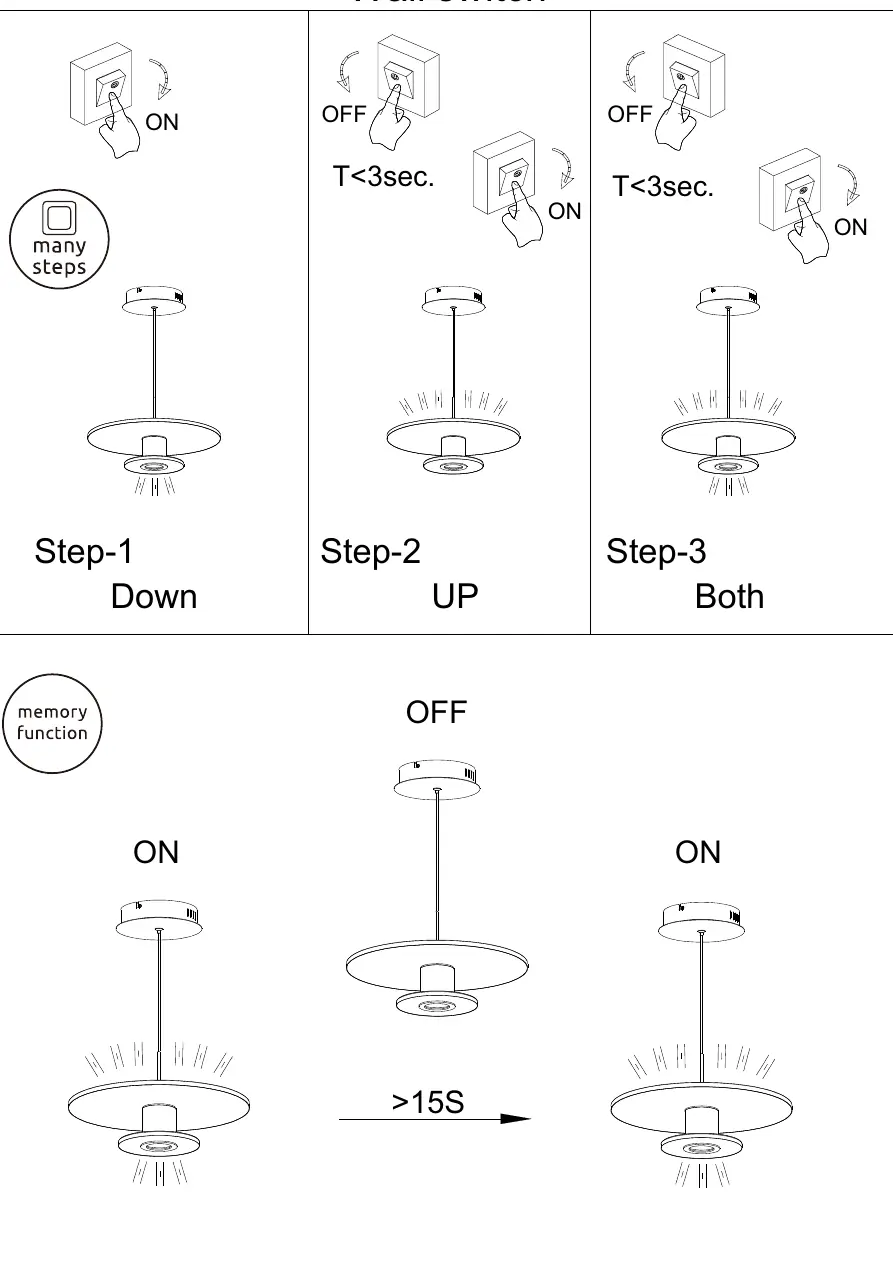

The pendant light is controlled via a standard wall switch, allowing for different lighting modes through specific switching sequences:

• Step 1: Switch on to activate the downward light.
• Step 2: Switch off and on within 3 seconds to activate the upward light.
• Step 3: Switch off and on within 3 seconds again to activate both light sources simultaneously.
• Memory Function: The light remembers the last setting if it remains off for more than 15 seconds.

Maintenance and Safety

The integrated LED light source is fixed and cannot be replaced by the user. The control gear is also non-user-serviceable and should only be replaced by a qualified professional. Do not attempt to modify the fixture or replace the LED components, as this will void the warranty and may pose a safety risk.
