GLOBO Lighting 15767H1 Colly Pendant Lamp Installation Guide

Product Overview

The GLOBO Lighting 15767H1 Colly is a stylish pendant lamp designed for indoor residential use. This fixture is engineered for efficiency and must be used exclusively with LED light sources to ensure optimal performance and safety.

Safety Precautions

Before beginning any installation work, it is critical to ensure that the power supply is completely disconnected. Switch off the circuit breaker or remove the fuse to prevent accidental electrical shock. Installation should only be performed by a qualified individual familiar with electrical wiring standards. If you are unsure about any part of the installation process, consult a professional electrician.

Installation Instructions

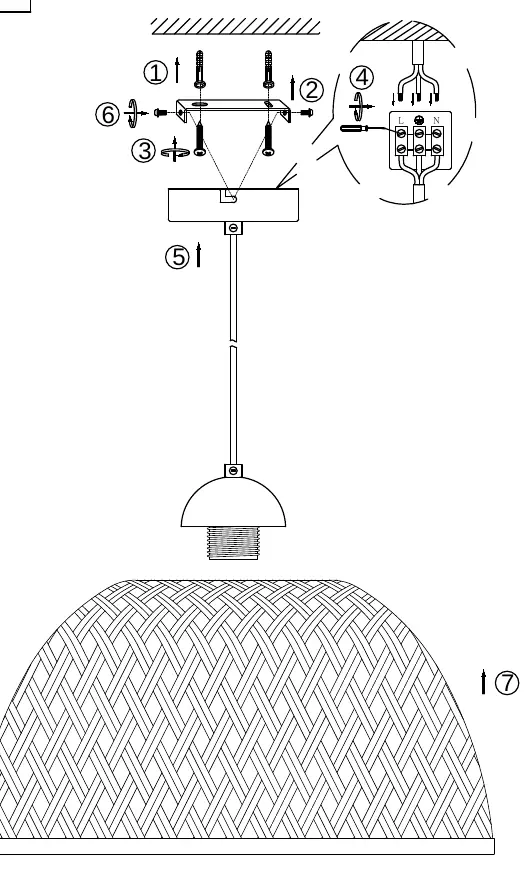

Follow these steps to safely install your pendant lamp:

• Preparation: Ensure the power is turned off at the main distribution board.
• Mounting: Secure the mounting bracket to the ceiling using appropriate screws and anchors suitable for your ceiling material.
• Wiring: Connect the house supply wires to the terminal block on the fixture. Ensure the Live (L) and Neutral (N) wires are correctly matched to the corresponding terminals. Verify that all connections are tight and no loose strands are exposed.
• Assembly: Attach the canopy to the mounting bracket using the provided screws. Secure the lamp shade to the fixture body.
• Bulb Installation: Insert a compatible LED bulb into the socket. Ensure it is screwed in firmly but do not overtighten.
• Completion: Once the fixture is fully assembled and secured, restore power at the circuit breaker and test the light.

Maintenance and Care

To keep your pendant lamp in excellent condition, clean the exterior surfaces periodically with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish of the fixture. Always ensure the lamp is switched off and has cooled down completely before cleaning or replacing the light bulb.

Troubleshooting

If the lamp fails to illuminate after installation, check the following:

• Verify that the power is switched on at the circuit breaker.
• Ensure the LED bulb is properly seated in the socket.
• Check that all electrical connections at the terminal block are secure and correctly wired.
• If the issue persists, replace the LED bulb with a known working unit to rule out a faulty bulb.

Disposal

When the fixture reaches the end of its service life, do not dispose of it with regular household waste. Please follow local regulations regarding the disposal of electrical and electronic equipment to ensure environmentally responsible recycling.
