Hansgrohe Metropol S Single Lever Basin Mixer

Product Overview

The Hansgrohe Metropol S is a high-quality single lever basin mixer designed for modern bathrooms. It is engineered for durability and efficient water usage, featuring integrated EcoSmart technology to limit water flow without compromising performance.

Safety Information

• Wear gloves during installation to prevent crushing and cutting injuries.
• The product is intended for bathing, hygienic, and body cleansing purposes only.
• Large pressure differences between hot and cold water supplies must be balanced.

Technical Data

• Operating pressure: max. 1 MPa
• Recommended operating pressure: 0.1 – 0.5 MPa
• Test pressure: 1.6 MPa
• Hot water temperature: max. 80°C
• Recommended hot water temperature: 65°C
• Flow pressure: Minimum 0.15 MPa required for use with hydraulic or thermal continuous flow heaters.

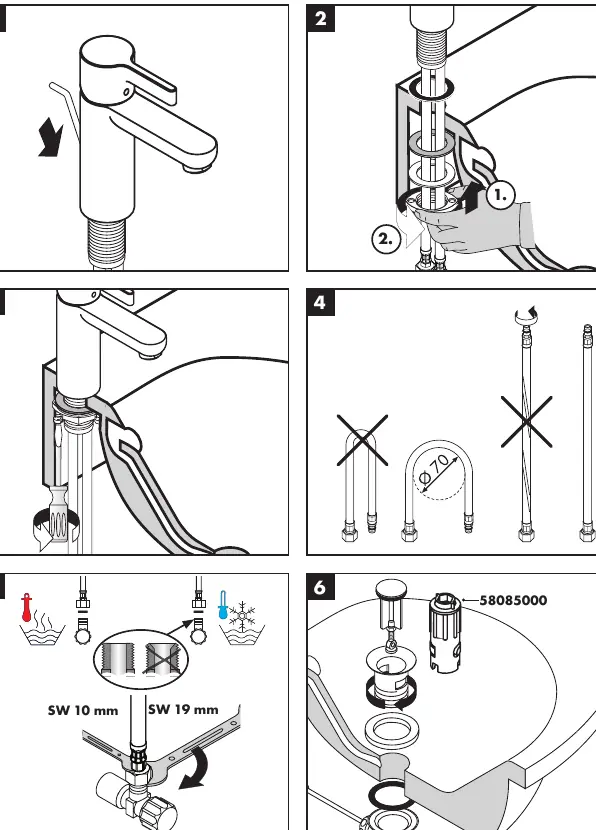

Installation and Operation

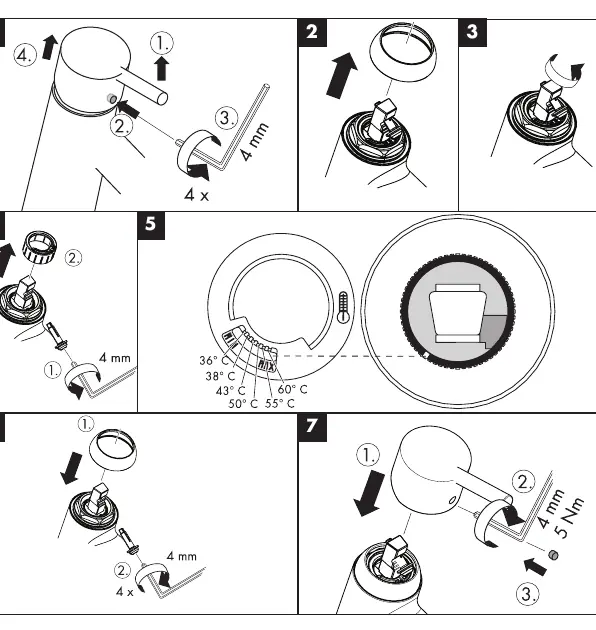

The fitting must be installed, flushed, and tested according to valid norms. If you experience issues with a continuous flow heater or desire higher water flow, the EcoSmart flow limiter located behind the aerator can be removed. The mixer features a hot water limiter that can be adjusted to prevent scalding. No adjustment is necessary when using a continuous flow water heater.

Maintenance and Care

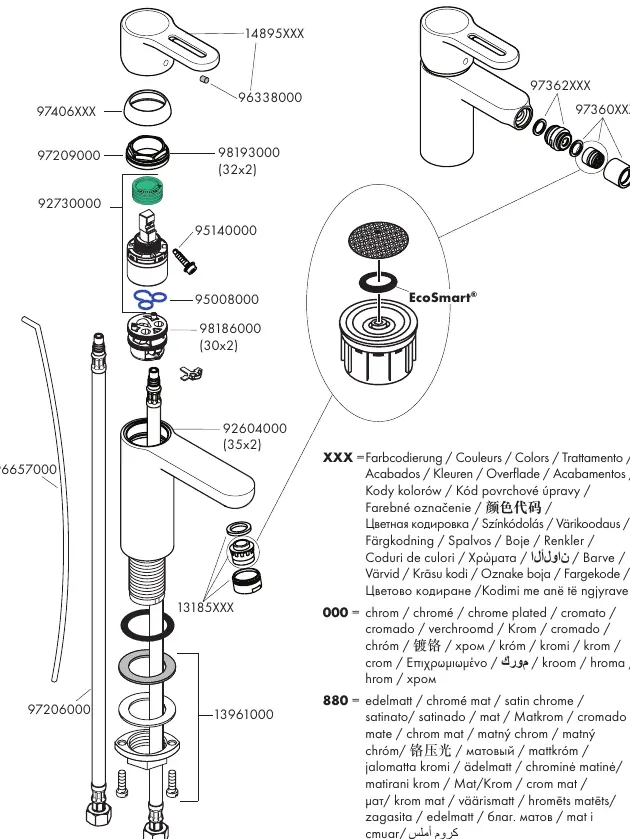

Clean the mixer regularly using the recommended methods provided in the cleaning brochure. Do not use cleaning agents containing acetic acid or abrasive materials. If the water flow decreases, check the aerator for limescale buildup. Spare parts are available to ensure the longevity of the product.

Disposal

Dispose of the product and its components in accordance with local environmental regulations.
