Hansgrohe Talis S2 Variarc Kitchen Mixer User Manual

Product Overview

The Hansgrohe Talis S2 Variarc is a high-quality kitchen mixer designed for efficiency and durability. It is compatible with both hydraulically and thermally controlled continuous flow heaters, provided the flow pressure is at least 0.15 MPa.

Safety Instructions

• Wear gloves during installation to prevent crushing and cutting injuries.
• Large pressure differences between hot and cold water supplies must be balanced.
• Only dishwashers and washing machines with the DVGW emblem may be connected to the appliance connection valve without additional fuses. If no appliance is connected, the valve must be plugged.
• Do not use silicone containing acetic acid.

Technical Data

• Operating pressure: max. 1 MPa
• Recommended operating pressure: 0.1 - 0.5 MPa
• Test pressure: 1.6 MPa
• Hot water temperature: max. 80°C
• Recommended hot water temperature: 65°C
• Flow rate at 0.3 MPa: 10 l/min

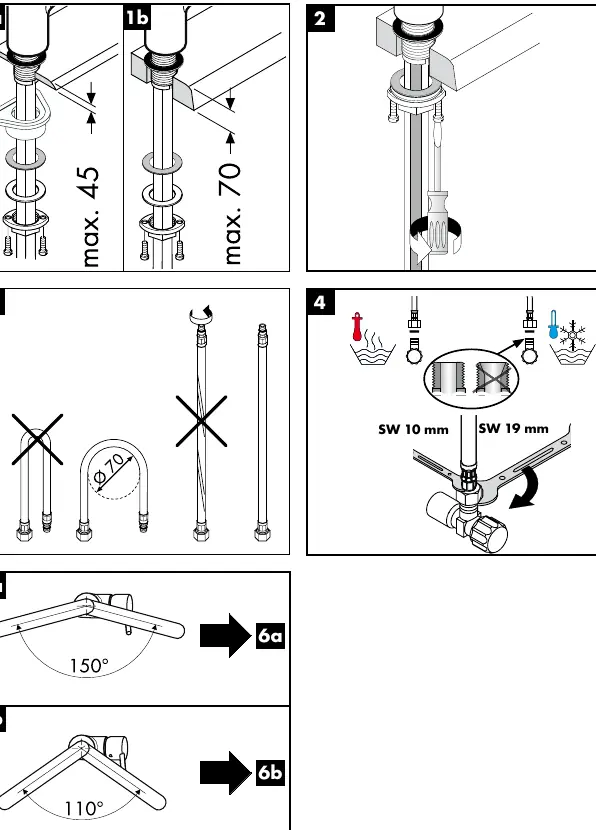

Installation and Operation

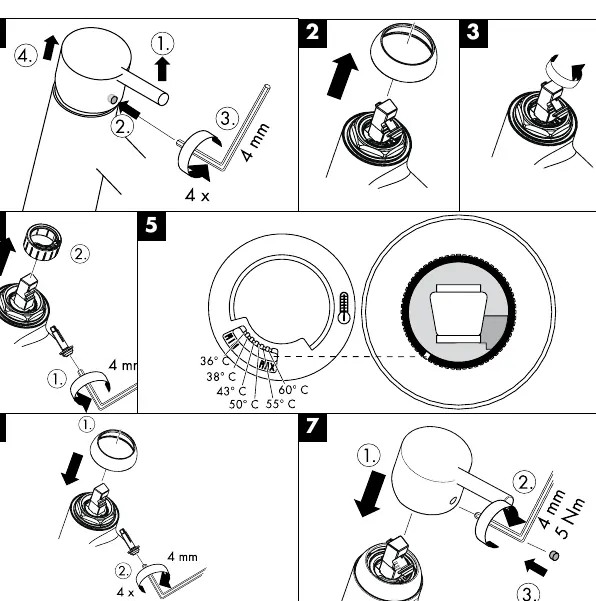

The fitting must be installed, flushed, and tested according to valid norms. The mixer features a hot water limiter, which can be adjusted to suit specific needs. Note that when using a continuous flow water heater, the hot water limiter is generally not required. Detailed adjustment instructions are provided in the manual.

Maintenance and Cleaning

Regular cleaning is essential to maintain the finish and functionality of the mixer. Please refer to the enclosed cleaning brochure for specific care instructions. If parts need replacement, use only original Hansgrohe spare parts.
