Hansgrohe Talis S2 Variarc Kitchen Mixer Tap

Product Overview

The Hansgrohe Talis S2 Variarc is a high-quality kitchen mixer tap designed for efficiency and ease of use. It features a single-lever design with an integrated hot water limiter, making it suitable for use with various water heating systems.

Technical Data

• Operating pressure: max. 1 MPa
• Recommended operating pressure: 0.1 - 0.5 MPa
• Test pressure: 1.6 MPa
• Hot water temperature: max. 80°C
• Recommended hot water temperature: 65°C
• Flow rate at 0.3 MPa: 11 l/min (handspray), 9 l/min (aerator)

The mixer is equipped with an anti-pollution function and can be used with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0.15 MPa.

Safety Notes

During installation, gloves must be worn to prevent crushing and cutting injuries. Significant pressure differences between hot and cold water supplies must be balanced.

Installation and Operation

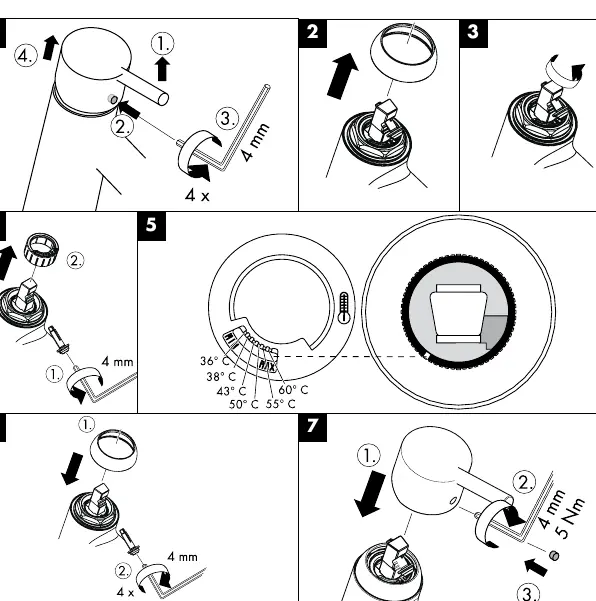

The fitting must be installed, flushed, and tested according to valid norms. Do not use silicone containing acetic acid during installation. The hot water limiter can be adjusted to suit specific requirements. The tap is operated via a single lever for temperature and flow control.

Maintenance and Cleaning

Regular maintenance is required to ensure the longevity of the product. Non-return valves must be checked regularly according to DIN EN 1717 and national/regional regulations (at least once a year). The QuickClean function allows for easy removal of limescale by rubbing the spray channels. If water flow drops, clean the filter located between the hose and the handspray.
