HINKLEY Edgewater LED Wall Mount 1670OZ

Product Overview

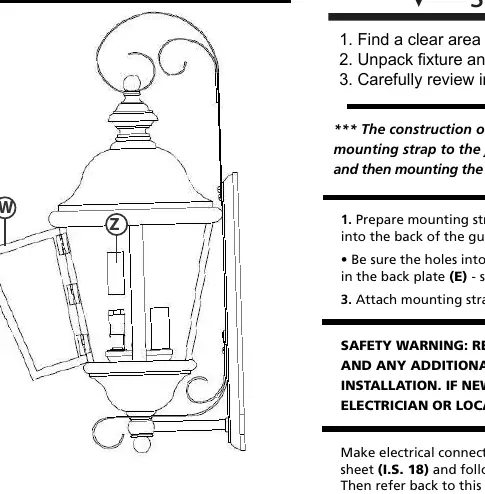

The Hinkley Edgewater LED Wall Mount (1670OZ) is a classic outdoor lighting fixture designed for wall installation. It features a robust construction with a side door (W) that can be opened for easy re-lamping and candle sleeves (Z) that slide over the sockets for a polished look.

Installation and Mounting

Installation should be performed by a qualified electrician. Ensure the power supply is turned off before beginning.

• Prepare the mounting strap (A) by threading the 1 1/4-inch mounting screws (B) into the gull wing bracket.
• Attach the mounting strap to the junction box (J) using the provided 1-inch screws (C).
• Align the holes (D) in the backplate (E) with the screws (B) on the mounting strap and secure the fixture to the wall using the ball knobs (F).

Electrical Connections

Follow standard wiring procedures for outdoor fixtures:

• Connect the positive supply wire (typically black or smooth) to the positive fixture lead (B) using an appropriately sized twist-on connector.
• Connect the negative supply wire (typically white or ribbed) to the negative fixture lead (D).
• Ensure all ground wires (E) are properly connected to the building's grounding system or the mounting strap (M) using the ground screw (S).

Weatherproofing and Maintenance

To prevent water ingress, it is essential to seal the fixture properly:

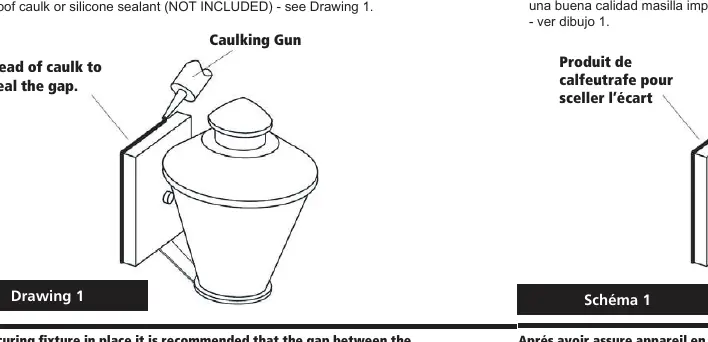

• After securing the fixture to the wall, use a high-quality waterproof caulk or silicone sealant to seal the gap between the wall and the backplate on the top and both sides.
• Apply a small bead of sealant under the ball knobs used to mount the fixture.
• Cover the open ends of wire connectors with silicone sealant to form a watertight seal.

Safety and Troubleshooting

Always consult local building codes before installation. If you encounter issues with the fixture, verify that all electrical connections are secure and that the supply power is active. If the fixture fails to operate, ensure the lamps are correctly seated in the sockets and that the side door is properly closed.
