User Manual for Homcom Apollo 18C Electric Fireplace Insert
Quick guide for the Homcom Apollo 18C electric fireplace insert, covering installation, safety precautions, operation, maintenance, and troubleshooting steps.
Table of contents
Quick guide from the manual
This document provides essential instructions for the safe installation and operation of the Homcom Apollo 18C electric fireplace insert. Always ensure the unit is plugged into a properly grounded 120V outlet. Keep combustible materials like furniture, curtains, and bedding at least 3 feet (0.9m) away from the front, sides, and rear of the unit. Never use an extension cord or power strip.

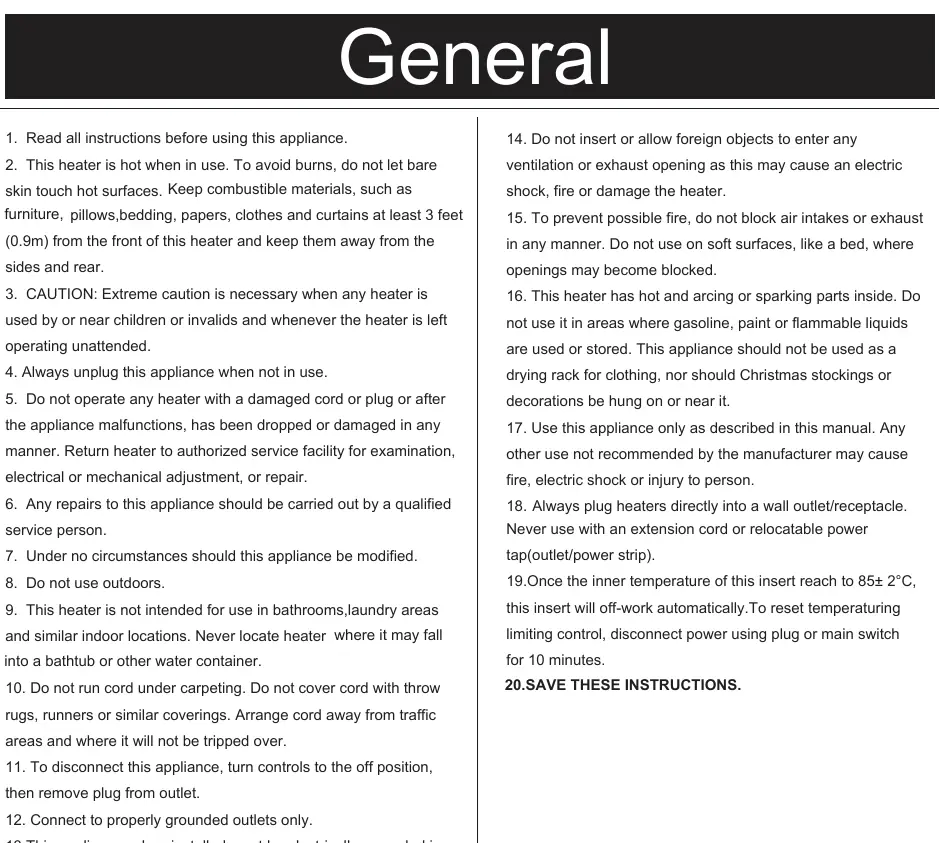

Safety information
- Do not use the heater in bathrooms, laundry areas, or near water.
- Always unplug the unit when not in use.
- Do not block air intakes or exhaust vents.
- The unit features an automatic thermal cutoff at 85± 2°C. If triggered, unplug the unit or turn off the main switch for 10 minutes to reset.
- Repairs must be performed by a qualified service agency.
Assembly instructions
The fireplace insert requires basic assembly of metal trims before installation into a fireplace mantel.
- Attach the metal trims (AA and BB) to the fireplace insert using the provided screws (DD).
- Secure the insert into the mantel using the provided screws (CC).
Operation
The unit features two main controls located on the top right of the fireplace:
- Power: Turns the unit on to standby mode and activates the flame effect.
- Heater: Activates the heater and blower.
Maintenance
Periodic cleaning of the fan/heater unit is recommended. Ensure the unit is turned off and unplugged before cleaning. Use a damp cloth for the exterior; do not use abrasive cleaners. Vacuum the vents periodically to prevent dust buildup.
Troubleshooting
If the unit fails to operate, ensure it is plugged into a 120V outlet. If the heater does not work, turn all switches to OFF, unplug for 10 minutes, then plug back in. If the flame effect is not visible, check that the internal spinner is correctly mounted and the motor is functioning.
Manufacturer information
HOMCOM
Practical help
Common problems
No power
Check that the unit is plugged into a standard 120V outlet.
Heater does not work
Turn all switches to OFF, unplug the unit for 10 minutes, then plug back in.
Flame effect not visible
Check if the internal spinner is correctly mounted at the rear of the unit and the motor is functioning.
Unusual noise
Ensure the screws attaching the flame motor are tightened.
Before use
- Ensure the unit is installed on the floor in an indoor location.
- Keep combustible materials at least 3 feet (0.9m) away.
- Verify the outlet is properly grounded.
- Ensure the unit is plugged directly into a wall outlet (no extension cords).
- Check that vents are free of dust and debris.
Images and diagrams
- The control panel features two switches: one for main power and one for the heater/blower.
- The grounding plug must be inserted into a properly grounded 3-prong outlet box.
- The exploded view identifies the heater/blower assembly, flame generator, and circuit board for service reference.
Model compatibility
- Designed for 120V circuits only.
- Must be installed in a fixed location; not intended as a portable heater.
- Not for use in bathrooms or laundry areas.
