Instruction Manual for Horizon Hobby Fw 190A 1.5m Smart Basic Airplane
Comprehensive user guide for the Horizon Hobby Fw 190A 1.5m Smart Basic RC airplane. Includes assembly instructions, transmitter setup, SAFE Select and AS3X technology configuration, flight preparation, maintenance, and troubleshooting.
Table of contents
Quick guide from the manual
This document provides essential instructions for the assembly, setup, and operation of the Fw 190A 1.5m RC airplane. Key procedures include transmitter configuration, binding the receiver, and performing pre-flight checks. The model features SAFE Select and AS3X technologies, which require specific transmitter settings for optimal performance. Always ensure the battery is fully charged and the center of gravity (CG) is correctly balanced before flight.
Assembly
The model requires mechanical assembly of the horizontal stabilizer, main wing, landing gear, and propeller. Refer to the provided screw table for correct hardware sizes. Ensure all linkages move freely and are centered before the first flight.
Transmitter Setup
The transmitter must be programmed for an Acro model. Specific settings for dual rates, exponential, and flap-to-elevator mixing are provided in the manual. After programming, the transmitter must be bound to the receiver to save failsafe positions.
SAFE Select and AS3X Technology
The model is equipped with AS3X for stability and optional SAFE Select for flight envelope protection. SAFE Select can be enabled or disabled during the binding process. A switch can be assigned to toggle between modes if desired.
Flight Preparation and Operation
Before flying, perform a range test and verify control directions. The recommended flight timer for the 5000mAh 6S battery is 3 minutes for the first flight. Always land immediately if the motor pulses, indicating the Low Voltage Cutoff (LVC) has been triggered.
Maintenance and Troubleshooting
Regular maintenance includes checking for loose components, ensuring the propeller is balanced, and keeping the receiver secure. If the model exhibits inconsistent flight performance or vibrations, refer to the troubleshooting guide for common causes such as incorrect trim settings or damaged components.
Contact Information
For technical support, contact Horizon Hobby via email at [email protected] or by phone at +49 (0) 4121 2655 100.
Manufacturer information
Horizon Hobby, LLC
Practical help
Common problems
Model does not respond to throttle but responds to other controls
Ensure throttle is at idle, trim is low, and the ESC is properly connected.
Excessive vibration or noise
Check for damaged propeller/spinner, ensure propeller is balanced, and tighten all motor mount screws.
Model fails to bind to transmitter
Ensure the transmitter is not too close to the receiver during binding and that the bind plug is correctly inserted.
Motor pulses and loses power
The battery voltage is low; land immediately and recharge or replace the battery.
Before use
- Check that all linkages and control surfaces move freely.
- Verify the center of gravity (CG) is 105-120mm from the leading edge.
- Ensure the battery is fully charged and securely mounted.
- Perform a control direction test.
- Perform an AS3X control test.
- Ensure the transmitter is programmed with the recommended settings.
Specs in practice
- Center of Gravity (CG)
- 105-120mm from the inner cannon mount on the leading edge; critical for stable flight.
Images and diagrams

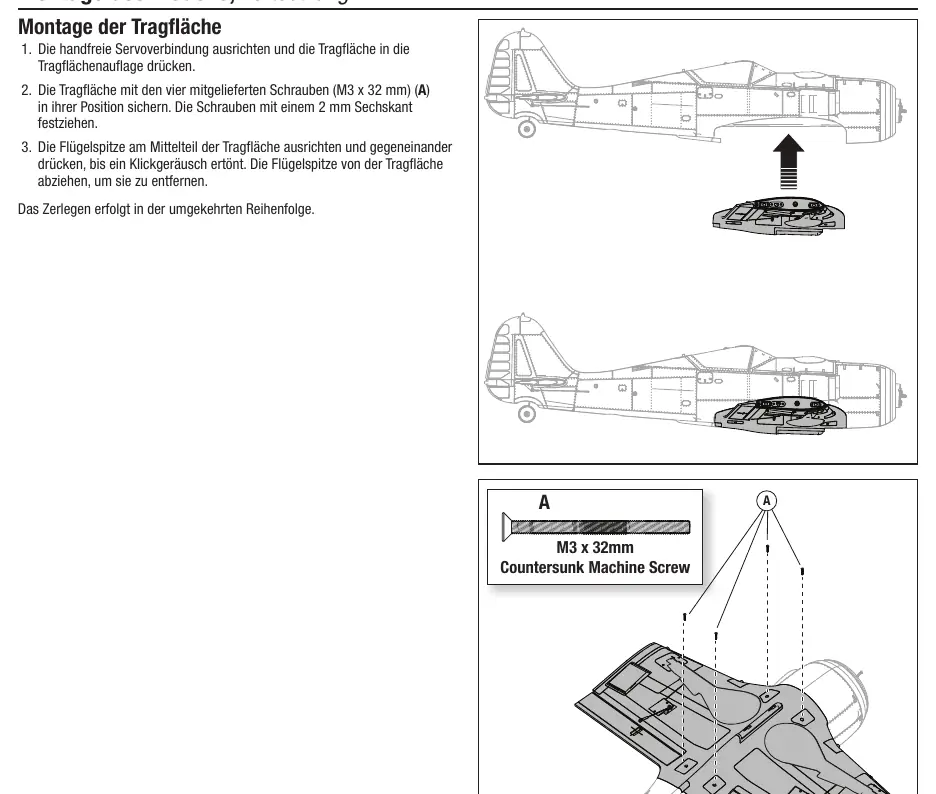

- Assembly diagrams show the correct orientation of the horizontal stabilizer and wing attachment.
- The receiver connection table (AR637T) identifies port assignments for each control surface.
- The AS3X test diagram illustrates the expected movement of control surfaces when the model is tilted.
Model compatibility
- Requires a 6-channel transmitter with Spektrum DSM2/DSMX technology.
- Compatible with Spektrum Smart Technology for telemetry data.
