Husqvarna 110iL Battery Trimmer User Manual
User manual for the Husqvarna 110iL battery-powered lawn trimmer and edge trimmer, covering safety, assembly, operation, maintenance, and troubleshooting.
Table of contents
Product Overview
The Husqvarna 110iL is a battery-powered lawn trimmer and edge trimmer equipped with an electric motor. It is designed for grass trimming, clearing, and lawn edging. The product features a trimmer head, a shaft with a coupling for easy storage, a loop handle, and a keypad for operation. It is powered by Husqvarna BLi or 40-B series batteries.
Safety Information
WARNING: This product can be dangerous and cause serious injury or death. Read the operator's manual carefully before use. Always wear eye protection, hearing protection, and sturdy, long-sleeved clothing with long pants. Keep bystanders at least 15 meters away during operation. Always remove the battery before performing any maintenance or assembly to prevent accidental starting.
Operation
To start the product, press and hold the start/stop button until the green LED lights up, then press the power trigger lockout and the power trigger. The product features an automatic shutdown function that stops the unit after 180 seconds of inactivity. For edging, the trimmer head can be rotated 90 degrees by pressing the twist and edge button.
Maintenance
Regular maintenance is essential for safety and performance. Before each use, clean the product with a soft brush or dry cloth—do not use water. Check that the trimmer head and guard are not damaged or cracked. Ensure all nuts and screws are tight. Keep air ventilation holes clear of debris. If the keypad LED flashes, refer to the troubleshooting section for error codes.
Troubleshooting
The keypad and battery display provide diagnostic information. If the LED flashes continuously, the battery voltage is low. Other flashing patterns indicate overcurrent, temperature deviations, or logical errors. If the battery or charger shows error lights, consult the troubleshooting tables in the manual or contact your servicing dealer.
Manufacturer information
Husqvarna
Practical help
Common problems
The product does not start.
Press the power trigger and the start button at the same time.
LED flashes continuously.
Low voltage. Charge the battery.
LED flashes 3 times.
Overcurrent. Release the power trigger and start the product again.
LED flashes 5 times.
Temperature deviation. Let the product cool down.
LED flashes 7 times.
Logical error. Release the power trigger and start the product again.
Before use
- Remove the battery to prevent accidental starting.
- Inspect the work area for loose objects like stones or wire.
- Check the motor for dirt and cracks.
- Ensure the trimmer head is securely attached.
- Verify the product is in perfect working order.
- Check that all nuts and screws are tight.
- Ensure the trimmer head and guard are not damaged.
Specs in practice
- Speed of output shaft
- 6500 rpm
- Cutting width
- 300 mm
- Weight without battery
- 3.2 kg
- Sound power level (guaranteed)
- 92 dB(A)
Images and diagrams

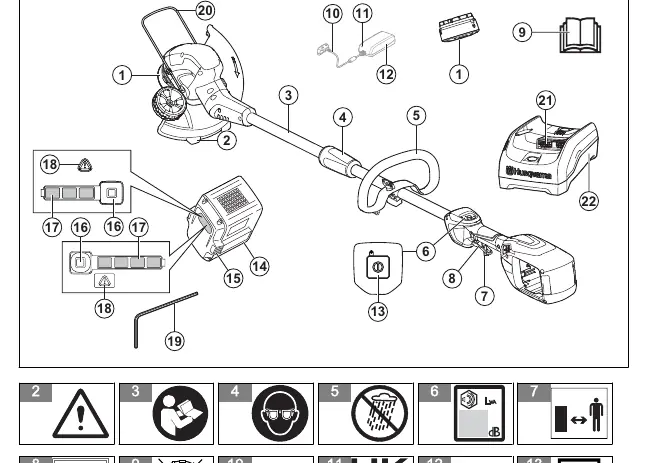

- Fig. 1: Product overview showing all components like the trimmer head, shaft, handle, and battery.
- Fig. 38: Battery status display explanation.
- Fig. 47: How to rotate the trimmer head for edging.
- Fig. 51: How to remove and replace the trimmer head.
Model compatibility
- Use only BLi series and 40-B series batteries.
- Use only QC80 and 40-C80 battery chargers.
- Use only recommended trimmer heads and trimmer lines (A15B M5/M6).
