Operator's Manual for Husqvarna S 138i & S 138C Lawn Aerator/Verticutter
Quick guide for the Husqvarna S 138i (battery-powered) and S 138C (corded) lawn aerators. Includes product overviews, component identification, and essential operating instructions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides the operator's manual for the Husqvarna S 138i (battery-powered) and S 138C (corded) lawn aerators. It covers the identification of components, safety features, and basic product setup. Always ensure the safety key (for S 138i) is removed or the power cord is disconnected before performing any maintenance or adjustments.

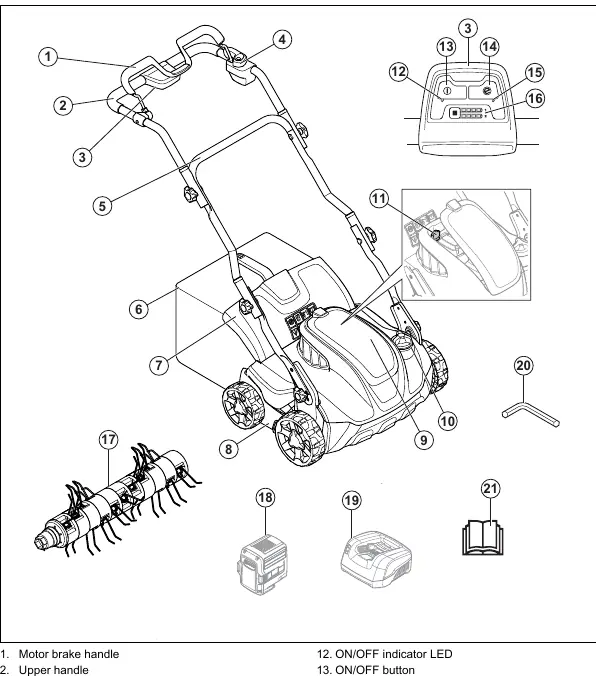

Product overview of model S 138i
The S 138i is a battery-operated unit. Key components include:
- Motor brake handle: Used to start and stop the motor.
- Control panel: Features the ON/OFF button, SavE mode button, and battery charge indicators.
- Safety key: Must be inserted to operate the unit.
- Adjustment knob: Controls the working depth of the spring tines.
- Battery compartment: Located under the battery lid.

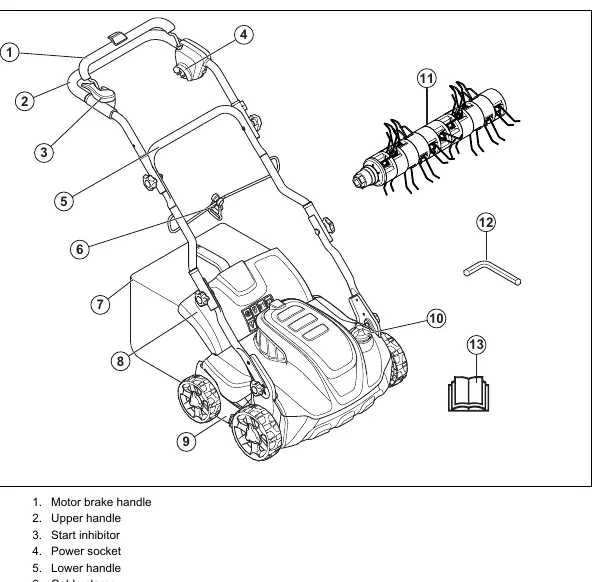

Product overview of model S 138C
The S 138C is a corded electric unit. Key components include:
- Power socket: Connection point for the power cable.
- Cable clamp: Used to secure the power cord during operation.
- Motor brake handle: Used to start and stop the motor.
- Adjustment knob: Controls the working depth of the spring tines.
Operation and safety
Before starting, ensure the grass catcher is properly attached if you intend to collect debris. The start inhibitor must be engaged to prevent accidental starting. Always adjust the working depth using the adjustment knob to suit the condition of your lawn. For the S 138i, use the SavE button to optimize battery life during lighter tasks.
Maintenance
Regularly inspect the spring tines for wear or damage. Use the provided hex key for adjustments and maintenance tasks. Ensure the unit is kept clean and free of debris after each use to maintain optimal performance.
Manufacturer information
Husqvarna
Practical help
Common problems
Unit will not start (S 138i)
Ensure the safety key is fully inserted and the battery is charged.
Unit will not start (S 138C)
Check that the power cable is securely connected to the power socket and the power source.
Before use
- Check that the grass catcher is correctly mounted.
- Inspect the spring tines for damage.
- Ensure the work depth adjustment knob is set to the desired level.
- For S 138i: Verify battery charge level.
- For S 138C: Ensure the power cable is properly secured in the cable clamp.
Specs in practice
- Work depth adjustment
- Allows the user to set how deep the spring tines penetrate the soil.
Images and diagrams
- The product overview diagrams identify all external controls, including the motor brake handle, start inhibitor, and adjustment knobs.
- The control panel diagram for S 138i highlights the LED indicators for battery status and SavE mode.
Model compatibility
- S 138i is compatible with Husqvarna battery systems.
- S 138C requires a suitable outdoor power supply.
