Husqvarna 125B, 125BVX Blower User Manual
Quick guide for the Husqvarna 125B and 125BVX blower, covering assembly, operation, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential information for the safe and efficient operation of the Husqvarna 125B and 125BVX blowers. It covers assembly, fuel preparation, starting procedures, and routine maintenance.
Assembly
Follow the instructions to install the blower tube and nozzle. For vacuum models (125BVX), ensure the collection bag and vacuum tubes are correctly assembled and locked into place. Always turn off the engine before attaching or removing tubes.
Operation
The product uses a two-cycle engine requiring a 50:1 gasoline/oil mixture. Use fresh, unleaded gasoline with a minimum octane rating of 90 RON (87 AKI) and less than 10% ethanol. Mix fuel in a clean container and do not prepare more than a 30-day supply.
Starting the engine
- Fill the fuel tank with the correct mixture.
- Press the primer bulb 10 times.
- Set the choke to the FULL CHOKE (closed) position.
- Set the variable speed control fully counterclockwise.
- Hold the machine on the ground and pull the starter rope handle until the engine attempts to start (max 3 times).
- Move the choke to the 1/2 position and pull until the engine starts.
- Run for 10 seconds, then move the choke to the OFF CHOKE (open) position.
Maintenance
Regular maintenance is crucial for product longevity and safety. Perform daily checks on external surfaces, throttle function, stop switch, and air filter. Weekly maintenance includes checking the starter device, spark plug electrode gap (0.6 mm), and cleaning the impeller blades. Yearly maintenance involves a thorough inspection of the spark plug, fuel filter, and cooling system.
Safety
Always wear approved personal protective equipment, including hearing protection, eye protection, and a dust mask in dusty environments. Keep a safe distance of at least 15 meters from other people or animals. Do not operate the product if you are tired, ill, or under the influence of alcohol or drugs.
Manufacturer information
Husqvarna
Practical help
Common problems
Engine is low on power or hard to start
Examine the spark plug, ensure the air filter is clean, and check that the idle speed is correctly adjusted.
Engine stops during operation
Move the choke control to the closed position and repeat the starting steps.
Excessive vibration
Check the condition of the blower/vacuum tubes and ensure they are securely attached.
Before use
- Examine the product for missing, damaged, loose, or worn parts.
- Check the collection bag for damage and ensure the zipper is closed.
- Check all nuts, screws, and bolts for tightness.
- Examine the air filter.
- Check the throttle trigger for correct operation.
- Check the stop switch for correct operation.
- Examine the product for fuel leaks.
Specs in practice
- Cylinder displacement
- 28 cm³ for both models.
- Electrode gap
- 0.6 mm.
Images and diagrams

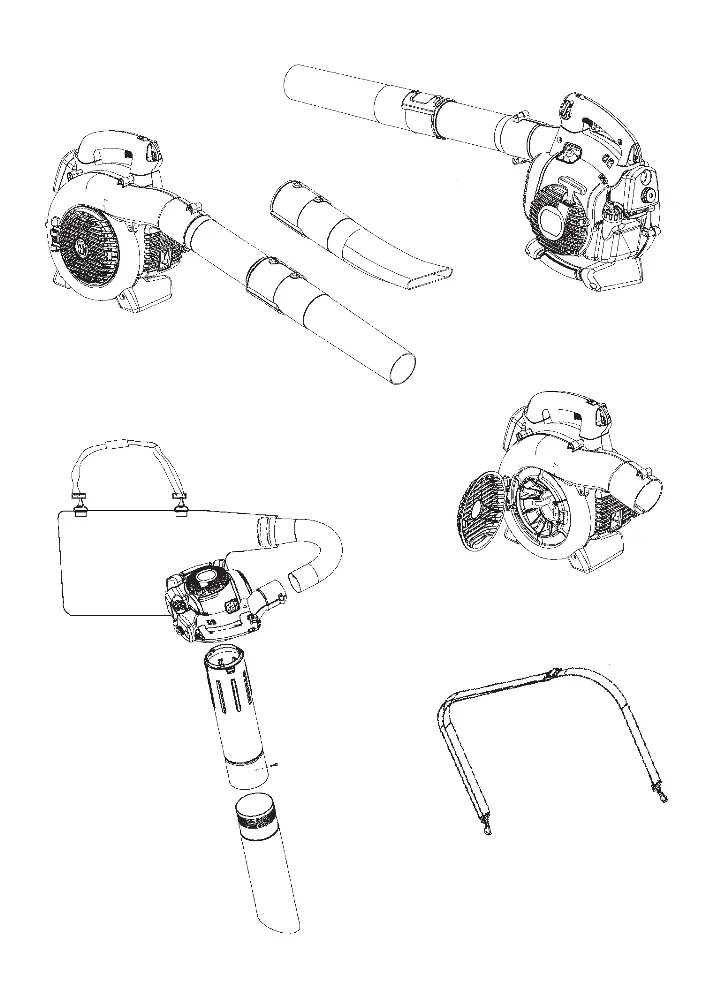

- Fig. 1: Overview of product components including throttle trigger, choke, primer bulb, and vacuum/blower tubes.
- Fig. 16: Stop switch operation.
- Fig. 17: Muffler and spark arrester screen location.
- Fig. 24-28: Starting sequence steps.
- Fig. 31: Idle speed adjustment screw (T).
Model compatibility
- 125B is a blower only.
- 125BVX includes vacuum capabilities and collection components.
- Optional accessories include a gutter clean-out kit and high velocity nozzle.
