Husqvarna LC 140P, LC 140SP Lawnmower Operator's Manual

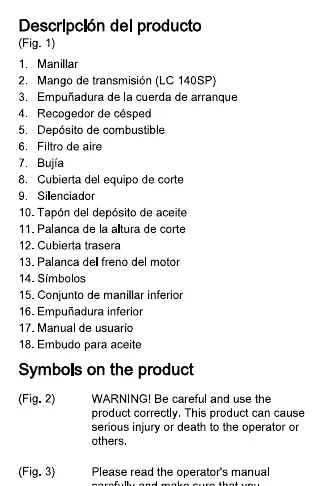

Product Overview

The Husqvarna LC 140P and LC 140SP are pedestrian-controlled lawnmowers designed for grass cutting. The LC 140SP model features a wheel drive system for easier operation. Both models are equipped with a 123cc 4-stroke engine and offer a cutting width of 400mm with adjustable cutting heights between 25-75mm.

Safety Instructions

General Safety: Always read the manual before use. Keep children and animals away from the work area. Remove objects like stones, sticks, and wires from the lawn before mowing. Do not operate the mower on slopes steeper than 15 degrees.

Operational Safety: Wear appropriate personal protective equipment, including sturdy shoes, long trousers, and hearing protection. Never leave the engine running unattended. Ensure the cutting blade is not hitting any objects and that the engine is stopped before performing any adjustments or maintenance.

Fuel Safety: Fuel is highly flammable. Always refuel outdoors, allow the engine to cool before refueling, and never smoke near the fuel tank. Ensure the fuel cap is tightened securely after refueling.

Assembly and Operation

Assembly: The handle must be assembled and locked into the working position. Ensure all cables are correctly routed and not overly tight. The grass catcher must be attached by securing the clips to the frame and hooking it onto the rear discharge channel.

Starting: Ensure the spark plug cable is connected. Hold the engine brake handle against the handlebar, pull the starter rope slowly until resistance is felt, then pull firmly to start the engine.

Operation: For the LC 140SP, engage the drive bail to move the mower forward. To stop the engine, release the engine brake handle.

Maintenance

Regular maintenance is essential for safe and efficient operation. Key tasks include:

• Daily: General inspection, check oil level, clean the mower, inspect the cutting equipment, and check the engine brake handle.
• Monthly: Inspect the muffler, clean the air filter, and clean the cylinder cooling fins.
• Seasonal: Change the engine oil, replace the spark plug, replace the air filter, and inspect the fuel system.

Always disconnect the spark plug cable before performing any maintenance on the cutting blade or engine to prevent accidental starting.

Troubleshooting

If the engine fails to start, check if the spark plug cable is connected, ensure the fuel tank is filled with fresh fuel, and verify that the air filter is clean. If the mower vibrates excessively, inspect the cutting blade for damage or imbalance. If the drive system on the LC 140SP is not engaging correctly, the clutch cable may require adjustment.

Disposal

Dispose of the product, including all chemicals and engine oil, at an authorized recycling facility in accordance with local environmental regulations.
