Hygger HG-955-AC Electric Vacuum Gravel Cleaner User Manual
Quick guide for the Hygger HG-955-AC electric gravel cleaner. Includes assembly instructions for sand washing and water changing, safety precautions, and troubleshooting tips.
Table of contents
Quick guide from the manual

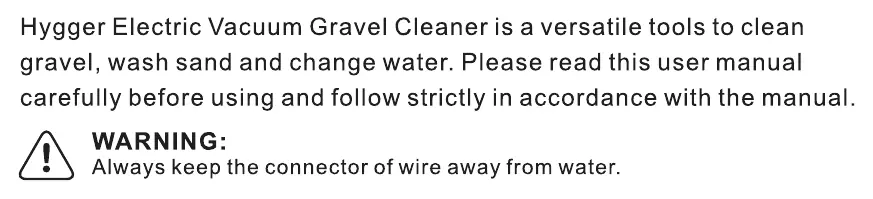

The Hygger HG-955-AC is a multi-functional aquarium tool designed for water changes, fish waste removal, and sand washing. It features an adjustable handle (29-103cm) and a powerful water pump. Important: Always keep the water pump fully submerged during operation and ensure the electrical connector is kept away from water.
Assembly and Operation
The device can be configured for different tasks by attaching specific heads:
- Debris vacuum: For absorbing fish waste.
- Brush head: For cleaning dirt into the filter.
- Sand washing head: For washing large gravel.
- Sand vacuum: For quick sand washing and debris separation.
- Intake strainer: Used during water changes to prevent gravel from entering the pump.
To assemble, screw the connector onto the water pump, attach the extension tubes, connect the three-way valve, and attach the filter housing. Finally, connect the handle and the chosen cleaning head. For water changes, connect the provided water pipe to the outlet.
Safety Precautions
- Do not run the pump dry; it must be fully submerged.
- Do not use in flammable or corrosive liquids.
- Operate only in water temperatures between 0°F and 45°F (approx. 0-7°C).
- Do not submerge more than 3ft deep.
- Always create a drip loop with the power cord to prevent water from reaching the outlet.
- Use only original Hygger adapters.
Maintenance
Regularly remove the filter housing to clean the internal sponge. The sponge can be replaced with standard aquarium filter pads if necessary.
Troubleshooting
If the pump stops working, check if it is connected to power, ensure the impeller is not blocked, and verify the pump is fully submerged. If the pump is noisy, clean the motor. If water flow is insufficient, check for a damaged impeller.
Contact Information
For support, contact [email protected] or visit www.hygger-online.com.
Official resources from the manual
Manufacturer information
Hygger Aquarium Inc
Practical help
Common problems
Pump stopped working
Check power connection, ensure pump is fully submerged, clean the motor, or replace the pump if damaged.
Excessive noise
Remove the motor, clean it thoroughly, or replace the motor if worn/broken.
Insufficient water flow
Inspect the impeller for damage and replace it if necessary.
Before use
- Ensure the water pump is fully submerged.
- Check that the power cord and plug are not damaged.
- Verify the water temperature is within the safe range (0-45°F).
- Create a drip loop for the power cable.
- Select the appropriate attachment for your specific task (sand washing vs. debris removal).
Images and diagrams
- The manual provides a detailed exploded view of the assembly sequence from the water pump up to the handle.
- Specific diagrams illustrate how to install the sponge pad onto the intake strainer for low water level operations.
- A visual guide shows the correct 'drip loop' configuration to prevent electrical hazards.
Model compatibility
- The HG-955-AC is designed for AC220V 50Hz power sources.
- Only use original Hygger cables and adapters; mixing with other brands may cause accidents.
- Suitable for both freshwater and saltwater aquariums.
