User Guide for Hyundai VC 020B, 020O Stick Vacuum Cleaner

Quick guide from the manual

This document provides essential instructions for the Hyundai VC 020B and 020O 2-in-1 stick vacuum cleaner. It covers safe operation, assembly, and maintenance procedures. Always ensure the device is unplugged before performing any maintenance or cleaning.

Assembly

To assemble the vacuum, carefully insert the floor nozzle into the vacuum's connection point. Ensure the device is placed near an electrical outlet, away from heat sources or wet areas.

Operation

The vacuum can be used as a stick vacuum or as a handheld unit. To use as a handheld vacuum, press the release button (P7) to detach the unit from the main body. Use the main switch to turn the device on and off.

Cleaning and Maintenance

Regular maintenance is crucial for optimal performance:

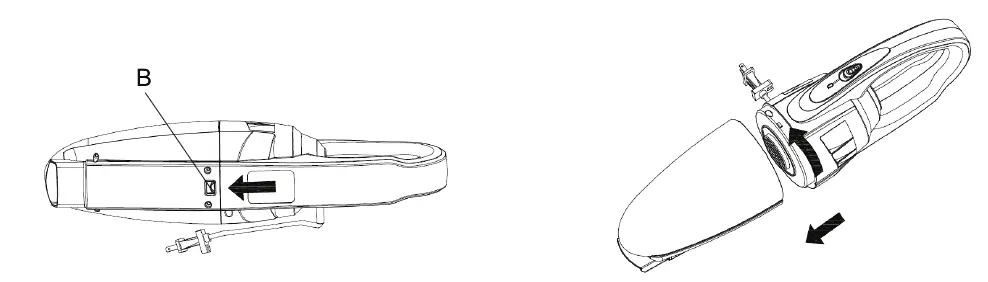

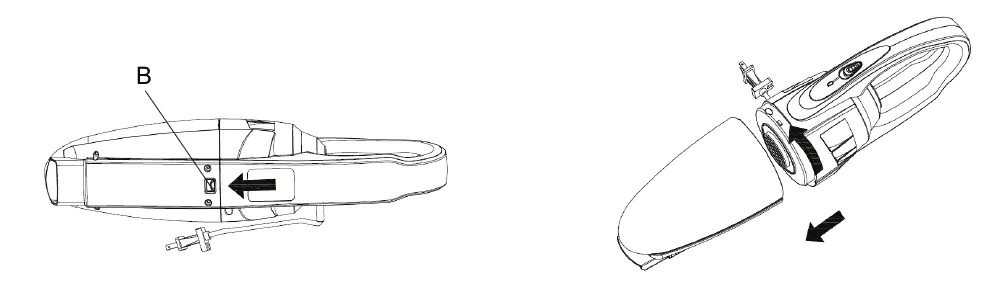

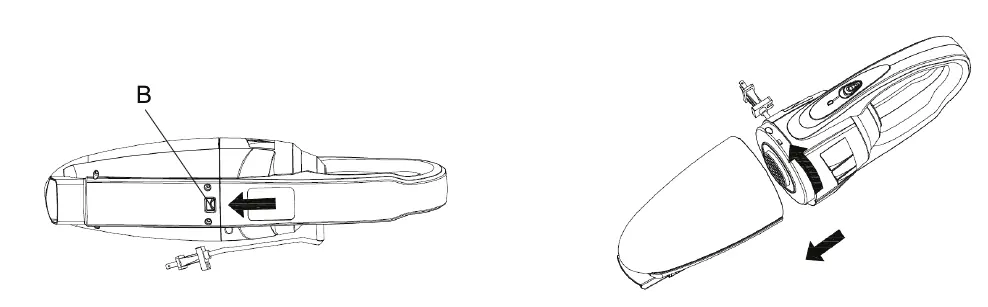

• Dust container and filter: Press the release button to remove the dust container. Empty the contents into a bin. The filter can be shaken or rinsed with warm water. Ensure all parts are completely dry before reassembling.
• Floor nozzle: If the nozzle becomes blocked, turn off the device and use scissors or a knife to remove entangled hair or threads.
• Wheel axles: If wheels are jammed, use a screwdriver to carefully pry them loose, remove debris, and press them back into place.

Safety Warnings

• Do not use the vacuum to pick up liquids, hot ashes, cigarette ends, or sharp objects like glass.
• Do not use the device if the suction power is weak; check if the dust container is full or the filter is clogged.
• Do not use the vacuum without the filter and dust container properly installed.
• Keep the power cord away from heat sources and sharp edges.
• The device is intended for household use only, not for commercial purposes.
