iBELL IBL VC 120YB Vacuum Cleaner Instruction Manual

Quick guide from the manual

The iBELL IBL VC 120YB is a wet and dry vacuum cleaner designed for versatile cleaning tasks. Before use, ensure your local power supply matches the specifications on the rating label. Always turn off and unplug the machine after use or before performing any maintenance.

Structure and parts

The unit consists of a waterproof switch, handle, top cover, barrel cap, plastic clips, plastic barrel, base with wheels, suction mouth, plastic hose, and plastic tubes. Accessories include various brushes and nozzles for different surfaces.

Assembly and installation

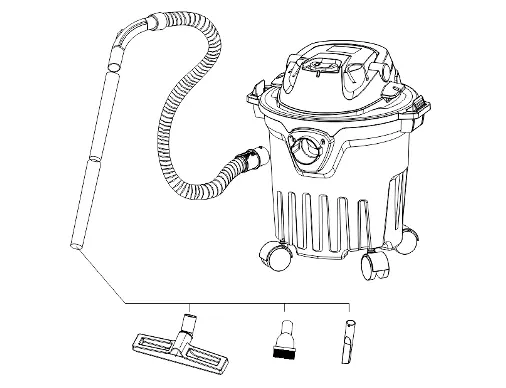

To assemble the base, attach the four wheel bases to the bottom of the plastic tank using the provided screws. Ensure they are tightly fastened for stability. To connect the hose, insert the hose connector into the air inlet mouth and twist to lock. To remove, press the connector button and pull.

Operation

Insert the plug into a power socket and press the switch to start. The switch is marked with I for on and 0 for off. You can adjust the airflow by pushing the sliding block on the handle up or down. For the blowing function, insert the hose connector into the blowing mouth.

Filters and maintenance

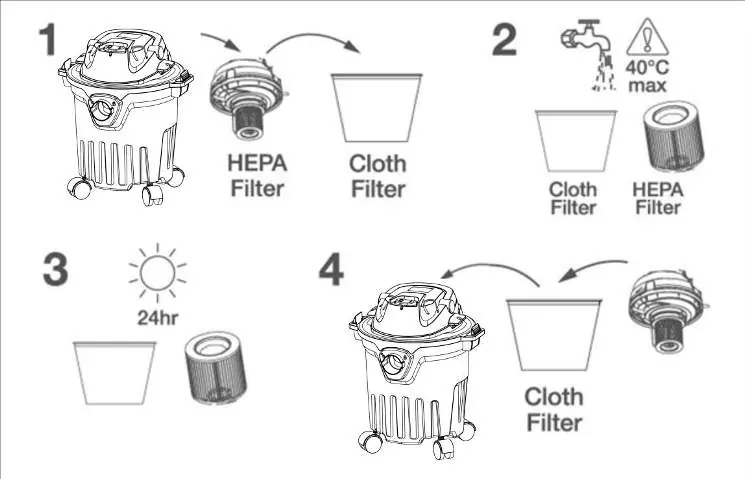

For liquid cleaning, fit the sponge filter onto the water valve below the motor base. For dust, use the HEPA filter. To clean the barrel, unfasten the locking knobs, lift the top cover, and remove dirt. Filters should be washed in clean, warm water when dirty and allowed to dry completely before reinstallation.

Safety instructions

• Do not use the machine in combustible or explosive environments.

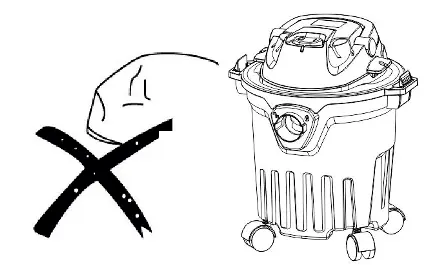

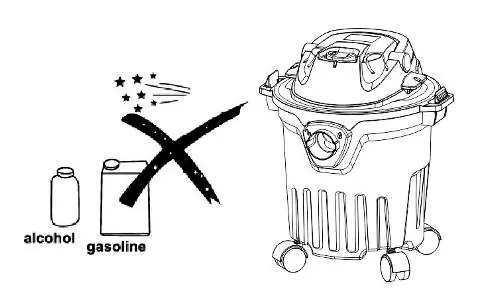

• Do not collect burning cigarettes, gasoline, sharp objects, or powders like graphite that can block the filter.
• Do not jam the air inlet to prevent motor damage.
• Do not overturn the machine to avoid water entering the motor.

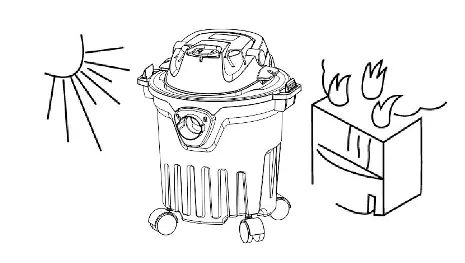

• Keep the machine away from strong sunlight and high temperatures.
• Do not immerse the barrel cap in water; wipe it with a damp cloth.
