IKEA FIXA 14.4V Cordless Screwdriver/Drill

Product Overview

The IKEA FIXA 14.4V is a versatile cordless screwdriver and drill designed for drilling holes in wood, plastic, and soft metals, as well as for tightening and loosening screws. It features a keyless chuck for quick bit changes and an adjustable torque setting for precise control.

Technical Specifications

• Voltage: 14.4 V
• Battery Type: 1.3 Ah Lithium-Ion
• Charging Time: 3-5 hours
• Chuck Capacity: 0.8-10 mm
• Max Torque: 16 Nm
• No-load Speed: 0-350 rpm (Position I), 0-1200 rpm (Position II)
• Weight: 1.1 kg

Safety Instructions

Warning: Read all safety instructions to prevent electric shock, fire, or serious injury. Always keep your work area clean and well-lit. Do not operate the tool in explosive atmospheres or near flammable materials. Use personal protective equipment, including eye protection. Ensure the tool is switched off before inserting the battery or changing accessories. Keep the charger away from rain and moisture, and only use the provided charger for the supplied battery.

Operation

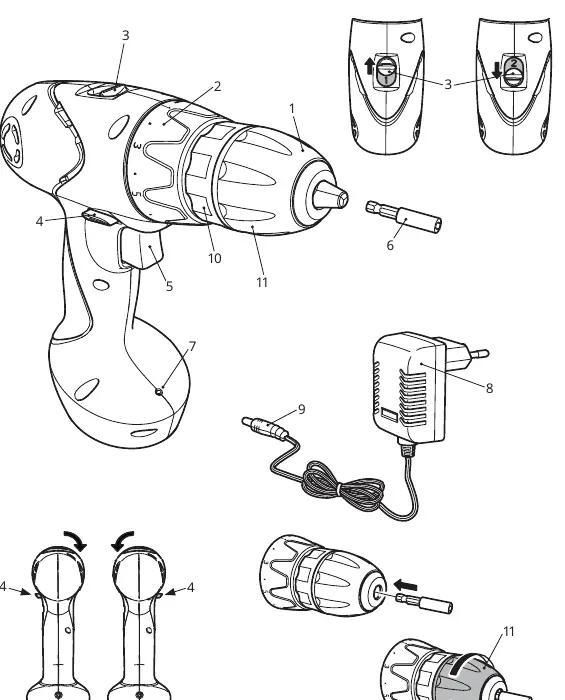

Before starting, ensure the rotational direction switch is in the center position to lock the trigger. Adjust the torque regulator to the desired setting (1-19 for screws, or the drill icon for drilling). Use the gear selector to choose between low speed (for screws/hard materials) and high speed (for wood). The shaft speed is infinitely variable based on the pressure applied to the trigger.

Charging

Connect the charger to the mains and insert the plug into the tool. A red LED indicates charging is in progress. The battery should be fully charged before first use. Do not charge for more than eight hours. The LED will turn green when fully charged. Avoid charging in temperatures below freezing.

Maintenance and Disposal

Keep the tool and ventilation slots clean for optimal performance. If the tool is damaged, have it repaired by a qualified professional. Dispose of the tool according to local environmental regulations, as indicated by the crossed-out wheeled bin symbol, to ensure proper recycling of electronic components.
