This document provides the assembly instructions for the IKEA SMÅSTAD loft bed combination. It covers the construction of the bed frame, the integrated desk, the shelving unit, and the ladder. Please note that this furniture requires assembly by two people and should be handled with care to avoid damage to the components.
Safety and Preparation
- Two-person assembly: It is strongly recommended to assemble this product with two people.
- Surface protection: Assemble the furniture on a soft surface, such as a rug or carpet, to prevent scratches and damage to the panels.
- Tools required: Use a manual screwdriver with a flat-head and Phillips-head bit. Do not use a power drill, as it may damage the material.
- Hardware check: Verify all parts and hardware listed in the manual before beginning assembly.
Assembly Overview
The assembly process is divided into logical sections, starting with the main frame components and progressing to the desk and storage integration. Key steps include:

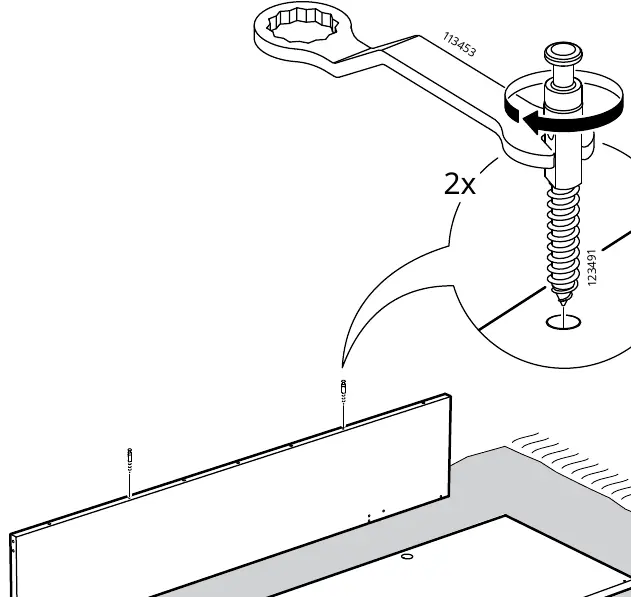

- Frame Construction: Connecting the side panels and structural beams using the provided cam locks and screws.
- Desk and Storage Integration: Attaching the desk surface and shelving units to the main frame.

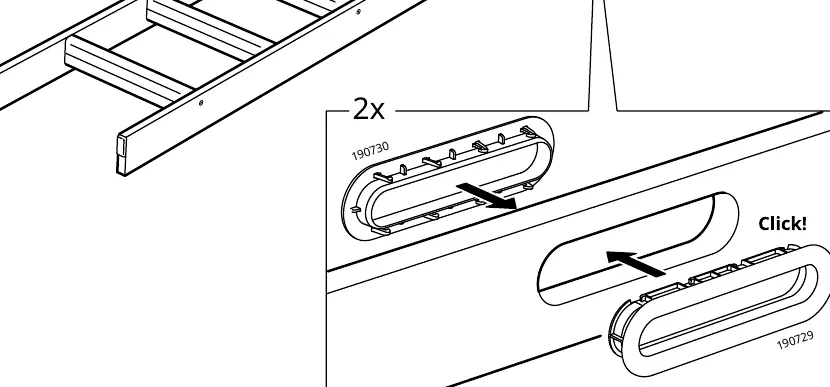

- Ladder Assembly: Constructing the ladder separately and securing it to the bed frame.
- Final Adjustments: Ensuring all cam locks are tightened correctly and the structure is stable.
Important Assembly Notes
Throughout the assembly, pay close attention to the orientation of panels and the specific hardware used for each connection. The manual provides detailed diagrams for each step. Ensure that cam locks are turned until they click or are fully secured to guarantee structural integrity. The bed is designed for a specific mattress size of 97 x 189 cm.
Manufacturer information
IKEA
Practical help
Common problems
Difficulty tightening cam locks
Ensure the cam lock is inserted correctly and the screw is fully seated before turning. Use a manual screwdriver to avoid over-tightening or stripping.
Unstable structure after assembly
Check that all cam locks are fully tightened and that all structural screws are securely in place. Ensure the bed is on a level surface.
Before use
- Verify all parts and hardware against the inventory list in the manual.
- Prepare a clear, soft workspace (rug or carpet).
- Ensure you have a manual screwdriver (flat and Phillips).
- Confirm you have a second person to assist with lifting and holding panels.
Specs in practice
- Mattress size
- The bed is designed to fit a mattress measuring 97 x 189 cm.
Images and diagrams
- The manual uses icons to indicate the required tools (manual screwdriver).
- Crossed-out icons indicate actions to avoid, such as using a power drill or incorrect hardware.
- Arrows indicate the direction of assembly or the movement of parts during installation.
Model compatibility
- This manual is specifically for the SMÅSTAD loft bed combination.
