Invicta Interior Chesterfield Bed Assembly Instructions

Product Overview

The Invicta Interior Chesterfield bed is designed for home assembly. The product is delivered in two separate packages containing the headboard, footboard, side frames, and all necessary hardware. Please ensure all parts are present before beginning the assembly process.

Assembly Instructions

The assembly process requires careful attention to the provided hardware components. Follow these steps to ensure a stable structure:

• Step 1: Prepare all components from both packages.
• Step 2: Connect the side frames to the headboard using the corner hardware (A+B) and secure each corner with 10 screws (D).

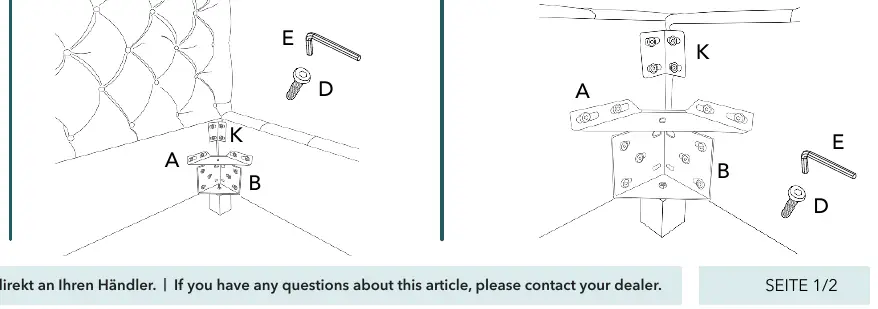

• Step 3: Attach the footboard to the side frames using the corner hardware (A+B+K) and secure each corner with 14 screws (D).
• Step 4: Attach the wooden legs (F) to the corner hardware (B) using the provided tool (C).
• Step 5: Install the corner fittings (G) to the headboard and footboard using 12 screws (H). Then, assemble the middle wooden support bar (I) and the central support leg (J).
• Step 6: Place the assembled middle support bar (I+J) onto the corner fittings (G) to complete the bed frame.

Safety and Maintenance

Ensure all screws are tightened securely during assembly to maintain structural integrity. Periodically check the connections to ensure they remain tight over time. If you encounter any issues or have questions regarding the assembly or parts, please contact your dealer directly for assistance.
