LED2 MONO SLIM Ceiling and Pendant Light Specification Sheet
Technical specifications and product overview for the LED2 MONO SLIM series, including ceiling and suspended light models with 2CCT switching and various dimming options.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document serves as a technical specification sheet for the LED2 MONO SLIM series of indoor luminaires. It covers both ceiling-mounted and suspended (P-Z) models. Users should consult this guide to identify the correct model based on size, dimming protocol (TRIAC or DALI/PUSH), and color temperature requirements.
Product description

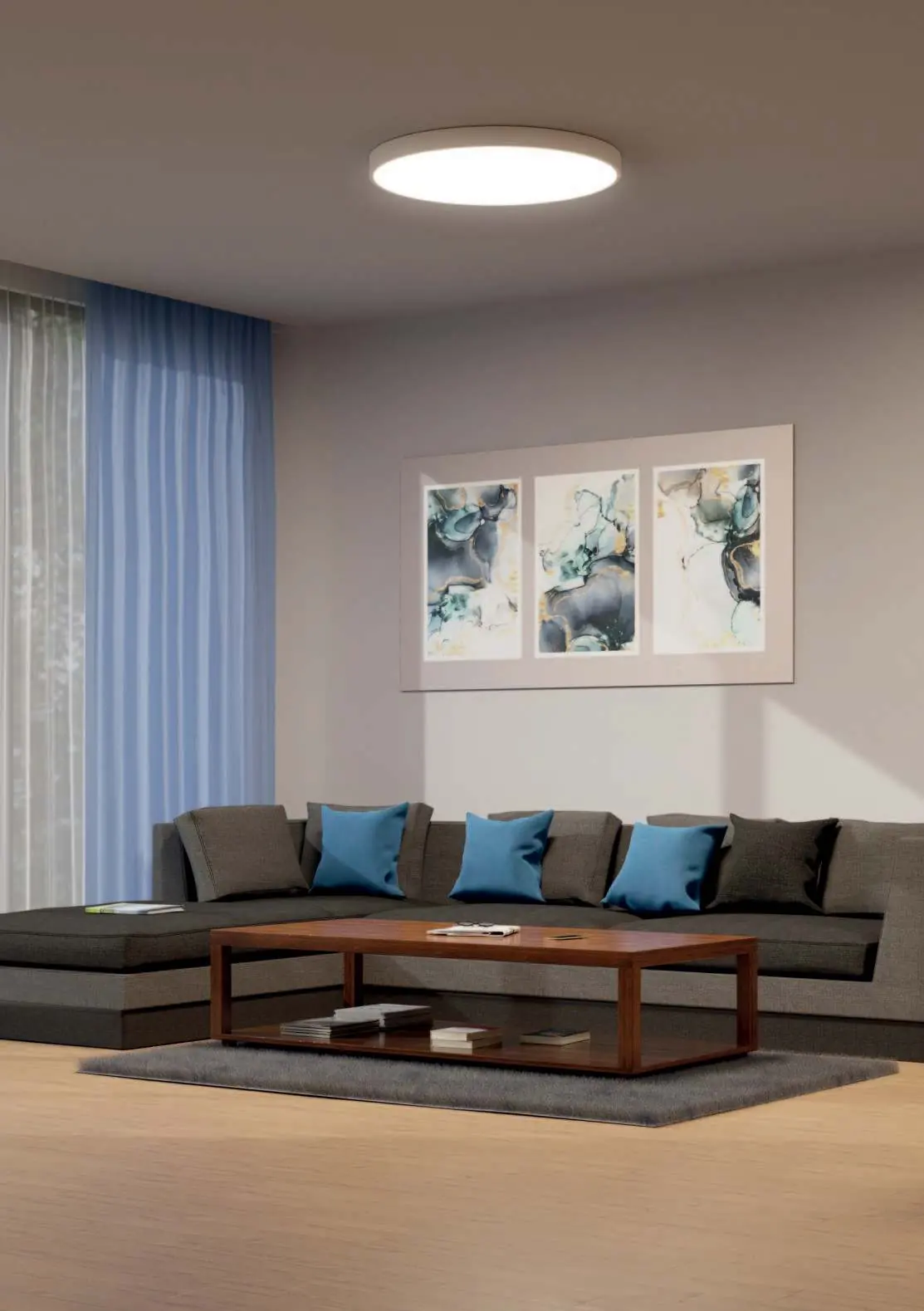

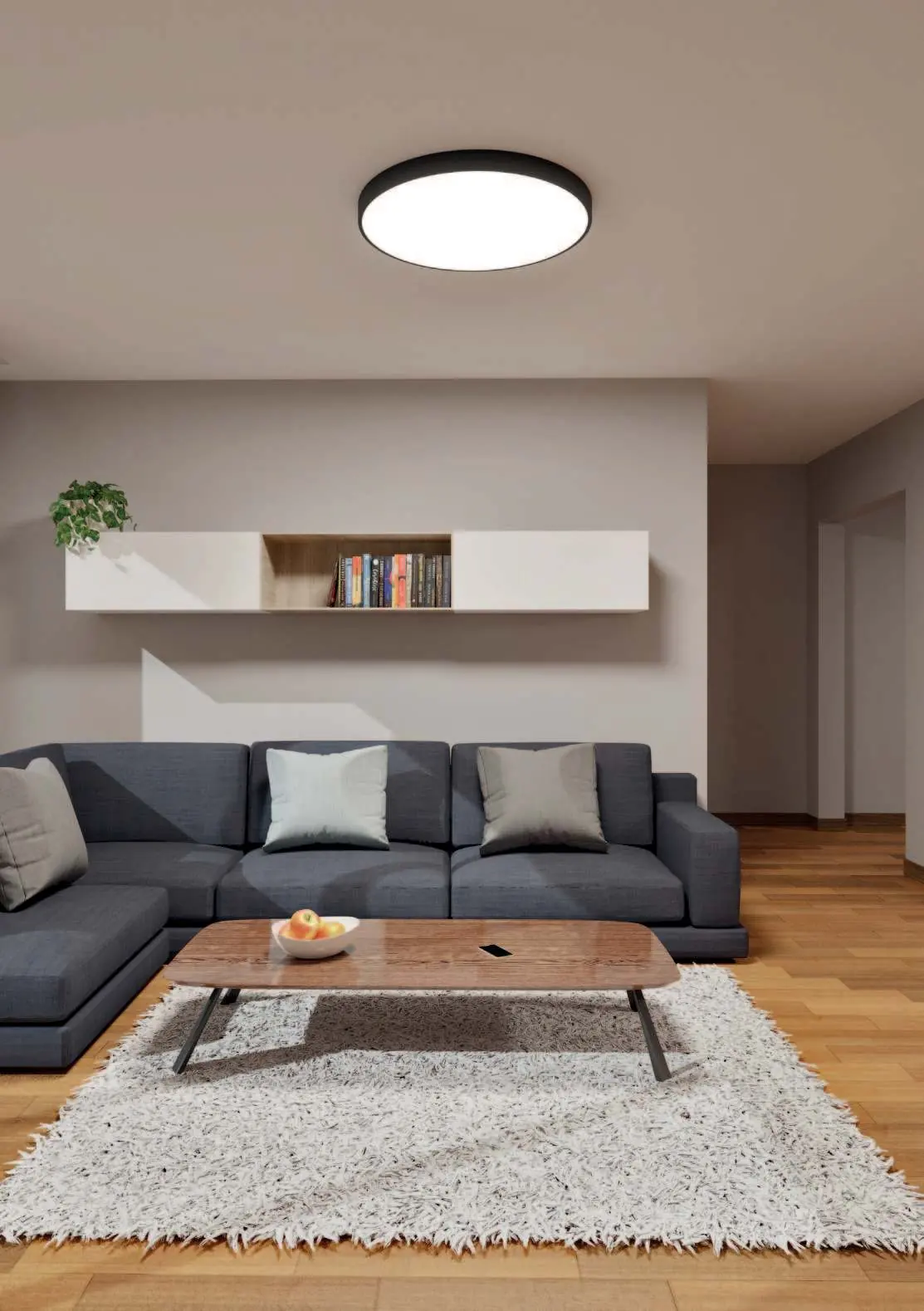

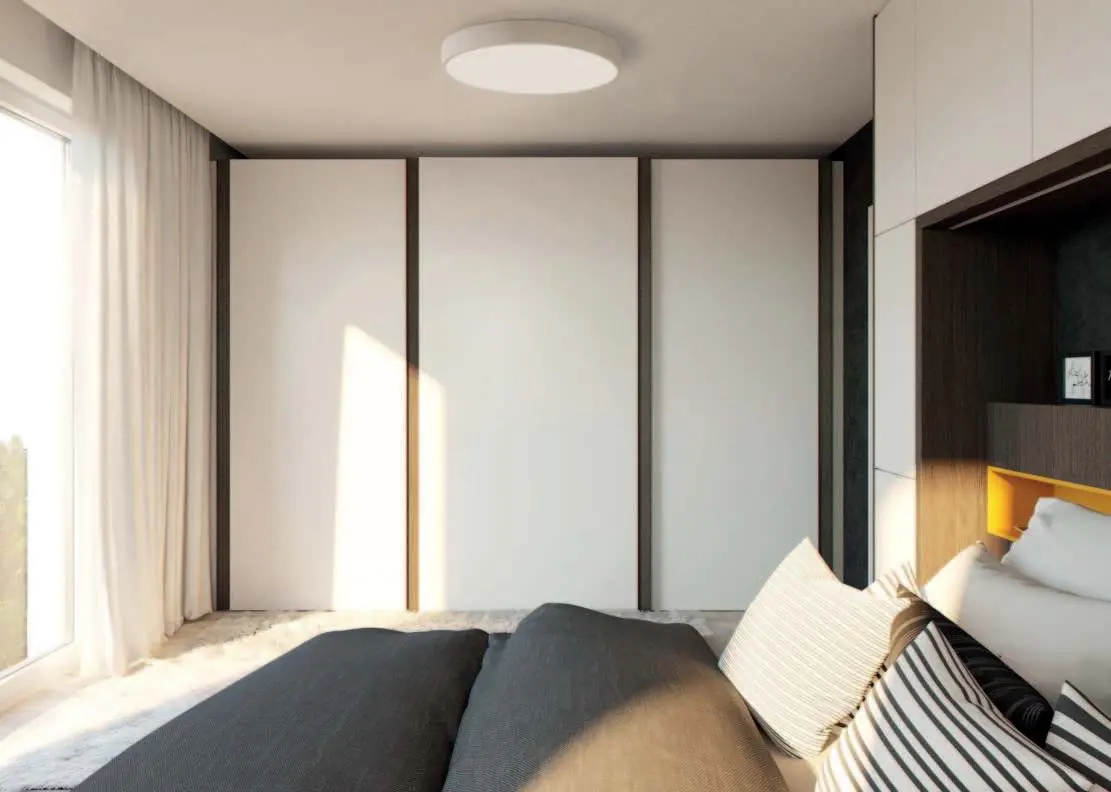

The MONO SLIM series consists of round, ring-shaped luminaires equipped with SMD LEDs. They feature a metal housing and an opal PMMA diffuser. These lights are suitable for general lighting in residential or business premises, such as dining rooms, bedrooms, kitchens, and meeting rooms.
Technical specifications
- Sizes: Available in 40 cm, 60 cm, and 80 cm diameters.
- Color Temperature: 2CCT switchable (3000K / 4000K).
- Color Rendering: CRI 90+.
- Beam Angle: 160°.
- Dimming Options: Available in non-dimmable, TRIAC, or DALI/PUSH versions depending on the specific model code.
Installation and usage
Ensure the chosen model matches your electrical system's dimming requirements (TRIAC or DALI/PUSH). The luminaires are designed for indoor installation. The 2CCT switch allows for selecting the desired color temperature before final installation.
Practical help
Common problems
Incorrect dimming control
Verify that the model code supports your specific dimming system (TRIAC or DALI/PUSH) before installation.
Wrong color temperature
Use the 2CCT switch on the fixture to toggle between 3000K and 4000K.
Before use
- Verify ceiling load capacity for the chosen fixture size.
- Check dimming compatibility (TRIAC vs DALI/PUSH) against your electrical system.
- Select desired color temperature (3000K/4000K) using the switch.
- Ensure the installation area is indoors.
Specs in practice
- TRIAC / DALI/PUSH
- Different dimming control protocols; ensure your wall switch/system matches the model.
Images and diagrams
- The document provides dimension diagrams for each model, indicating diameter (400mm, 600mm, 800mm) and height (60mm).

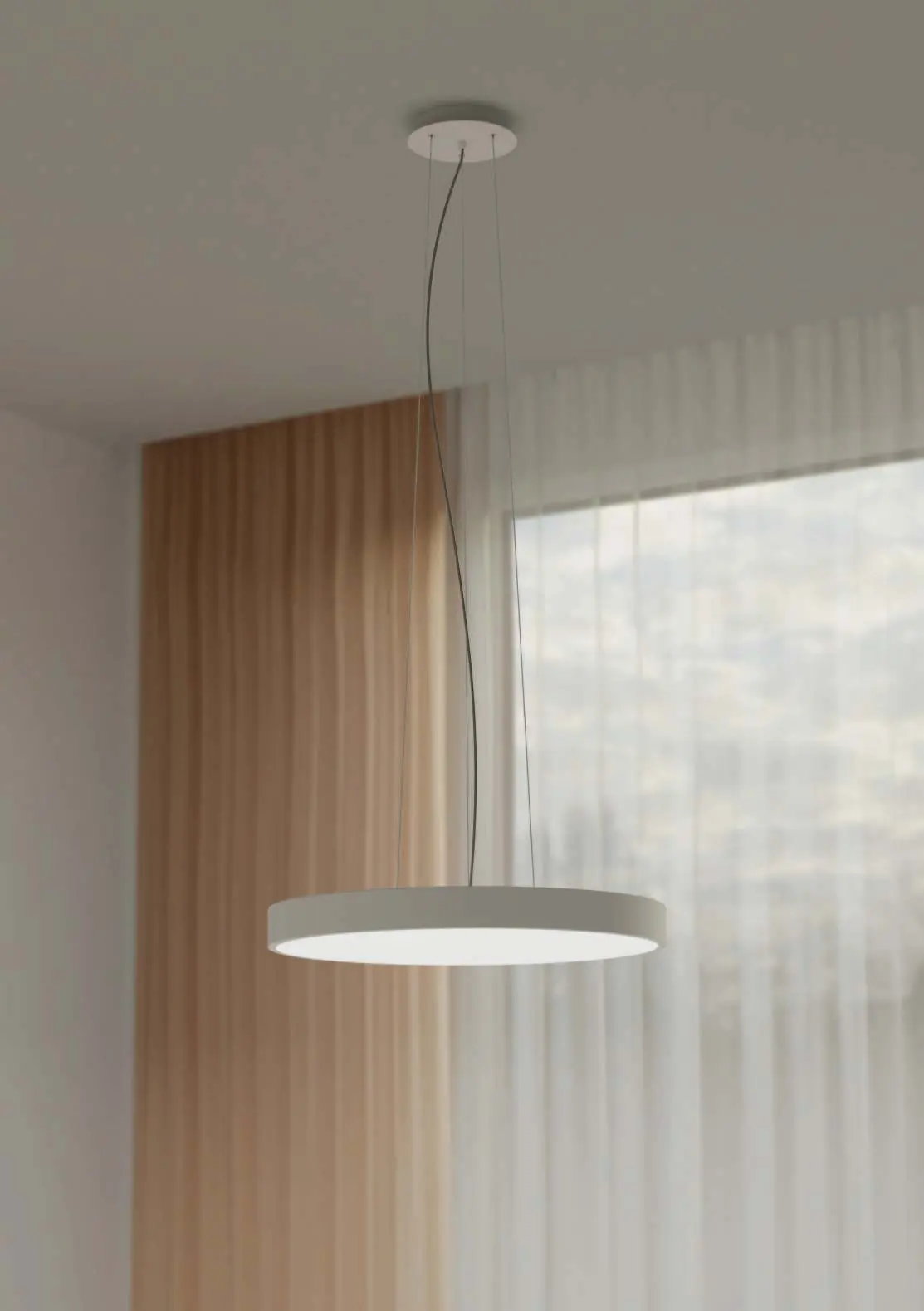

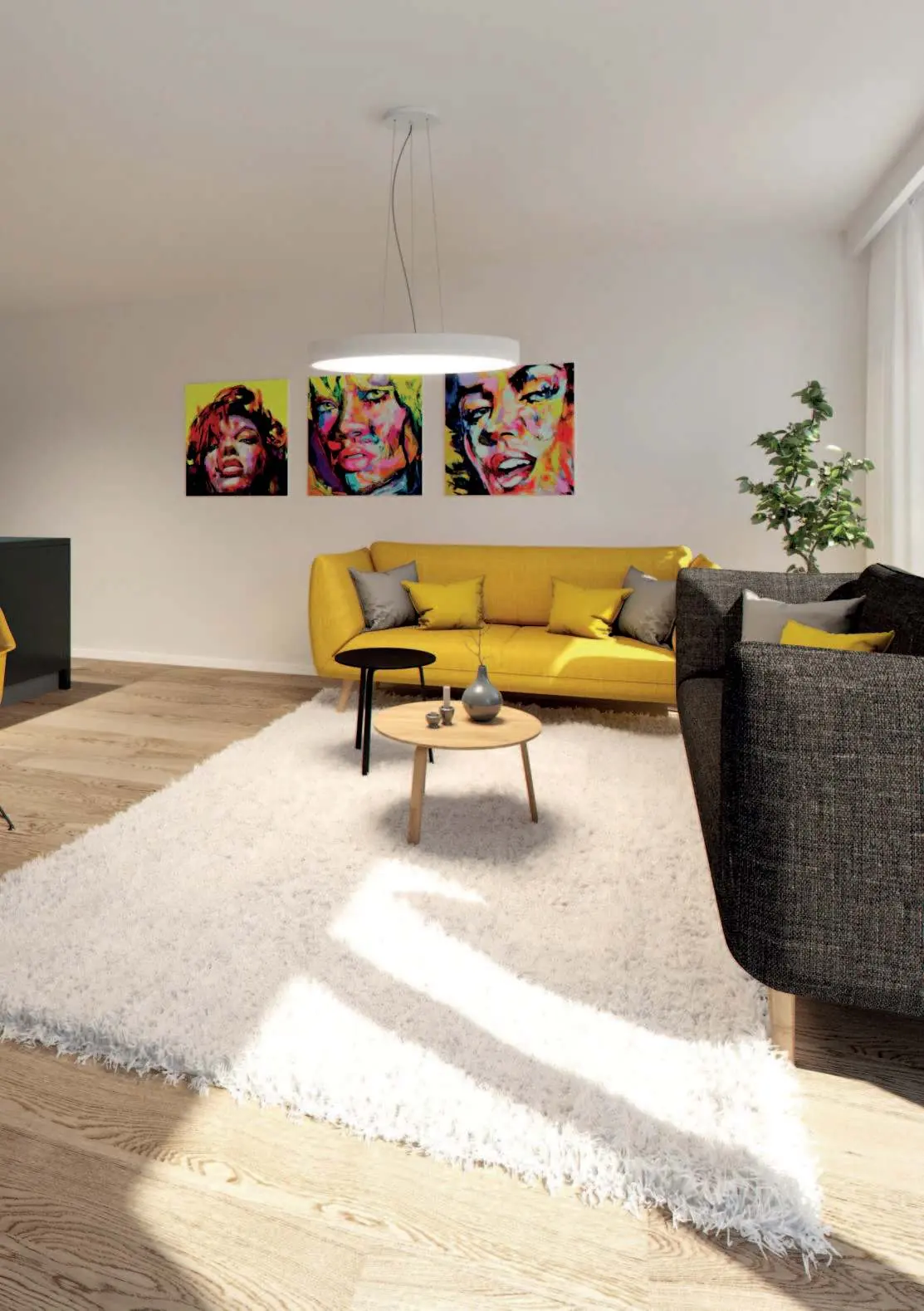

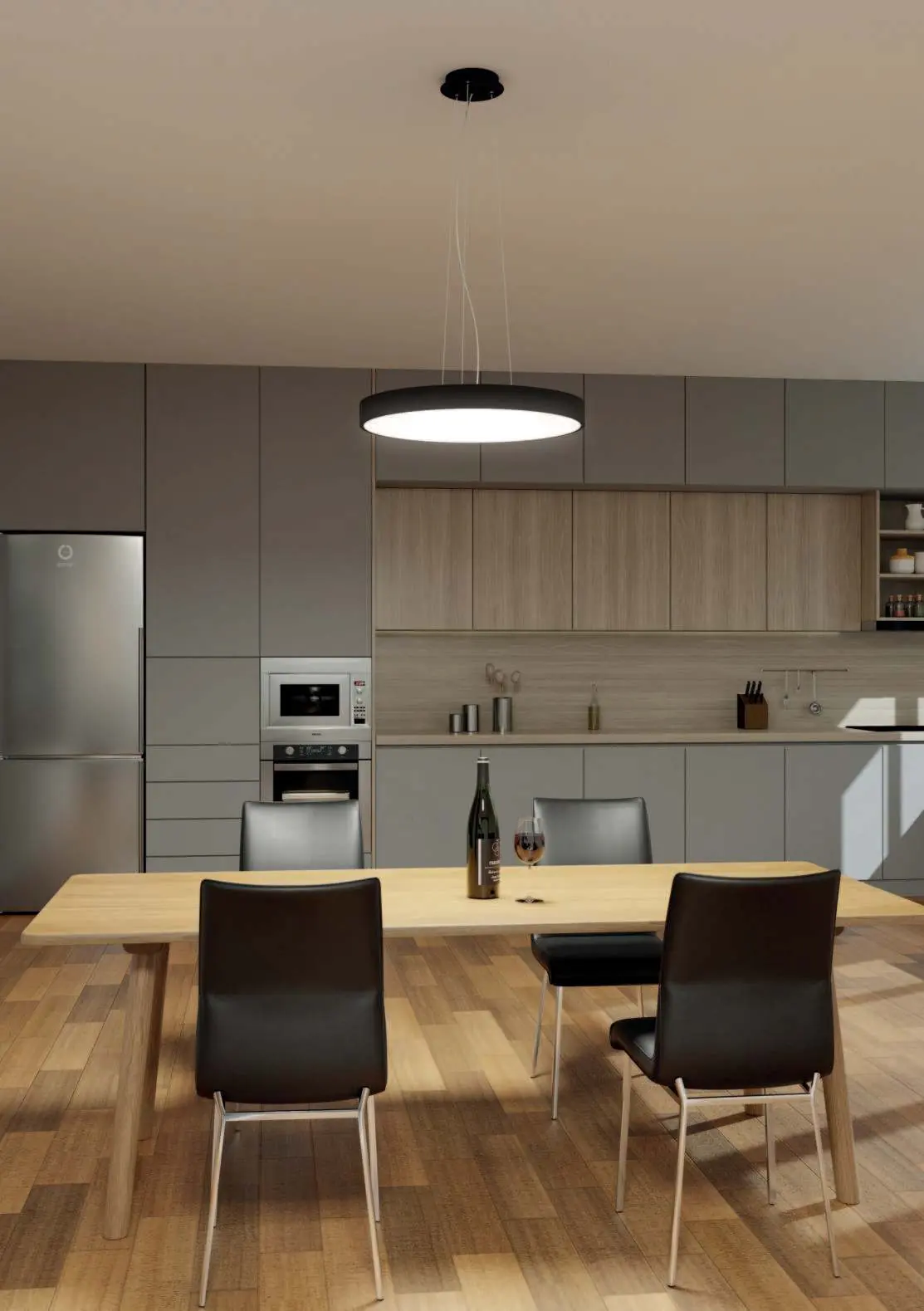

- Pendant models (P-Z) include suspension height details (2500mm).
Model compatibility
- Available in 40cm, 60cm, and 80cm diameters.
- Suitable for residential and commercial indoor use.
