Maisto 19160RCA Radio Control Vehicle Instruction Manual
Quick guide for the Maisto 19160RCA radio-controlled vehicle, covering battery charging, controller setup, operation, and performance tips.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for operating the Maisto 19160RCA radio-controlled vehicle. Key procedures include charging the vehicle's built-in battery via USB, installing AAA batteries in the controller, and synchronizing the frequency between the controller and the vehicle.
Charging the built-in battery
- Open the charging port cover on the vehicle.
- Ensure the power switch is in the CHARGE position.
- Connect the provided USB cable to a certified USB port.
- The charging LED will blink green during charging and remain solid green when fully charged.
- Disconnect the cable and replace the port cover after charging.
Controller setup
- Ensure the controller power is OFF.
- Use a screwdriver to open the battery compartment.
- Insert two 1.5V AAA (LR03/R03) batteries, ensuring correct polarity (+/-).
- Close the cover and tighten the screw.
Operation
To start, turn both the vehicle and controller power switches to ON. The power LEDs will flash for less than 3 seconds and then stay on, indicating successful frequency matching. If they flash for longer, turn both units off and try again.
- Forward/Backward: Pull or push the trigger on the transmitter.
- Steering: Turn the steering wheel to control left or right movement.
- 360° Spin: Turn the steering wheel fully to the left or right while the vehicle is stationary or moving.
Performance tips
- Do not drive on grass, sand, or through water.
- Avoid driving in windy or rainy weather.
- Keep fingers, hair, and loose clothing away from the vehicle.
- Interference from other radio-controlled items, CB radios, or high-voltage transmitters may affect the operating range.
Safety and maintenance
- The built-in battery is non-replaceable.
- Do not charge for more than 1.5 hours (except for the initial two charges).
- Do not touch the vehicle immediately after use; allow it to cool before recharging.
- Always turn the power switches to OFF when not in use.
- Regularly examine the USB cable for damage to the cord, plug, or enclosure.
Manufacturer information
Maisto
Practical help
Common problems
Power LEDs continue to flash after 3 seconds
Turn both the vehicle and controller power switches OFF, then turn them back ON to restart the frequency matching process.
Vehicle does not respond or has limited range
Check for interference from other radio-controlled devices, high-voltage lines, or weak batteries in the controller.
Charging LED does not turn on
Ensure the vehicle power switch is set to the CHARGE position and the USB source is providing power.
Before use
- Charge the built-in vehicle battery fully before first use.
- Install two fresh 1.5V AAA batteries in the controller.
- Ensure the vehicle power switch is in the ON position for driving.
- Verify the charging port cover is closed after charging.
- Check that the area is free of water, sand, or grass.
Specs in practice
- Controller Batteries
- Requires 2 x 1.5V AAA (LR03/R03) batteries (not included).
- Charging Time
- Do not charge for more than 1.5 hours to prevent overcharging.
Images and diagrams

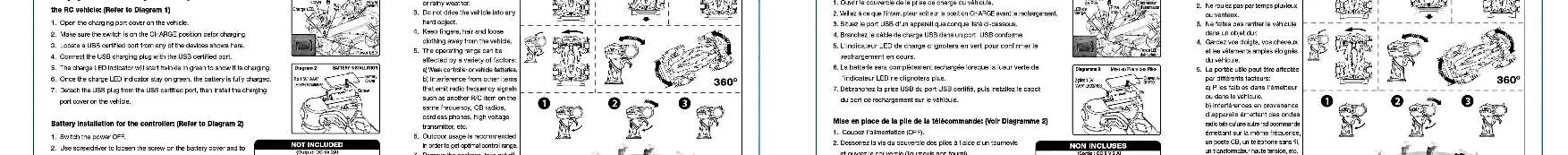

- Diagram 1: Charging the built-in battery via USB port.
- Diagram 2: Battery installation for the controller.
- Diagram 3: Power switch and LED indicator locations.
- Diagram 4: Performance tips and environmental warnings.

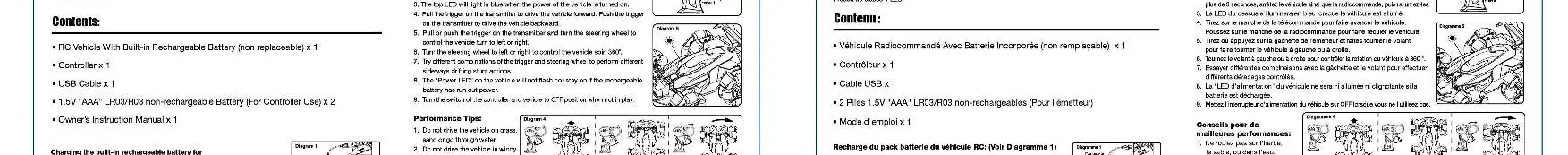

- Diagram 5: Driving controls (trigger and steering wheel).
Model compatibility
- The built-in battery is non-replaceable.
- Use only certified USB ports for charging.
- Do not mix old and new batteries or different types of batteries in the controller.
