This document provides essential instructions for operating the Maisto 19181RCA radio-controlled vehicle. Key procedures include charging the vehicle's built-in battery via USB, installing AAA batteries in the controller, and performing the automatic frequency synchronization process.
Charging the vehicle battery
- Open the battery compartment cover on the bottom of the vehicle to access the USB cable.
- Ensure the vehicle power switch is in the OFF/CHARGE position.
- Connect the USB plug to a certified USB port.
- The red LED indicator will light up during charging and turn off when the battery is fully charged.
- Disconnect the USB cable, store it in the compartment, and replace the cover.
Controller setup
- Use a screwdriver to open the battery cover on the controller.
- Insert two 1.5V AAA (LR03/R03) batteries, ensuring correct polarity (+/-).
- Secure the battery cover with the screw.
Operation and frequency matching
To start playing, set both the controller and vehicle power switches to the ON position. The vehicle's power LED will flash for less than 3 seconds and then remain solid, indicating that automatic frequency matching is complete. Use the trigger to drive forward/backward and the steering wheel to turn left or right.
Performance and safety
- Do not drive on grass, sand, or through water.
- Avoid driving in windy or rainy weather.
- Keep fingers, hair, and loose clothing away from the vehicle.
- Do not overcharge the battery; charging should not exceed 1.5 hours after the initial two charges.
- Do not touch the vehicle if it is hot; allow it to cool before recharging.
Manufacturer information
Maisto
Practical help
Common problems
Vehicle does not run in a straight line
Adjust the wheel alignment lever located under the chassis.
Power LED flashes for more than 3 seconds
Switch off both the vehicle and the controller, then turn them on again to restart the synchronization process.
Vehicle does not respond or has poor range
Check for weak controller or vehicle batteries, or interference from other radio frequency sources like CB radios or high-voltage transmitters.
Before use
- Ensure the vehicle battery is fully charged before the first use.
- Verify the vehicle power switch is in the OFF/CHARGE position during charging.
- Install two fresh 1.5V AAA batteries in the controller.
- Check that the battery compartment cover is securely screwed in.
- Ensure the vehicle and controller are switched to ON for synchronization.
Specs in practice
- Battery Type (Controller)
- Requires 2 x 1.5V AAA (LR03/R03) non-rechargeable batteries.
- Charging Time
- Do not charge for more than 1.5 hours except for the initial two charges.
Images and diagrams

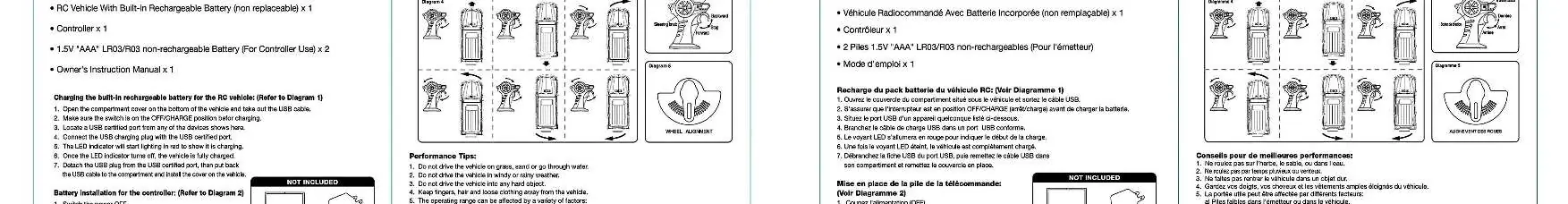

- Diagram 1: Charging the built-in battery via the internal USB cable.
- Diagram 2: Installing AAA batteries into the controller battery compartment.
- Diagram 3: Power switch locations on the vehicle and controller.
- Diagram 4: Steering and driving controls using the transmitter.
- Diagram 5: Wheel alignment adjustment mechanism.
Model compatibility
- Not suitable for children under 8 years old without adult supervision.
- Do not mix old and new batteries or different types of batteries in the controller.
