Installation Guide for MFL Glebe LED 12V Up/Down Spot Light
A comprehensive installation and setup guide for the MFL Glebe LED 12V Up/Down Spot Light (SKU 237016). Includes wiring instructions, adjustment procedures, safety requirements, and technical specifications.
Table of contents
Quick Installation Guide
This product must be installed by a licensed electrician. It is rated IP65, meaning it is protected against jets of water; this rating must be maintained during installation. The fitting requires a 12V transformer/LED driver (not included). Ensure the power is switched off before starting any electrical work.
Installation Steps
- Ensure the power to the circuit is switched OFF.

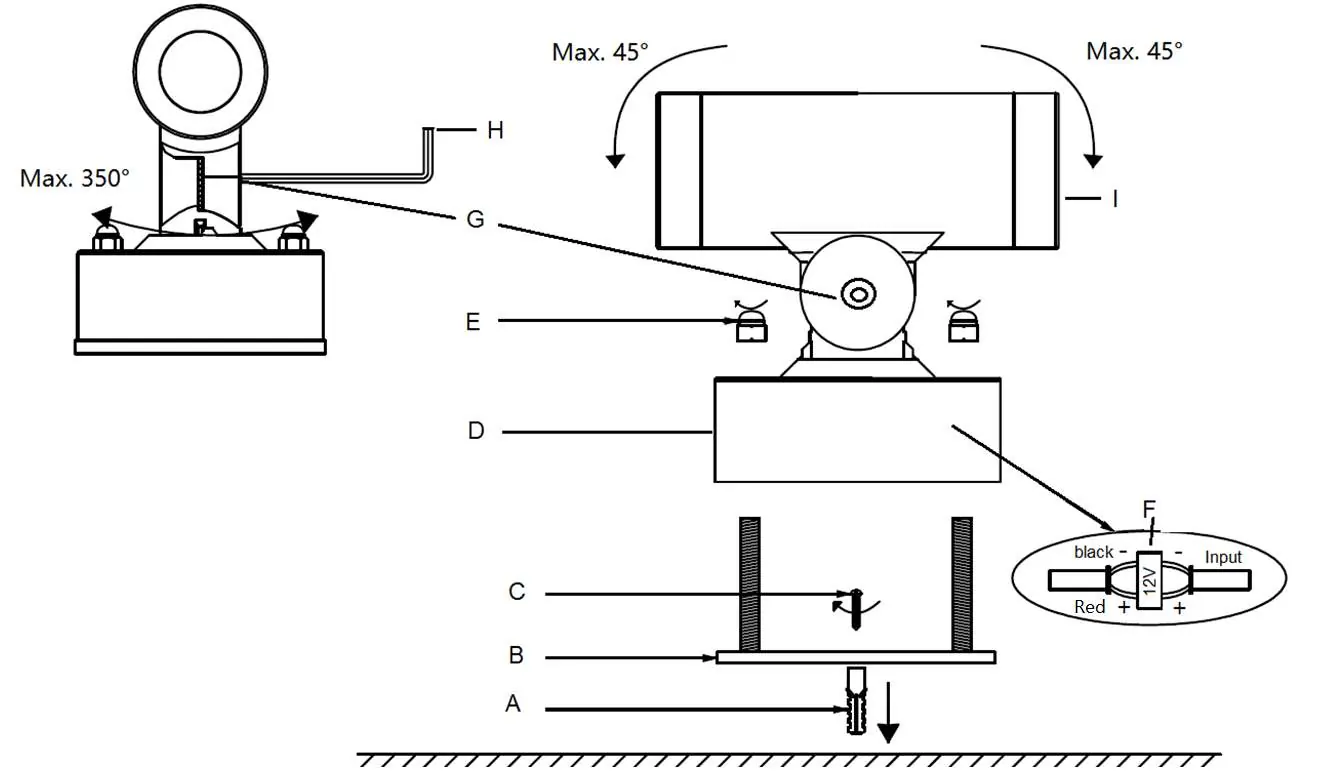

- Remove the mounting bracket (B) from the body of the fitting (D) by loosening the two screw nuts (E).
- Use the mounting bracket as a template to mark screw positions. Drill holes and insert the plastic anchors (A).
- Secure the mounting bracket to the installation area using appropriate screws (C) and anchors (A).
- Connect the transformer/LED driver output cable to the fitting input wire using an IP65-rated connector (not included). Ensure the connection is sealed (additional silicone glue may be required to maintain the IP65 rating). Wiring: Black wire to Negative (-), Red wire to Positive (+ 12VDC).
- Reattach the fitting to the mounting bracket.
Adjusting the Light
Once installed, you can adjust the light head:
- Up and Down: Loosen the Allen key screws (G) using an M2 Allen key (not included) to adjust the angle.
- Left to Right: Rotate the LED head (I) by hand to the desired position.
Safety and Maintenance
- Always ensure the power is OFF and the fitting has cooled down before performing any maintenance, cleaning, or adjustments.
- Do not allow the fitting to come into contact with corrosive chemicals.
- Select an installation location away from hazards.
- The mounting point must support at least twice the weight of the fitting (0.185kg).
Technical Specifications
- SKU: 237016
- Rated Voltage: 12VAC/DC
- Wattage: 4.5W
- LED: NICHIA LEDs, 3000K, 300lm
- IP Rating: IP65
- IK Rating: IK02
- Weight: 0.185kg
- Dimensions: H:80mm, W:80mm, E:94mm (Max)
Practical help
Common problems
Light does not turn on
Verify the 12V transformer/driver is functioning and check that the wiring polarity is correct (Black to Negative, Red to Positive).
IP65 rating compromised
Ensure the IP65-rated connector is properly sealed. Use additional silicone glue if necessary to maintain the water-tight seal.
Fitting loose or unstable
Ensure the mounting point supports twice the weight of the fitting and that the mounting bracket is securely fastened with appropriate screws and anchors.
Before use
- Ensure power to the circuit is switched OFF.
- Verify you have a 12V transformer/LED driver (not included).
- Check that you have an IP65-rated connector (not included).
- Confirm the mounting surface can support the weight of the fitting.
- Ensure you have an M2 Allen key for adjustments.
Images and diagrams
- The wiring diagram illustrates the connection between the fitting and the 12V power source, highlighting the polarity: Black wire to Negative (-) and Red wire to Positive (+).
Model compatibility
- Requires a 12V transformer/LED driver (not included).
- Suitable for both indoor and outdoor use.
