Philips Hue Outdoor Appear Wall Lamp

Technical manual and disassembly guide for the Philips Hue Outdoor Appear wall lantern, providing detailed component breakdown and maintenance instructions.

Table of contents

Product Overview

The Philips Hue Outdoor Appear is a high-quality wall lantern designed for outdoor use. It features a robust construction with a 24V system, providing versatile lighting options through the White and Color Ambiance technology. The unit is designed for durability and efficient light distribution.

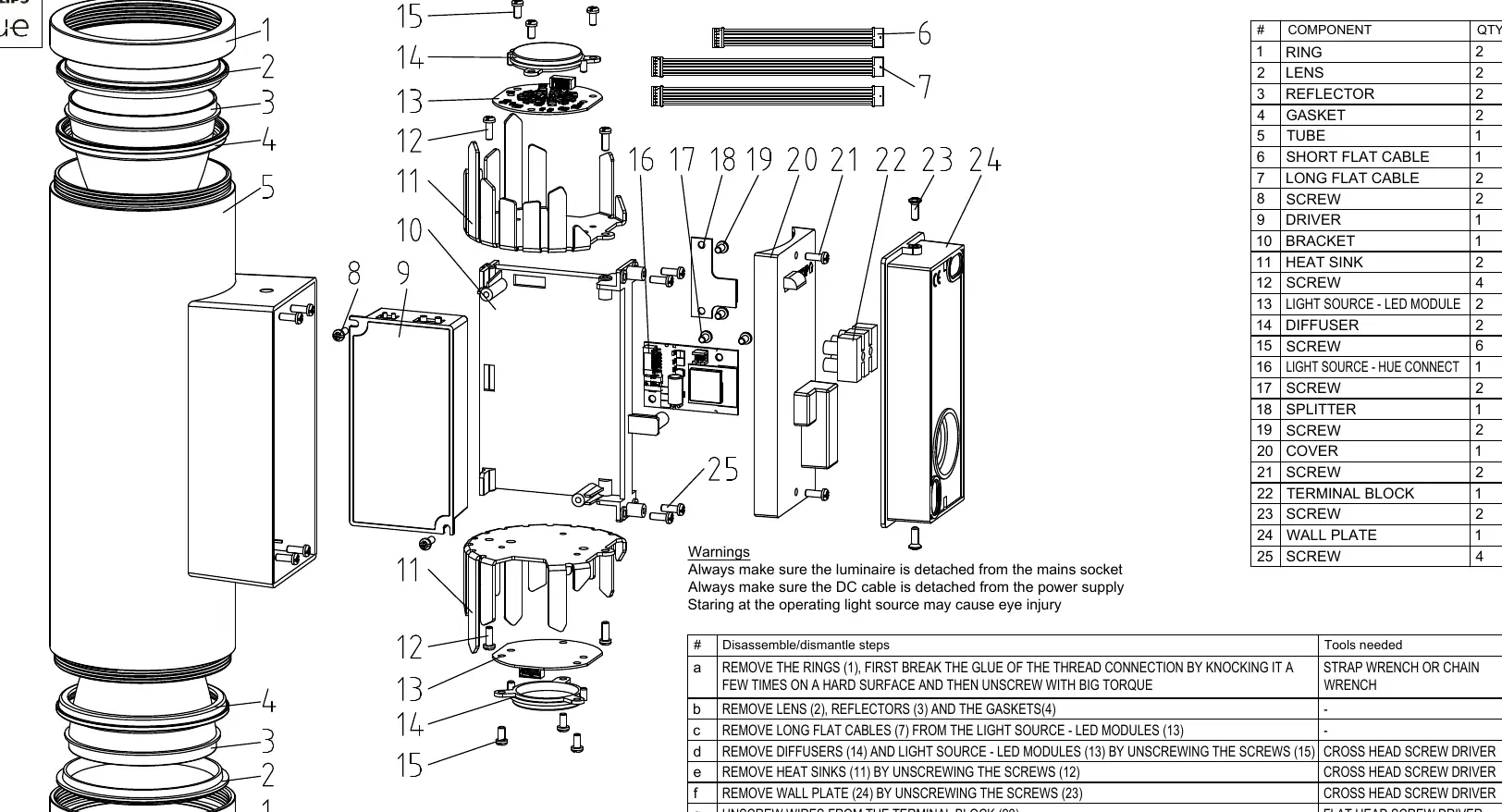

Exploded view of the Philips Hue Outdoor Appear wall lamp components.
Exploded view of the Philips Hue Outdoor Appear wall lamp components.

Safety Information

Warning: Always ensure the luminaire is completely detached from the mains socket before performing any maintenance or disassembly. Ensure the DC cable is disconnected from the power supply. Avoid staring directly at the operating light source, as this may cause eye injury.

Technical Specifications

The Appear wall lantern operates at 24V with a power consumption of 2x8W. It is designed for outdoor environments and features a modular construction for easier maintenance. Key components include LED modules, heat sinks, a control gear (PSU), and a Hue Connect module for smart integration.

Maintenance and Disassembly

The device is designed to be serviceable. Disassembly requires basic tools such as a cross-head screwdriver, flat-head screwdriver, and a strap or chain wrench for the threaded rings. The process involves removing the outer rings, lenses, reflectors, and gaskets, followed by the internal LED modules, heat sinks, and control gear. Always follow the specific sequence provided in the component breakdown to avoid damaging the internal wiring or the Hue Connect module.

Disposal

When the product reaches the end of its life, it should be disposed of in accordance with local regulations for electronic waste. Do not dispose of the luminaire with household waste. Ensure all components, including the LED modules and control gear, are recycled through authorized electronic waste collection points.
