User Manual for PureMate NaturoPure 1000W Centrifugal Juicer PM-302

Quick Guide

The PureMate NaturoPure 1000W Centrifugal Juicer (PM-302) is designed for household use. Before first use, ensure the local voltage matches the appliance (220-240V). Thoroughly clean all parts that come into contact with food. Always ensure the clamps are locked before operation and never use the appliance if the cord or plug is damaged.

Safety Instructions

• Do not dismantle, repair, or modify the product.
• Do not use near flammable or explosive materials.
• Keep away from direct sunlight and high-temperature objects.
• Do not place in wet areas where water may enter the device.
• Keep at least 1 meter away from electronic devices like computers or radios to prevent interference.
• Unplug the power cord when not in use, when cleaning, or when moving the device.
• Never reach into the feeding tube with fingers; always use the pusher.

Components

The juicer consists of the following parts:

• A: Pusher
• B: Feeding tube
• C: Lid
• D: Filter
• E: Juice collector
• F: Pulp container
• G: Clamps
• H: Control knob
• I: Driving shaft
• J: Motor unit

Assembly and Operation

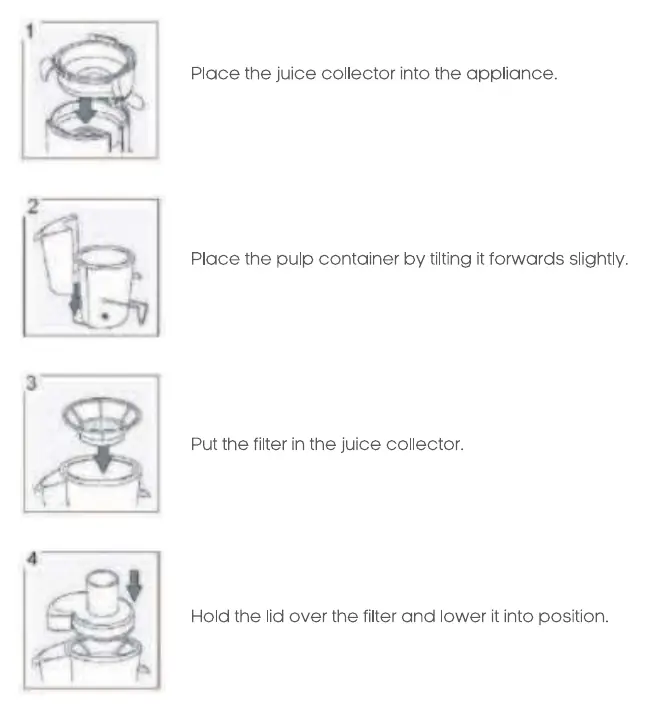

1. Place the juice collector into the appliance.
2. Place the pulp container by tilting it forwards slightly.
3. Put the filter in the juice collector.
4. Hold the lid over the filter and lower it into position.
5. Snap the two clamps onto the lid to lock it into place (you should hear a 'click').
6. Wash fruit/vegetables and cut them into pieces that fit the feeding tube.
7. Place a jug under the spout.
8. Turn the control knob to setting 1 (low speed) or 2 (normal speed).
9. Put pre-cut pieces into the feeding tube and press down gently with the pusher.
10. After processing, switch off the appliance and wait until the filter stops rotating.

Tips for Juicing

• Suitable ingredients: Fresh fruits and vegetables like pineapples, beetroots, celery, apples, cucumbers, carrots, spinach, melons, tomatoes, pomegranates, oranges, and grapes.
• Preparation: Remove thick peels (e.g., oranges, pineapples, uncooked beetroots) and the white pith of citrus fruits.
• Unsuitable ingredients: Fruits containing starch (bananas, papayas, avocados, figs, mangoes) and very hard/fibrous items like sugar cane.
• Oxidation: Apple juice turns brown quickly; add a few drops of lemon juice to slow this process.
• Efficiency: Press the pusher down slowly to extract the maximum amount of juice.

Cleaning and Maintenance

Clean the appliance immediately after use:

1. Unplug the appliance.
2. Remove the pulp container and pusher, open the clamps, and remove the lid.
3. Remove the juice collector together with the filter.
4. Clean these parts by hand in warm water with washing liquid and rinse under the tap.
5. Clean the motor unit with a damp cloth.

Specifications

• Model: PM-302
• Rated Voltage: AC 220-240V/50Hz
• Motor output: 1000W
• Motor Speed: 14000-18000 RPM
• Dimensions: 30.0 (L) x 20.0 (W) x 40.0 (H) cm
• Weight: 3.6 kg
