Singer Sewing Machine Instructions: Models 144w204 & 144w304

Product Description

The Singer 144w204 is a single-needle lockstitch machine featuring compound feed and high-lift alternating pressers, designed for heavy-duty applications such as automobile upholstery, tents, and furniture. It includes a belt-driven rotary sewing hook on a vertical axis and a 20-inch working space. The 144w304 model is a long-arm variant with a 30-inch working space, specifically suited for large-scale work like automobile door panels.

Technical Specifications

• Maximum Speed: 1500 stitches per minute.
• Stitch Length: Up to 2.5 stitches per inch.
• Presser Foot Lift: 0.875 inches.
• Needle Systems: 7x3 (sizes 21-27) for fabric; 7x19 (sizes 22-27) for cardboard and fiber.

Operation and Setup

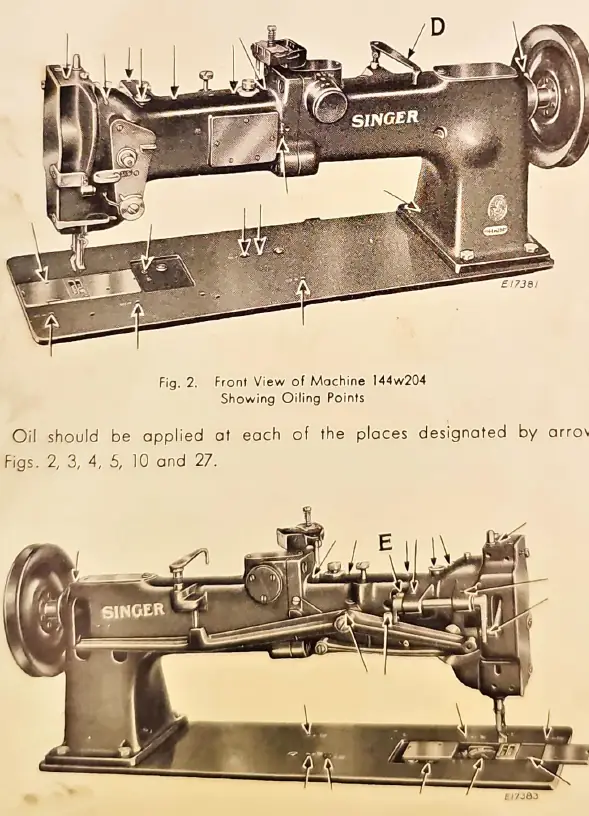

Proper operation requires using specific Singer lubricants (Type B or D) to ensure longevity. The machine should be oiled at least twice daily during continuous use. When starting, ensure the balance wheel turns toward the operator. Threading must follow the precise path through the thread oiler, tension discs, and take-up lever to the needle. The bobbin must be wound correctly, ensuring the stud enters the bobbin hole, and the thread tension must be balanced so that the needle and bobbin threads lock in the center of the material.

Adjustments and Maintenance

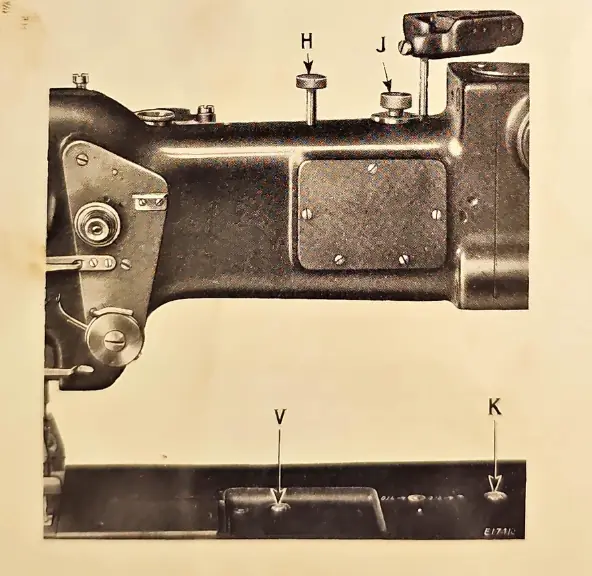

Stitch length is regulated by simultaneously depressing the knurled plunger in the arm and the button in the bed. The sewing hook timing is critical; the point of the hook should be at the center of the needle and approximately 1/16 inch above the eye. The machine features a safety clutch to prevent damage from unusual strain; if triggered, it can be re-engaged by drawing back the bed slide and aligning the locking lever with the notch in the shaft collar.

Safety and Care

Always use genuine Singer parts and needles to ensure machine performance. Needles should be marked with the SIMANCO trade mark. Avoid unauthorized modifications or repairs. Keep the machine clean, free of lint, and properly lubricated. When not in use, store belts in a cool, dark place to prevent damage to wire reinforcements.
