User Manual for SKYSHALO 12L Marine Fuel Tank

Quick guide from the manual

This manual provides essential instructions for the safe operation and maintenance of the SKYSHALO 12L Marine Fuel Tank (Model: LD-YG-P12). Always read the full safety instructions before first use. Ensure the fuel tank is kept away from children and combustible materials. Only use one type of fuel to avoid mixing, and always empty the tank completely if switching fuel types.

Safety Rules

• Flammable Material: The fuel stored is flammable and explosive. Pay attention to fire prevention and anti-static measures.
• Storage: Never store the fuel tank near combustible or easily inflammable materials.
• Handling: Do not use damaged products. Avoid dropping, falling, or applying excessive pressure/tensile forces to the tank.
• Children: Keep out of reach of children.

Structure Diagram

The fuel tank consists of the following key components:

• 1: Fuel tank body
• 2: Fuel cap
• 3: Vent bolt
• 4: Fuel level display
• 5: Outlet valve
• 6: Locating pin

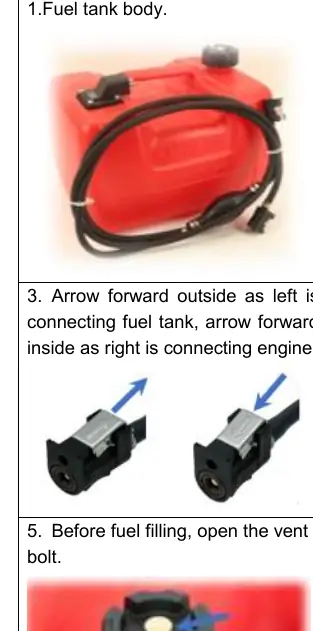

Operating Instructions

1. Hose Connection: Press the safe lock of the fuel hose, insert it in the correct direction, and ensure it clicks into place.
2. Directional Arrows: Ensure the arrow on the hose connector points correctly: arrow forward outside connects to the fuel tank; arrow forward inside connects to the engine.
3. Venting: Before filling with fuel, open the vent bolt.
4. Priming: Press the pump 4-5 times. There is no need to continue pressing once fuel flows out.

Maintenance

• Cleaning: If fuel is stored for a long time, sediment may form; clean the tank regularly.
• Leak Prevention: Check joints carefully during use and tighten them to prevent leaks.
• Storage: When finished, it is recommended to dry the product and store it in a safe place.
• Cap Care: If the fuel cap is not used for a long time or the environment is harsh, clean it before opening to prevent foreign matter from entering the tank.

Technical Data

• Model: LD-YG-P12
• Volume: 12L
• Material: HDPE
