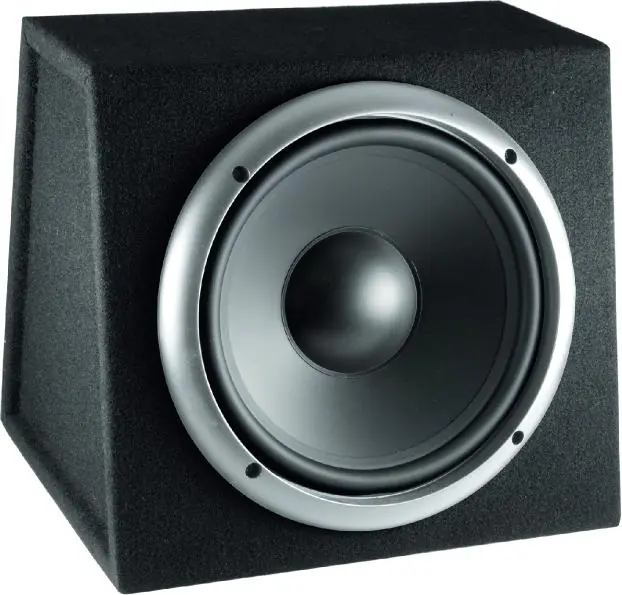

Somogyi Elektronic BS 10A Active Subwoofer User Guide

Quick guide from the manual

This document provides essential safety and operational guidelines for the Somogyi Elektronic BS 10A active subwoofer. Proper installation is critical for reliable operation and to avoid voiding the warranty. Always ensure the device is securely mounted in the vehicle and that all electrical connections are correct.

Safety warnings

• Installation: Installing car-hifi devices requires technical knowledge. If unsure, contact a specialist to avoid damaging the device or the vehicle.
• Handling: Do not touch the subwoofer cone or rubber edge with hands or tools.
• Environment: Protect the unit from dust, humidity, liquids, heat, frost, and direct sunlight. Do not place liquid-filled objects on the device.
• Electrical Safety: Do not modify the device. Ensure connections are correct to prevent malfunctions or short circuits. Do not connect cables while the system is powered on.
• Magnets: The speaker contains magnets; keep sensitive items like credit cards or compasses away.

Installation and connection

The subwoofer must be placed safely in the trunk of the car. Ensure that loose objects (e.g., luggage) cannot come into contact with the subwoofer to prevent damage. Ensure the grounding of the car is correct and that speaker poles do not touch each other or the car body.

Cleaning and maintenance

Use a soft, dry cloth and brush for regular cleaning. For plastic parts, use a slightly moist cloth. Do not use aggressive cleaners and ensure no liquids enter the device or its connectors.

Troubleshooting

If you notice an error, turn off the device immediately. If the problem persists, check the following:

• No sound: Check the amplifier supply voltage, its polarity, and ensure the connection cable is not damaged or short-circuited.
• Poor sound quality: Check the quality of the signal source and the strength of the signal. Adjust the inbound signal level if necessary.

Disposal

Waste equipment must be collected and disposed of separately from household waste as it may contain hazardous components. Dispose of the product at a facility specializing in the collection of electronic waste.
