Star Wars Stormtrooper Armor Kit Assembly Guide

Product Overview

The Star Wars Stormtrooper Armor Kit is a high-quality replica set designed for assembly and display. This kit includes all essential armor components, ranging from the helmet and chest plates to limb guards and specialized strapping systems required for a secure fit.

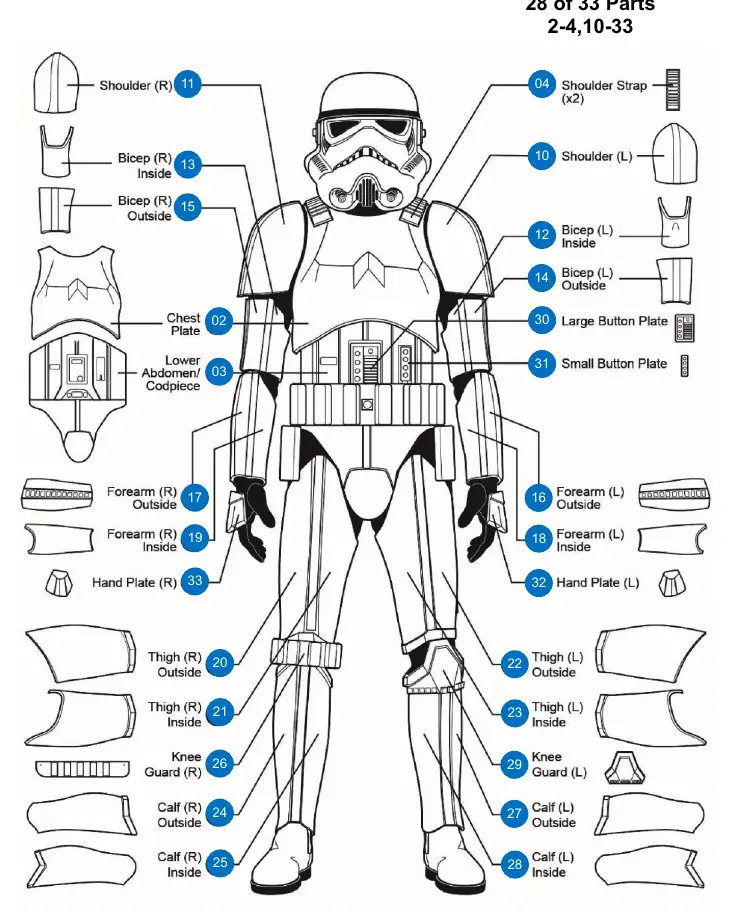

Parts Identification

The kit consists of 33 primary armor parts and 18 additional plastic strips for reinforcement. Key components include:

• Torso: Chest plate, back plate, lower abdomen/codpiece, and kidney plate.
• Arms: Shoulder bells, biceps, forearms, and hand plates.
• Legs: Thigh pieces, knee guards, and calf pieces.
• Accessories: Belt, detonator tube, and various mounting hardware.

Each part is numbered to facilitate easy identification during the assembly process. Ensure all parts are accounted for before beginning construction.

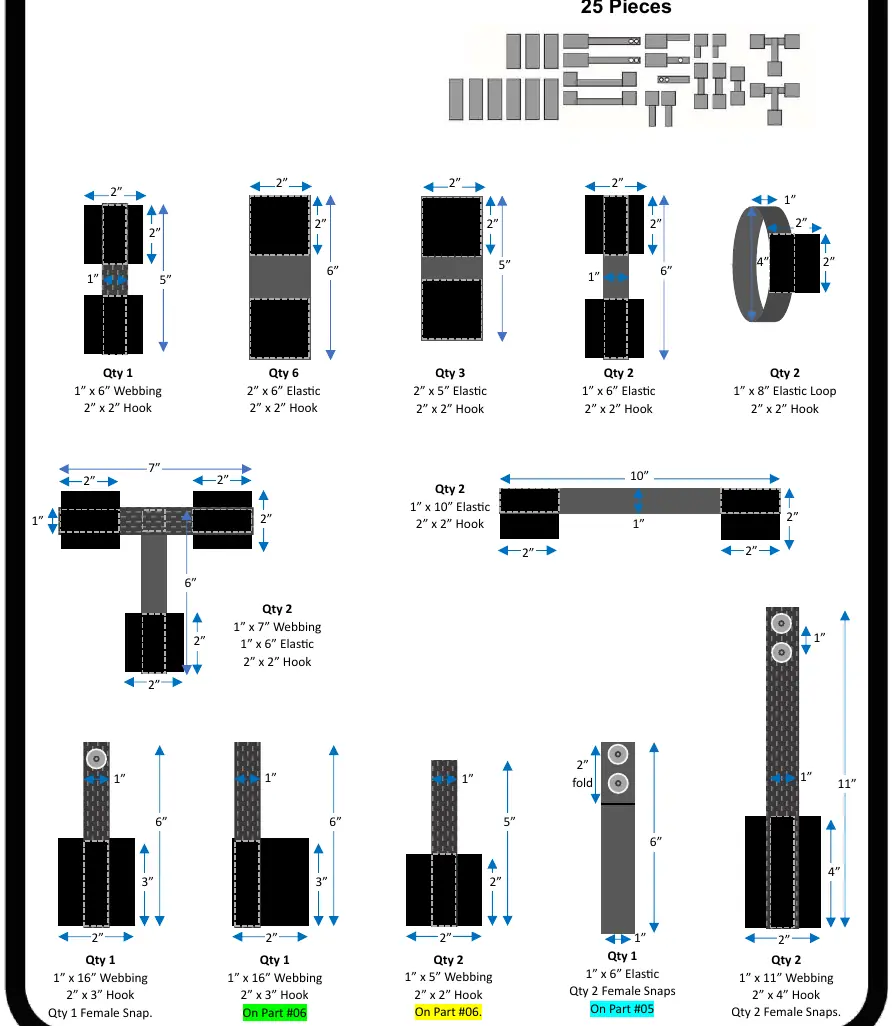

Strapping System

The strapping system is critical for the structural integrity and wearability of the armor. It utilizes a combination of elastic bands, webbing, and hook-and-loop fasteners to connect the various armor plates. The system includes 25 distinct pieces, each with specific dimensions and placement requirements.

Assembly and Configuration

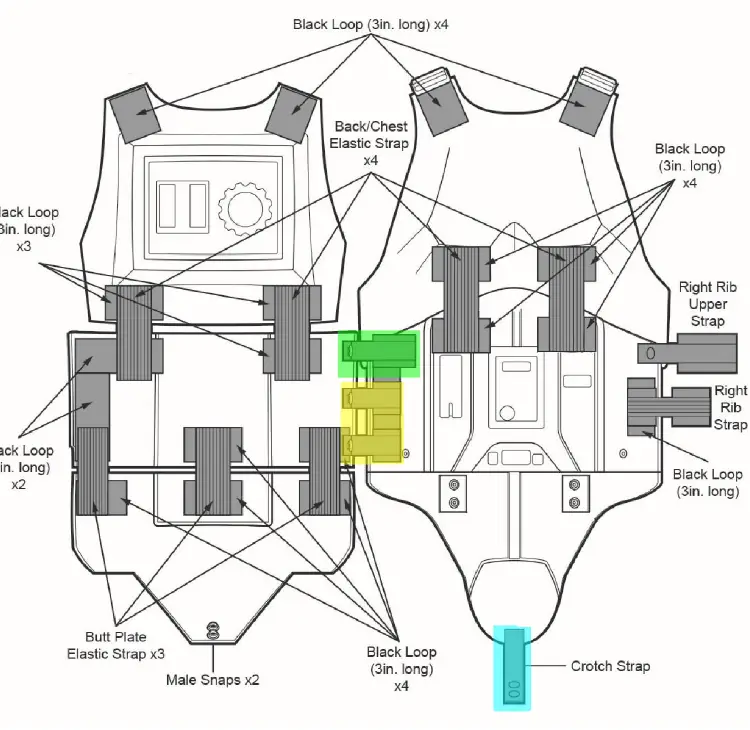

• Torso Strapping: Connects the chest and back plates using elastic straps and black loops. The crotch strap and butt plate attachments ensure proper alignment.
• Limb Strapping: Uses specific elastic loops to connect shoulder bells to biceps, and biceps to forearms.
• Fasteners: Utilize the provided female snaps and hook-and-loop strips to secure the armor to the body or undersuit.

Follow the provided diagrams to ensure each strap is attached to the correct part (e.g., Part #05 and Part #06) to maintain the correct range of motion and aesthetic accuracy.

Maintenance and Care

To maintain the appearance and longevity of your Stormtrooper armor, store it in a cool, dry place away from direct sunlight. Regularly inspect the strapping system for signs of wear or elastic fatigue. If fasteners become loose, re-secure them using appropriate adhesives or hardware as indicated in the assembly diagrams. Keep the plastic surfaces clean by wiping them with a soft, damp cloth.
