Service Manual for Stealth Pinnacle Wall Mount Mini Split Air Conditioner

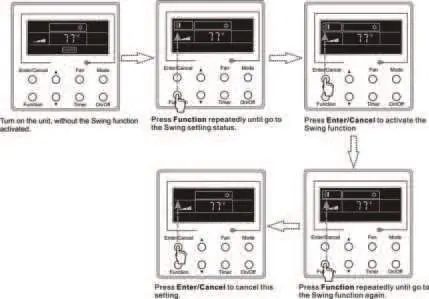

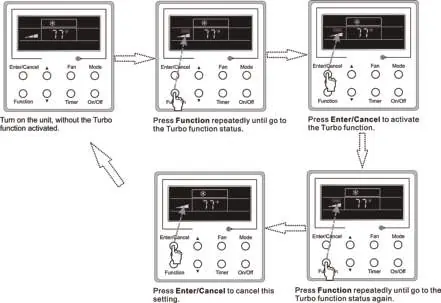

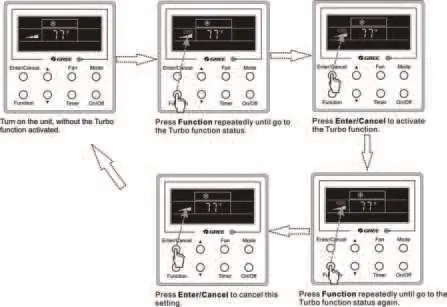

Comprehensive service manual for Stealth Pinnacle wall-mounted mini-split air conditioners. Includes technical specifications, installation procedures, wiring diagrams, remote control operation, smart Wi-Fi control setup, and detailed...
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This service manual provides technical information, installation instructions, and troubleshooting procedures for the Stealth Pinnacle series wall-mounted mini-split air conditioners. It is intended for qualified technicians. Always ensure the power is disconnected before performing maintenance or installation.
Technical Specifications
The system operates on 208/230V, 50/60Hz, 1-phase power. It uses R410A refrigerant. Cooling and heating capacities vary by model (9000-12000 Btu/h). Refer to the specification charts in the manual for detailed airflow, sound levels, and electrical requirements.
Installation
Installation must be performed by a qualified technician. Ensure the unit is installed in a location with adequate clearance for airflow as specified in the installation dimension diagrams. The indoor unit must be mounted securely, and the outdoor unit must be placed on a stable support. Proper vacuum pumping and leak detection are mandatory after connecting the refrigerant pipes.
Electrical Connections
Follow the provided wiring diagrams for both indoor and outdoor units. Ensure all connections are firm and the unit is properly grounded. Use the specified air switch capacity (15A for 09/12K models). Keep signal and communication lines separate from power cords to avoid electromagnetic interference.
Smart Control (Wi-Fi)
The unit supports smart control via a smartphone or tablet. Download the designated app and follow the configuration steps (AP configuration or original configuration) to connect the air conditioner to your home Wi-Fi network. Ensure the server settings in the app match the unit's requirements.
Maintenance and Troubleshooting
The manual includes a comprehensive error code list to assist in diagnostics. Common error codes include:
- E5: Overcurrent protection (check supply voltage, clean heat exchangers).
- E6: Communication malfunction (check wiring between units).
- F0: Refrigerant leakage (inspect for leaks, check evaporator sensor).
- H6: Blocked protection of IDU fan motor (check motor and wiring).
Follow the provided flowcharts for systematic troubleshooting of specific malfunctions.
Practical help
Common problems
Unit will not start
Check power supply, circuit breaker, and remote controller batteries.
E5 Error (Overcurrent protection)
Verify supply voltage, clean indoor/outdoor heat exchangers, and ensure proper ventilation.
E6 Error (Communication malfunction)
Inspect wiring between indoor and outdoor units for loose or damaged connections.
F0 Error (Refrigerant leakage)
Check for refrigerant leaks and inspect the evaporator temperature sensor.
Before use
- Verify power supply voltage matches the nameplate (208/230V)
- Ensure the unit is properly grounded
- Check for obstructions near air inlet and outlet
- Confirm refrigerant lines are connected and leak-tested
- Ensure the remote controller has fresh batteries
Specs in practice
- Cooling Capacity
- 9000-12000 Btu/h depending on the specific model.
- Power Supply
- 208/230V, 50/60Hz, 1 Phase
Images and diagrams
- Wiring diagrams for indoor and outdoor units
- PCB layout diagrams for troubleshooting

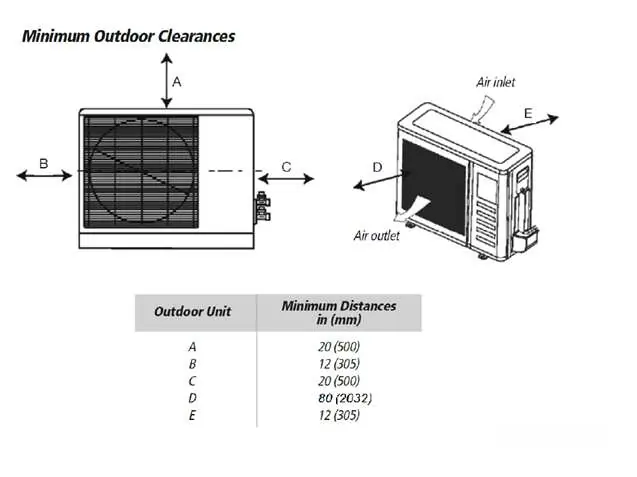

- Installation clearance requirements for indoor and outdoor units
Model compatibility
- Requires 208/230V power supply
- Wi-Fi control requires a compatible smartphone app
- Installation must be performed by a licensed technician
