User Manual for Sunnydaze Decor 1475H Acacia Wood Steel Frame Planter Box
Quick guide for the Sunnydaze Decor 1475H Acacia Wood Steel Frame Planter Box. Includes assembly instructions, care and maintenance tips, and safety warnings.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for assembling and maintaining the Sunnydaze Decor 1475H Acacia Wood Steel Frame Planter Box. The product is designed for outdoor use on flat, level surfaces. Before assembly, ensure all parts are accounted for and assemble on a soft, clean surface to protect the finish.
Assembly
The assembly process requires a Phillips screwdriver (not included). Follow these steps:

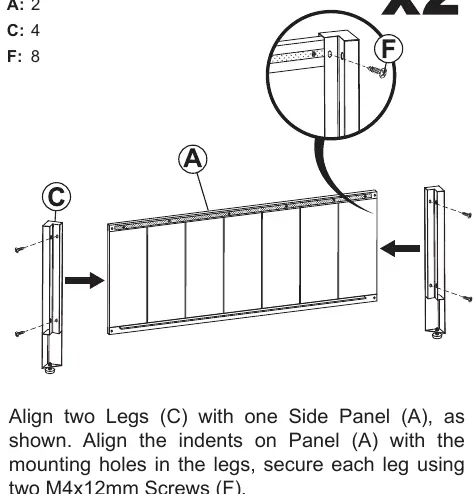

- Step 1: Align two Legs (C) with one Side Panel (A). Align the indents on Panel (A) with the mounting holes in the legs and secure each leg using two M4x12mm Screws (F). Repeat for the second side panel.

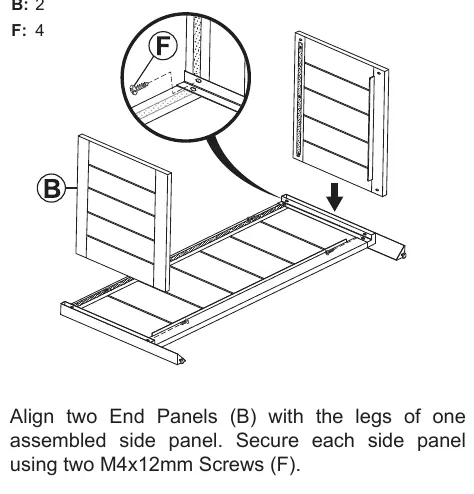

- Step 2: Align two End Panels (B) with the legs of one assembled side panel. Secure each side panel using two M4x12mm Screws (F).

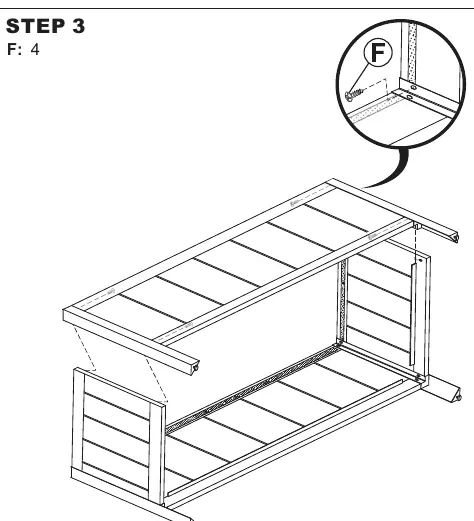

- Step 3: Align the remaining assembled side panel to the end panels using four M4x12mm Screws (F).

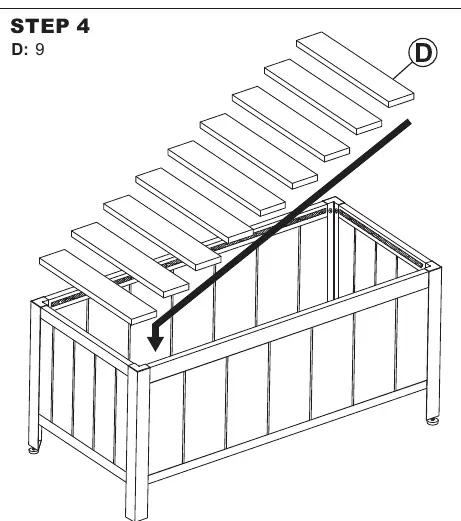

- Step 4: Place nine Bottom Slats (D) in the bottom of the planter box.

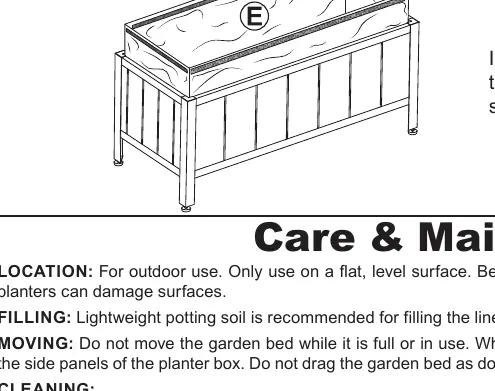

- Step 5: Install the Planter Bag (E) into the planter box by aligning the hook and loop fastener strip on the bag to the strip inside the planter box.
Care & Maintenance
Proper care will extend the life of your planter box:
- Cleaning: Use a soft brush or cloth to remove dust and debris. For stubborn stains, use a mixture of warm water and mild, non-detergent soap. For the plastic liner, mix 1 part distilled vinegar with 4-5 parts warm water.
- Wood Care: Apply a suitable penetrating wood oil at least once a year or when the wood appears dry.
- Moving: Do not move the planter while full. When empty, lift beneath the side panels with assistance. Do not drag the unit.
- Winter Storage: Move the unit to a dry, indoor location during winter and freezing temperatures. Cover to prevent dust build-up.
- Hardware: Periodically check all bolts and screws and tighten as necessary.
Safety Statements
- Recommended for outdoor use only.
- Only use on a flat, level surface.
- Do not exceed the capacity of the unit.
- Never stand or climb on the unit.
- Keep away from heat sources such as fire pits, patio heaters, and grills.
- Never use chemical cleaning products or polishes as they may damage the finish.
Practical help
Common problems
Wood cracking or mold growth
Caused by excessive exposure to moisture, rain, or snow. Ensure the unit is maintained with wood oil and stored in a dry location during winter.
Loose assembly points
Wood expands and contracts with weather changes. Periodically check and tighten all bolts and screws.
Scratches on the finish
Scratches are inevitable with normal use. They can be repaired with rust-resistant paint (not included).
Before use
- Inspect all packaging to ensure all parts (A-F) are accounted for.
- Have a Phillips screwdriver ready.
- Prepare a soft, clean surface for assembly.
- Ensure all fittings are tight before use.
- Verify the location is flat and level.
Specs in practice
- M4x12mm Screw
- The specific hardware required for all assembly steps.
Images and diagrams
- Steps 1-3 illustrate the frame assembly using the side panels, end panels, and legs.
- Step 4 shows the placement of the bottom slats.
- Step 5 demonstrates the installation of the planter bag liner.
Model compatibility
- Outdoor use only.
- Not suitable for indoor use.
- Do not use chemical cleaners or polishes.
