Installation Manual for 54-inch XTREME Mulch Kit 19A30042
Installation guide for the 54-inch XTREME Mulch Kit (19A30042). Includes step-by-step instructions for blade replacement, mulch plug installation, and torque specifications for stamped and fabricated decks.
Quick answers from the manual
Quick answer
- This manual provides installation instructions for the 54-inch XTREME Mulch Kit (19A30042), including blade replacement and mulch plug setup. p. 1, 2
Key actions
- Install blades p. 1
- Install mulch plug p. 1, 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Torque (Stamped Deck) | 80-100 ft-lb | Tightening force for blade spindle nut | p. 1 |
| Torque (Fabricated Deck) | 100-120 ft-lb | Tightening force for blade spindle nut | p. 1 |
Where to find it in the PDF
- Blade Installation p. 1
- Mulch Plug Installation p. 1, 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This installation manual provides instructions for the 54-inch XTREME Mulch Kit (19A30042). Before beginning, ensure the tractor is on a firm, level surface, the parking brake is set, the PTO is disengaged (OFF), the motor is stopped, and the ignition key is removed. Always wear heavy leather work gloves when handling cutting blades.
Important Torque Specifications:
- Stamped Deck: 80 ft-lb to 100 ft-lb
- Fabricated Deck: 100 ft-lb to 120 ft-lb
Carton Contents
Before beginning installation, verify all parts are present:
- Three Mulching Blades (942-05056-X)
- One 54" Deck Mulch Plug Assembly (631-05178)
- One Wing Knob (720-04122)
- One Chute Adapter (731-10133)
Blade Installation
- Remove the cutting deck from beneath the tractor as instructed in your tractor’s Operator’s Manual.
- Gently flip the deck over to expose its underside.
- Stabilize one of the cutting blades with a blade lock tool or a block of wood.
- Remove the hex flange nut that secures the blade to the spindle. Note: The nuts have a standard right-handed thread pattern; do not force them in the opposite direction.
- Repeat the process for the other cutting blades.
- Replace the blades with the new ones from the kit. Ensure each blade is installed with the side marked "Bottom" (or with a part number stamped in it) facing the ground when the mower is in the operating position.
- Tighten the hex flange nut to the specified torque for your deck type.
Mulch Plug Installation
- Pivot the chute deflector upward and remove the protective cover from the pin on the deck’s surface.
- For 54-inch Stamped Decks only, position the chute adapter over the pin.
- Pivot the discharge chute upward.
- Insert the mulch plug into the discharge chute opening.
- Insert the mulch plug rod into the hole found on the front, right deck wheel bracket.
- Position the rear of the mulch plug over the pin found on the deck’s surface. Ensure the bottom of the mulch plug is installed down inside the lip of the deck opening.
- Secure the mulch plug in place with the wing knob.
Manufacturer information
The Home Depot
Practical help
Common problems
Blade nut is difficult to remove
Ensure you are turning in the correct direction. The hex flange nuts have a standard right-handed thread pattern.
Mulch plug does not fit correctly
Ensure the bottom of the mulch plug is installed down inside the lip of the deck opening.
Before use
- Park tractor on a firm, level surface
- Set the parking brake
- Place PTO in the disengaged (OFF) position
- Stop the tractor's motor
- Remove the ignition key
- Wear heavy leather work gloves
Specs in practice
- Torque (Stamped Deck)
- 80 ft-lb to 100 ft-lb
- Torque (Fabricated Deck)
- 100 ft-lb to 120 ft-lb
Images and diagrams
- Figure 1-2 shows how to stabilize the blade for removal.

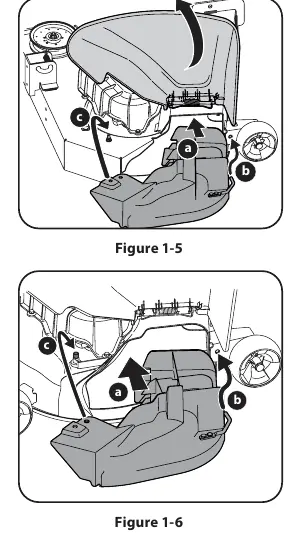

- Figure 1-5 and 1-6 illustrate the insertion of the mulch plug into the discharge chute.
- Figure 1-7 highlights the correct positioning of the mulch plug lip inside the deck opening.
Model compatibility
- Designed for use with select 54-inch triple-blade stamped and fabricated cutting decks.
- Refer to your tractor's Operator's Manual to assure compatibility.
