User Manual for The Home Depot 1900EZ-26C Electric Fireplace
Comprehensive user guide for the The Home Depot 1900EZ-26C electric fireplace. Includes installation steps for crystal beads, operating instructions for the control panel and remote, safety warnings, and troubleshooting tips.
Quick answers from the manual
Quick answer
- The 1900EZ-26C is an electric fireplace operated via a control panel or remote. It requires a dedicated 120V/1500W circuit. Ensure proper ventilation and keep combustible materials at least 3 feet away. p. 4
Key actions
- Install crystal beads p. 7
- Change remote battery p. 6
First start
- Verify circuit breakers are on and expect a slight odor during the first use. p. 2
Problems and fixes
Display shows E2/E3
Unplug the heater for 30 minutes and allow it to cool down.
p. 9Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E2/E3 | Thermostat sensor issue / Overheating | Unplug for 30 minutes to cool down. | p. 9 |
Maintenance and reset
- Child Lock reset p. 5
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 120V / 60Hz | Electrical requirement | p. 4 |
| Watts | 1500 Watts | Power consumption | p. 4 |
Where to find it in the PDF
- Quick Start Guide p. 2
- Operating Instructions p. 4, 5
- Troubleshooting p. 9
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
Before using your electric fireplace for the first time, ensure that the circuit breakers are on. You may notice a slight, harmless odor during the first use; this is a normal reaction as internal parts heat up and will dissipate quickly. Always keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains, at least 3 feet (0.9 m) away from the front, sides, and rear of the heater.

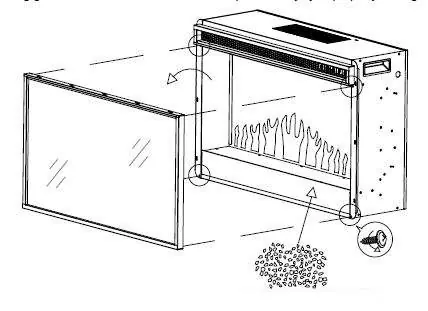

Installing the Crystal Beads
To install the decorative crystal beads:
- Remove the four screws at the corners of the glass frame assembly.
- Lift up and remove the front glass assembly away from the firebox.
- Carefully pour the decorative crystal beads onto the tray.
- Replace the glass frame assembly into the unit, align the screw holes, and tighten the four screws to secure it.
Caution: The front panel is made of glass. Handle with extreme care to avoid personal injury or property damage.
Electrical Connection
The fireplace requires a 12.5 AMP, 120 Volts, 60 Hz circuit. It is highly recommended to use a dedicated circuit to prevent the circuit breaker from tripping or the fuse from blowing when the heater is in operation. Always plug the heater directly into a wall outlet; do not use extension cords or power strips.
Operating Instructions
The fireplace can be operated using the control panel on the unit or the included remote control.
- Main Power: Switches the unit ON/OFF. Holding the power button for 5 seconds activates or deactivates the Child Lock mode.
- Heater: Programs the thermostat. Adjust the temperature from 62°F to 82°F (17°C to 27°C). Hold the button for 5 seconds to toggle between Fahrenheit and Celsius.
- Flame Crystal Color: Adjusts the color level (00 to L5).
- Flame Speed: Adjusts the speed of the flame effect (1 to 5).
- Timer: Controls the duration of the heater function (30 min to 9 hours).
Maintenance and Troubleshooting
If the remote control stops working, replace the battery with a new CR2025 battery. Ensure the battery is inserted with the correct polarity. If the display shows an E2/E3 error code, it indicates a thermostat sensor issue or overheating. Unplug the heater for 30 minutes to allow it to cool down, then re-plug and operate. If the problem persists, discontinue use and contact customer service.
Manufacturer information
The Home Depot
Practical help
Common problems
Display shows E2/E3
The unit is overheating or has a sensor issue. Unplug for 30 minutes to cool down, then restart.
Remote control is not working
Replace the CR2025 battery, ensure you are within 20 feet, and point the remote directly at the control panel.
Heater does not blow warm air
Check if the thermostat is set higher than the current room temperature or if the unit is in a cool-down cycle.
No power to the unit
Verify the unit is plugged into a 120V outlet and the power button is set to ON.
Before use
- Verify circuit breakers are on.
- Ensure a dedicated 120V grounded outlet is available.
- Keep combustible materials at least 3 feet away.
- Install crystal beads before first use.
- Ensure the unit is not located immediately below a socket-outlet.
Images and diagrams
- Control panel layout showing timing, flame speed, color, heater, and power keys.
- Remote control button mapping for power, flame, timer, and heater settings.
- Crystal bead installation steps involving glass frame removal.
- Electrical plug and grounding adapter instructions.
Model compatibility
- Requires a dedicated 12.5A circuit.
- Do not use with extension cords or power strips.
- Not intended for use in bathrooms or laundry areas.
