User Manual for Thule Yepp Nexxt 2 Mini Front Child Bike Seat
Quick guide for the Thule Yepp Nexxt 2 Mini front child bike seat. Includes installation steps, safety warnings, weight/age limits, and usage instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Thule Yepp Nexxt 2 Mini is a front-mounted child bike seat designed for children aged 9 months to 3 years. Before using the seat, ensure your child can sit up unaided. The seat is intended for children weighing between 9-15 kg (20-33 lbs) and with a maximum height of 93 cm (36.61 inches). Do not exceed a speed of 25 km/h (15 mph) when using the seat.

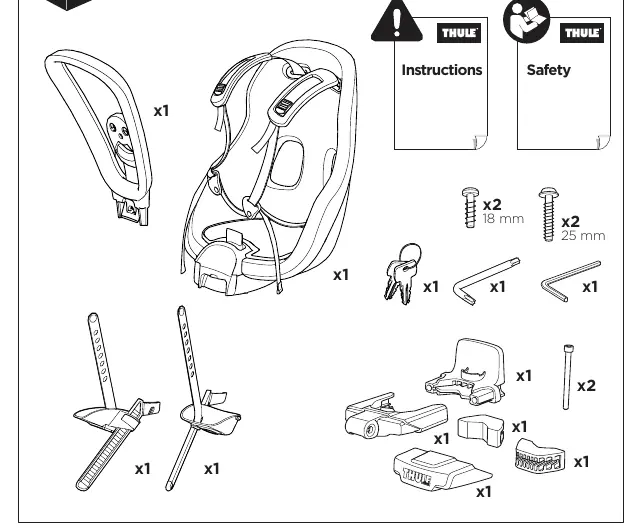

Product description and parts
The package includes the child seat, mounting adapter, and necessary hardware. Ensure all parts are present before beginning installation, including the 18 mm and 25 mm screws, keys, and mounting brackets.
Installation
The seat requires a compatible bicycle stem for mounting. The adapter fits stem diameters between 20-28.6 mm (0.87-1.125 inches) and requires a minimum of 21 mm (0.83 inches) of space on the stem.
Alternative 1 and 2
The manual provides two installation alternatives depending on your bicycle's stem configuration. Follow the specific steps for your bike type, ensuring the adapter is securely tightened. Use the provided hex key to tighten the mounting screws to 6 Nm. Ensure the adapter is level and secure before attaching the seat.
Using the seat
To attach the seat, click it securely into the mounted adapter. Always verify that the seat is locked in place. To secure the child, place them in the seat and fasten the harness. Ensure the harness is properly adjusted and buckled. The harness should be snug but comfortable. Always use the foot straps to secure the child's feet.
Safety warnings
- Never leave the child unattended in the seat.
- Always use the harness and foot straps.
- Do not modify the seat.
- Check the seat regularly for wear and tear.
- Do not use the seat if any parts are damaged.
- Ensure the child is wearing a properly fitted helmet.
- Be aware that the child's weight affects the bike's handling and braking.
Maintenance
Clean the seat regularly with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Store the seat in a dry place when not in use to prevent damage from weather conditions.
Manufacturer information
Thule
Practical help
Common problems
Seat feels loose or unstable
Check that the mounting screws are tightened to the specified 6 Nm torque and that the adapter is correctly positioned on the stem.
Child is uncomfortable or harness is loose
Adjust the harness straps to ensure a snug fit. Ensure the child is wearing appropriate clothing for the weather.
Adapter does not fit the stem
Verify that your stem diameter is between 20-28.6 mm and that there is at least 21 mm of clear space on the stem.
Before use
- Verify child weight is between 9-15 kg (20-33 lbs).
- Verify child age is between 9-36 months.
- Ensure child height is under 93 cm (36.61 inches).
- Check that the seat is securely clicked into the adapter.
- Ensure all mounting screws are tightened to 6 Nm.
- Check that the harness is buckled and adjusted correctly.
- Ensure the child is wearing a helmet.
Specs in practice
- Weight limit
- 9-15 kg (20-33 lbs). Do not exceed.
- Stem diameter
- 20-28.6 mm. Required for adapter installation.
Images and diagrams
- Installation Alt 1: Standard stem mounting procedure.
- Installation Alt 2: Alternative stem mounting procedure.
- Harness adjustment: How to secure the child safely.
- Torque settings: Use 6 Nm for mounting screws.
Model compatibility
- Compatible with most standard bicycle stems.
- Requires 21 mm minimum space on the stem.
- Not suitable for children under 9 months.
