User Manual for Thule Yepp 2 Mini Front Child Bike Seat
Quick guide for the Thule Yepp 2 Mini front-mounted child bike seat. Includes installation instructions, safety warnings, and usage guidelines for children aged 9-36 months.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Thule Yepp 2 Mini is a front-mounted child bike seat designed for children aged 9 to 36 months, with a weight capacity of 9-15 kg (20-33 lbs) and a maximum height of 93 cm (36.61 inches). Before use, ensure the child is able to sit up unaided and wear a helmet.
Safety warnings
- Speed limit: Do not exceed 25 km/h (15 mph).
- Weather: Avoid using the seat in extreme weather conditions, such as heavy rain or extreme temperatures.
- Visibility: Ensure the child is visible and the bike has appropriate lighting, especially at night.
- Prohibitions: Do not modify the seat. Do not carry more than one child. Do not attach the seat to a bike that is not compatible.
Installation
The seat requires a compatible handlebar stem for mounting. The stem diameter must be between 22-28 mm (0.87-1.10 inches) with a minimum of 21 mm (0.83 inches) of vertical space.
Mounting the bracket
There are two installation alternatives (Alt 1 and Alt 2) depending on your bike's stem configuration. Follow the specific steps in the manual for your bike type. Ensure all bolts are tightened to the specified torque of 6 Nm.

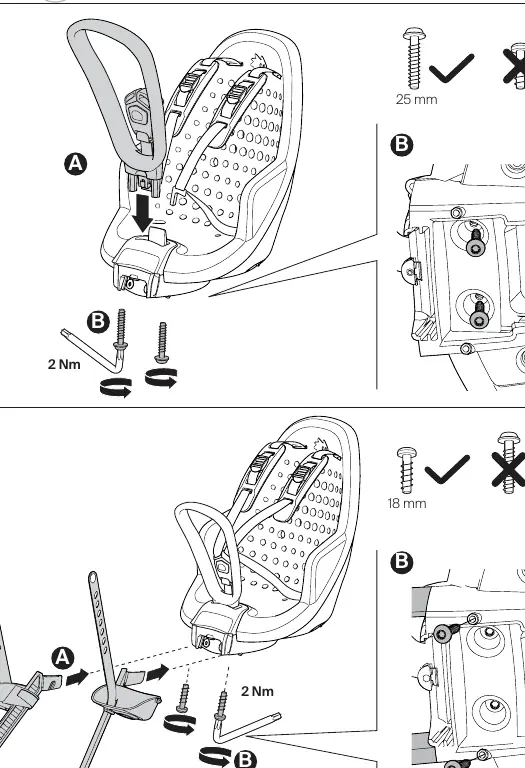

Assembling the seat
Attach the seat components using the provided screws. Tighten the assembly bolts to 2 Nm. Ensure the seat clicks securely into the mounting bracket.

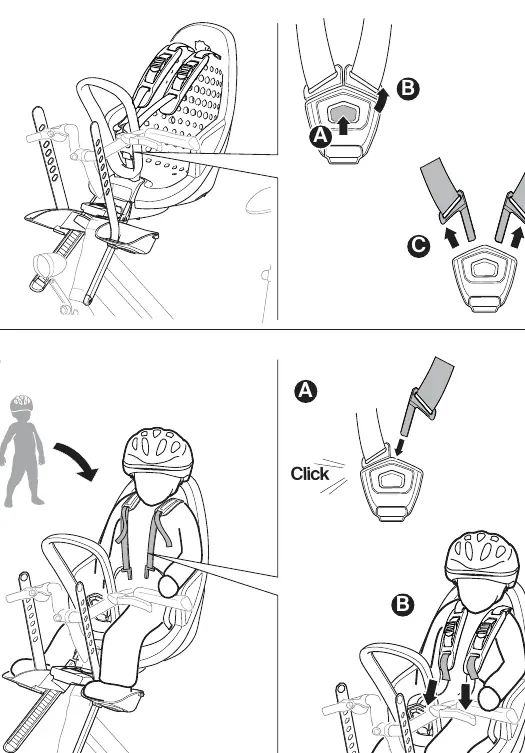

Usage
To place the child in the seat, ensure the bike is stable. Secure the child using the harness system. Adjust the harness straps so they are snug but comfortable. Ensure the buckle is fully engaged and clicks into place. Always check that the seat is locked to the bracket before every ride.
Maintenance
Regularly inspect the seat for any signs of wear or damage. Clean the seat with mild soap and water. Ensure the locking mechanism is free of debris and functions correctly.
Manufacturer information
Thule
Practical help
Common problems
Seat does not click into the bracket
Ensure the bracket is correctly installed and the locking mechanism is free of dirt or obstructions.
Harness is too loose
Adjust the harness straps using the buckle mechanism until they fit the child snugly.
Before use
- Verify child age (9-36 months) and weight (9-15 kg).
- Ensure the child is wearing a properly fitted helmet.
- Check that the handlebar stem diameter is 22-28 mm.
- Confirm the seat is securely locked to the mounting bracket.
- Ensure the harness is fastened and adjusted correctly.
- Verify that the seat does not interfere with steering or braking.
Images and diagrams
- Alt 1/Alt 2: Different mounting methods based on the bike's handlebar stem.
- Locking mechanism: Visual guide on how to secure and release the seat from the bracket.
Model compatibility
- Compatible with handlebar stems 22-28 mm in diameter.
- Requires at least 21 mm of vertical space on the stem.
