VEVOR 1110A Pipe Stand
A comprehensive user guide for the VEVOR 1110A pipe stand. This manual includes safety warnings, assembly instructions, weight capacity specifications, and maintenance procedures to ensure safe and efficient operation.
Table of contents
Manual images
Click an image to enlargeImportant Information
This guide provides essential instructions for the safe operation and maintenance of the VEVOR 1110A pipe stand. Please read all instructions carefully before use and keep this manual for future reference.
Safety Warnings
- Read all instructions before using the machine.
- Weight and Size Limits: Do not exceed the pipe diameter limit of 2 to 36 inches (50.8mm to 914.4mm) or the maximum weight limit of 2500 lbs (1134 kg).
- Stability: Failure to properly support the pipe may result in the stand tipping, dropping the pipe, or causing serious injury. Always place the stand on a flat, stable surface.
- Protective Gear: Wear heavy-duty work gloves, eye protection, and appropriate safety equipment during assembly and operation.
- Inspection: Inspect the stand before every use. Do not use if parts are loose, damaged, or if the frame is bent.
- Environment: Keep the assembly area clean and well-lit. Keep bystanders, children, and pets away from the work area.
- Electrical Hazard: The metal frame can conduct electricity. Keep lamps, extension cords, and electronic devices away from the frame.
Product Specifications
- Model: 1110A
- Pipe Diameter Capacity: 2" to 36" (50.8mm to 914.4mm)
- Maximum Weight Capacity: 2500 lbs (1134 kg)
Product Parts
Before assembly, verify that you have all components listed:
- Roller sleeve (2 PCS)
- Roller (2 PCS)
- Special lock nut (2 PCS)
- Nut & bolt (4 PCS)
- Nut & bolt sets (10 sets)
- Support body (2 PCS)
- Support foot (1 PCS)
Assembly
Follow the explosion diagram provided in the manual to assemble the stand. Ensure all bolts are tightened securely and the legs are firmly screwed into place. Incorrect assembly can be a hazard.
Cleaning and Maintenance
- Cleaning: Wipe with a soft, dry cloth. Never use abrasive cleansers or harsh pads.
- Lubrication: Regularly lubricate moving parts with industrial grease to prevent rust and ensure smooth operation.
- Storage: After disassembly, store parts and accessories in a dry place. Screw bolts back into the product after removal to prevent loss.
Manufacturer information
VEVOR
Practical help
Common problems
Stand tipping or instability
Ensure the stand is placed on a flat, level surface and that all legs are firmly screwed into place.
Loose or missing bolts
Inspect the stand before every use. Tighten all bolts and ensure no parts are damaged before operating.
Rust or stiff movement
Regularly lubricate moving parts with industrial grease to improve operation and prevent rust.
Before use
- Check for loose or missing bolts
- Ensure all legs are firmly screwed in
- Verify pipe diameter is within 2-36 inches
- Ensure load is under 2500 lbs
- Wear protective gloves
- Clear the area of bystanders and obstructions
Specs in practice
- Pipe diameter limit
- Supports pipes from 2 to 36 inches (50.8mm to 914.4mm).
- Max weight limit
- Maximum load capacity is 2500 lbs (1134 kg).
Images and diagrams

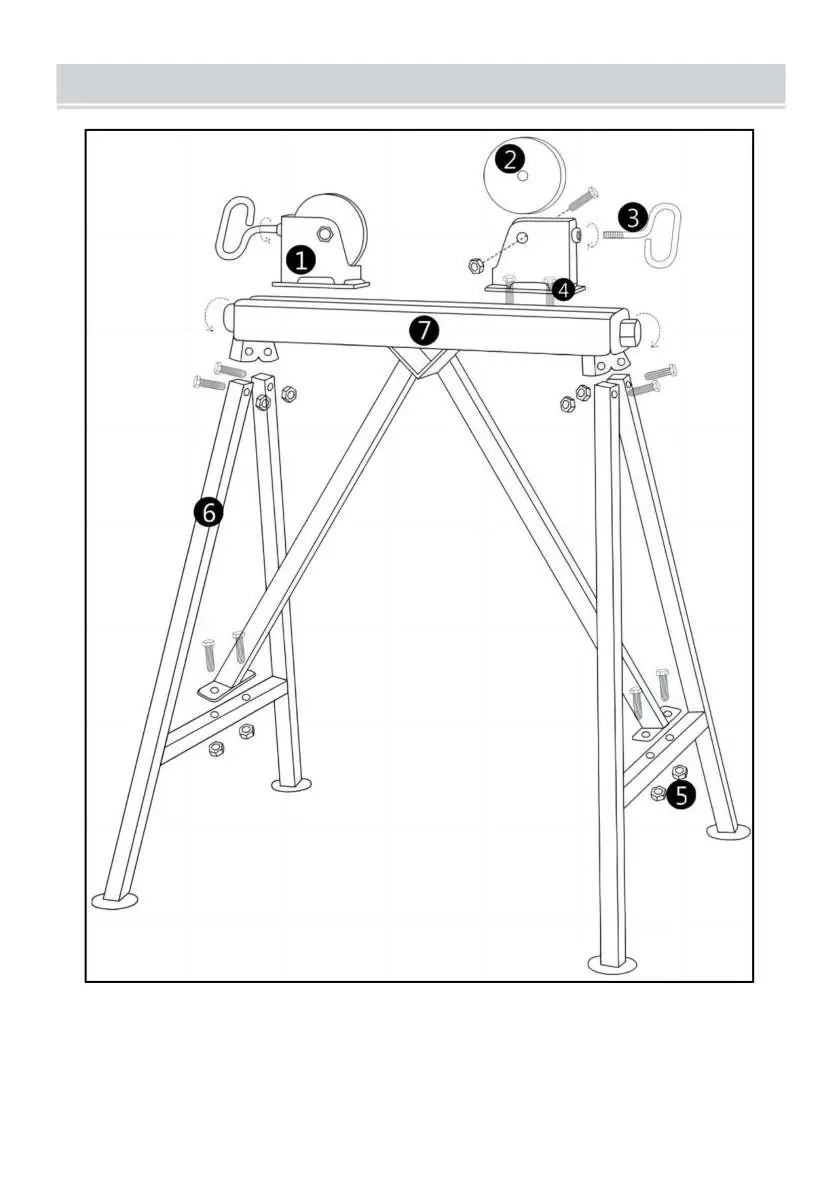

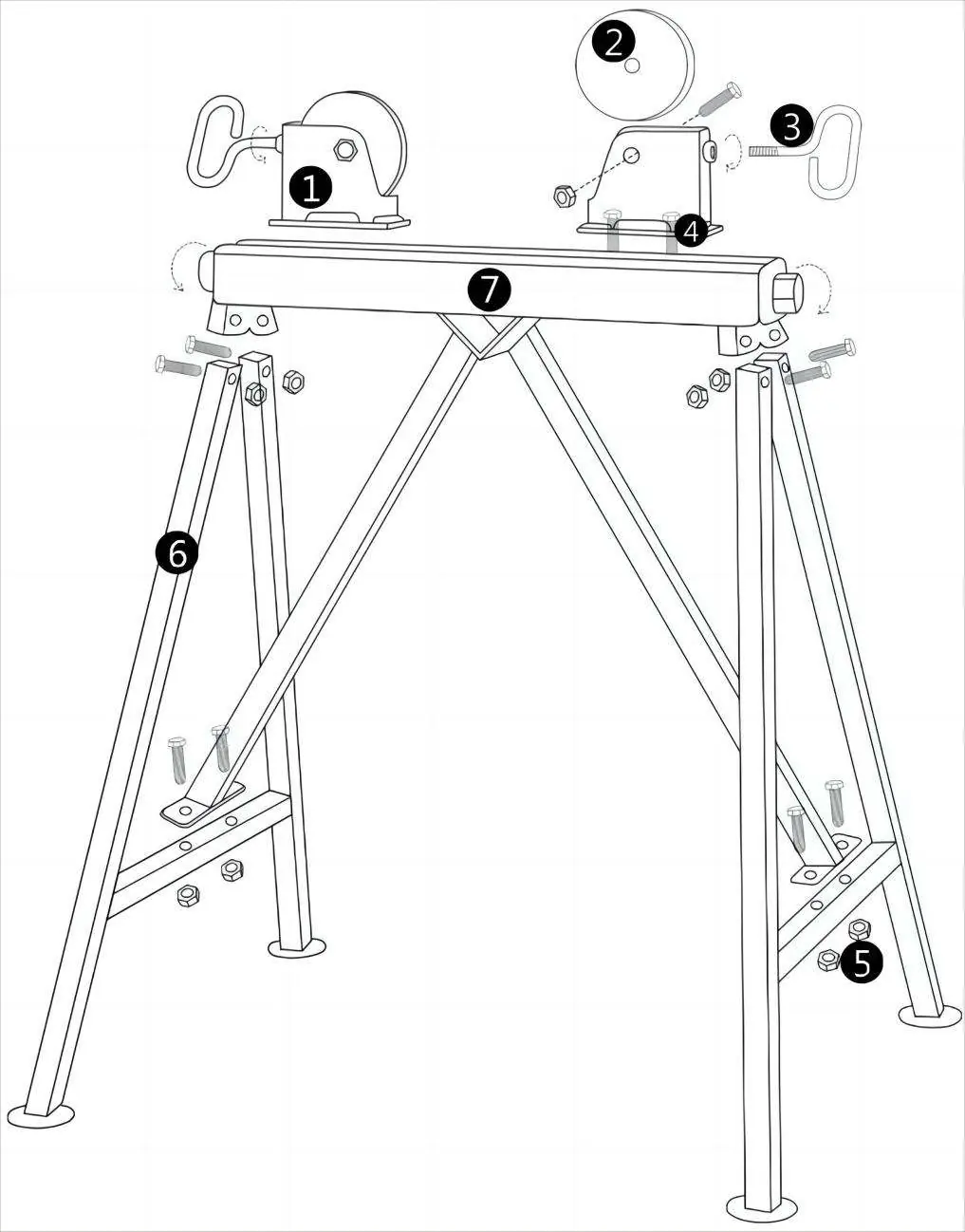

- The explosion diagram illustrates the correct positioning of the roller sleeves, rollers, lock nuts, and support body components.
Model compatibility
- Designed for indoor and outdoor use; however, avoid use during rainy, cloudy, or strong wind conditions to prevent accidents.
