VEVOR Wheel Chock Tie-Down Kit User Guide
Quick guide for VEVOR Wheel Chock Tie-Down Kit (models XM0501-XM0512). Includes safety warnings, load capacities, component lists, and step-by-step ratchet operation instructions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the safe assembly, installation, and operation of the VEVOR Wheel Chock Tie-Down Kit. Users must read the entire manual before use to prevent injury or property damage. Always adhere to Department of Transportation (D.O.T.) requirements and ensure the vehicle engine is off with the parking brake set before securing tires.
Safety & Warning
- Do not exceed the maximum weight capacity specified for your model.
- Performance depends on proper trailer tire pressure; check frequently.
- Keep the work area clean, well-lit, and free of children or spectators.
- Wear appropriate clothing; avoid loose items, jewelry, or long hair near moving parts.
- Never operate equipment while under the influence of alcohol, drugs, or medication.
Ratchet Operation
To tighten:
- From the bottom, thread the webbing through the slot in the center of the closed ratchet spool.
- Pull the webbing through to remove all slack.
- Start ratcheting by raising and lowering the handle.
- Finish with the handle in the lowered position.
To release:
- Pull and hold the release tab to override the ratcheting function.
- Open the ratchet until it is completely flat.
- Gently pull the webbing out of the ratchet.
- Pull and hold the release tab to close the ratchet.
Product Parameters
Load capacities vary by model:

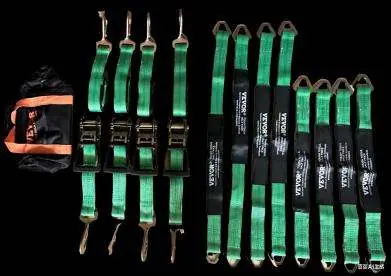

- XM0501/XM0502: 3333 lbs
- XM0503: 550 lbs
- XM0504/XM0505/XM0506/XM0507/XM0508/XM0509/XM0510: 3333 lbs

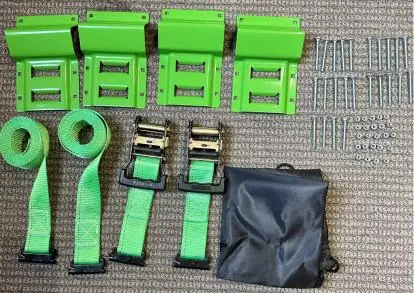

- XM0511/XM0512: 1460 lbs
Manufacturer information
VEVOR
Practical help
Common problems
Webbing will not tighten
Ensure the webbing is threaded correctly through the center slot of the spool and that the ratchet mechanism is not obstructed.
Ratchet will not release
Ensure the release tab is pulled and held firmly to override the locking mechanism before opening the ratchet flat.
Before use
- Verify the vehicle engine is OFF and the parking brake is set.
- Check trailer tire pressure to ensure optimal stabilizer performance.
- Inspect all straps and ratchets for signs of wear or damage.
- Ensure the work area is clear of bystanders and children.
- Confirm the load weight does not exceed the model's capacity.
Specs in practice
- Load Capacity
- The maximum weight the specific tie-down kit is rated to secure safely.
Images and diagrams
- Ratchet instructions show the 4-step process of threading, tensioning, and locking the strap.
- Release instructions illustrate how to disengage the ratchet mechanism using the release tab.
Model compatibility
- Models XM0501 through XM0512 are designed for specific vehicle transport scenarios; verify your model's specific component list before assembly.
