Allen + Roth 1863FM-28-201 Electric Fireplace Media Mantel User Guide
Quick guide for the Allen + Roth 1863FM-28-201 Electric Fireplace Media Mantel, covering assembly, operation, safety, and troubleshooting.
Table of contents
Quick guide from the manual
This document provides essential instructions for the assembly, safe operation, and maintenance of the Allen + Roth 1863FM-28-201 Electric Fireplace Media Mantel. Before starting, ensure all parts are present and that you have a Phillips screwdriver. The estimated assembly time is 50 minutes. For any missing parts or technical issues, contact customer service at 866-439-9800 or [email protected].
Safety Information
- Electrical: Requires a 120V, 60Hz, 15-Amp grounded outlet. Do not use extension cords or power strips.
- Placement: Keep combustible materials (pillows, curtains, etc.) at least 3 feet away from the unit. Do not block air intakes or exhausts.
- Stability: Designed for flat-panel TVs up to 56 inches and 80 lbs. Use the included TV stopper if using as a TV stand.
- Operation: Never leave the heater unattended. Unplug when not in use or during cleaning.
Assembly Instructions
The assembly involves connecting the front panels, walls, base, and top mantel. Key steps include:

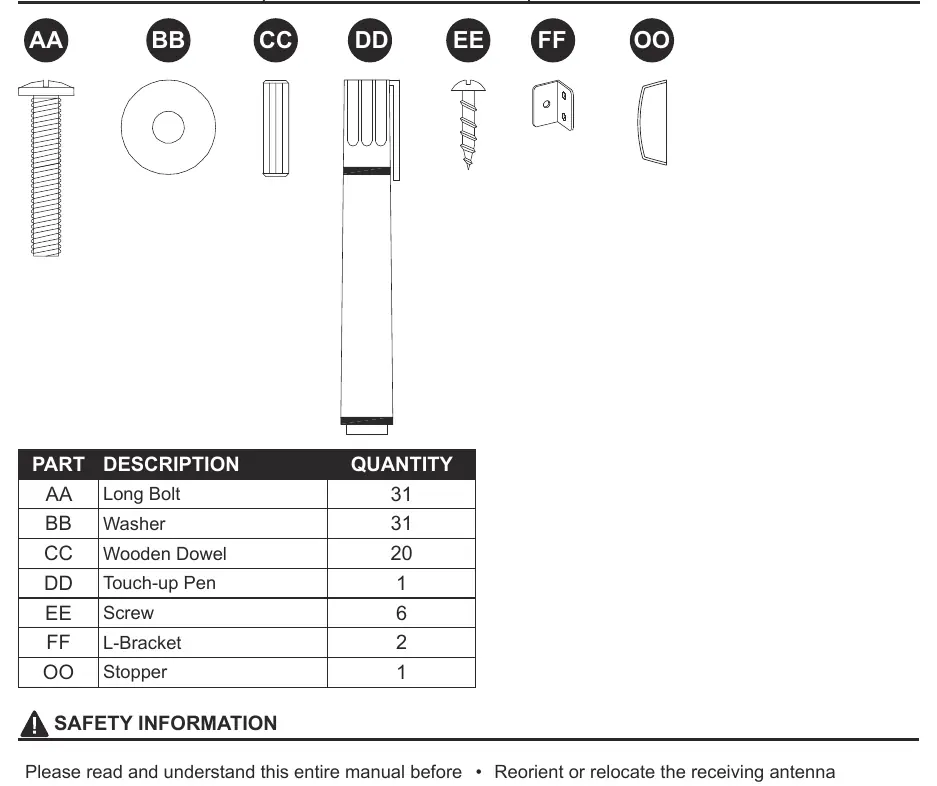

- Aligning panels (D, E) with opening plates (F) and walls (C) using long bolts (AA) and washers (BB).
- Securing the assembly to the base (L) with wooden dowels (CC) and bolts.
- Installing the fireplace glass front (K), grate (N), and fire log (M).
- Optional corner assembly is available using the L-corner support rod (Q) and corner panel (B).
- Use the pre-assembled levelers on the base to ensure the unit is stable.
Operating Instructions
The fireplace can be controlled via the built-in control panel or the included remote control. Remove the plastic tab from the remote before first use.
- Power: Turns the unit ON/OFF. A 40-second cool-down cycle occurs after turning off.
- Flame Brightness: Adjustable through 5 levels or OFF.
- Flame Speed: Adjustable through 5 levels.
- Heater: Adjustable thermostat (65°F to 90°F). Can be set to 'HI' for continuous heat or 'OF' to run flame effects without heat.
- Sleep Timer: Available on remote only, ranging from 30 minutes to 9 hours.
- Heater Override: A safety feature to disable the heater (prevents accidental activation). Set by holding the Power button for 20 seconds while the heater display flashes.
Care and Maintenance
Ensure the unit is OFF, unplugged, and cool before cleaning. Use a soft, water-dampened cloth for metal trim; avoid household cleaners. Periodically vacuum air vents to remove dust. Use the included touch-up pen (DD) for wood scratches, stroking in the direction of the grain.
Troubleshooting
- E1/E2 Errors: Overheat or thermostat sensor issues. Unplug for 15-20 minutes to reset.
- E3 Error: Heater override is engaged.
- No Power: Check outlet connection and ensure the unit is powered on.
- Remote Issues: Replace the CR2025 battery or move closer to the unit (within 20 feet).
Manufacturer information
Allen + Roth
Practical help
Common problems
Error E1 or E2 on control panel
Unplug the unit, wait 15-20 minutes for the sensor to reset, then plug back in.
Heater does not turn on (E3 error)
The heater override function is engaged. Follow the instructions on page 16 to re-engage.
Remote control not working
Replace the CR2025 battery or ensure you are within 20 feet and at an angle of 45 degrees or less.
No flame effect
Ensure the flame brightness is set to a level other than OFF and the USB cable is connected behind the fireplace grate.
Before use
- Verify all parts listed in the package contents are present.
- Ensure you have a Phillips screwdriver for assembly.
- Check that your wall outlet is 120V, 60Hz, and properly grounded.
- Remove the plastic tab from the remote control.
- If using as a TV stand, install the included TV stopper.
Specs in practice
- Maximum TV Weight
- 80 lbs (36.28 kg) for TVs up to 56 inches.
- Thermostat Range
- 65°F (18°C) to 90°F (43°C).
- Remote Battery
- Requires one CR2025 lithium battery.
