Arenti Speed 10T Dome 1 2K Ultra HD Camera User Guide
Quick start guide for the Arenti Speed 10T (Dome 1) IP camera, covering setup, configuration, LED status indicators, and technical specifications.
Table of contents
Product Overview
The Arenti Speed 10T (Dome 1) is a 2K Ultra HD IP camera designed for indoor use. It features two-way audio, pan/tilt functionality, and night vision capabilities. The device is compatible with Amazon Alexa and Google Assistant for smart home integration.

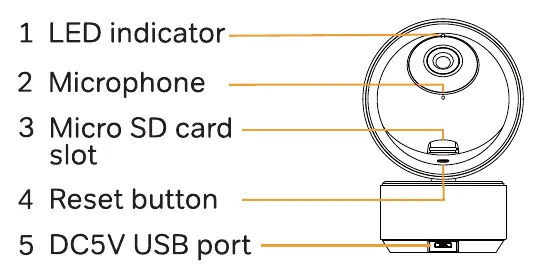

Device Components
The camera unit includes an LED status indicator, a built-in microphone, a Micro SD card slot for local storage (up to 128GB), a reset button, and a DC5V USB power port.
Configuration and Setup
To set up the camera, follow these steps:
- Connect the camera to power using the provided adapter.
- Ensure your smartphone is connected to a 2.4GHz or 5GHz Wi-Fi network.
- Download the Arenti app from the App Store or Google Play.
- Create an account and log in to the app.
- Follow the in-app instructions to add the device.
If you need to change the Wi-Fi network, you must restore the camera to factory settings by pressing and holding the reset button for 5 seconds until the camera beeps.
LED Indicator Status
- Flashing red (slow): Waiting for configuration.
- Flashing red (fast): Searching for Wi-Fi network.
- Fixed blue: Connected to Wi-Fi.
- Flashing blue: Access point mode.
Technical Specifications
The camera records in 1920 x 1080 resolution using H.264 compression. It supports IEEE802.11a/b/g/n Wi-Fi standards on both 2.4GHz and 5GHz frequencies. The operating temperature range is -10°C to 45°C. The device requires a DC5V, 1A power supply.
Safety and Maintenance
This device is intended for indoor use only. Do not dispose of the camera or its batteries in household waste; use local selective collection services for electronic waste. For further support, visit www.arenti.com.
Official resources from the manual
Manufacturer information
Arenti
Practical help
Common problems
Camera not connecting to Wi-Fi
Ensure the camera is in the correct configuration mode (flashing red light). If it fails, reset the device by holding the reset button for 5 seconds.
Need to change Wi-Fi network
You must restore the camera to factory settings first, then follow the initial configuration steps in the Arenti app.
Before use
- Ensure you have a stable 2.4GHz or 5GHz Wi-Fi connection.
- Download the Arenti app on your smartphone.
- Check that the power adapter is connected to a standard wall outlet.
- Verify the camera is placed in an indoor environment.
- Ensure you have a Micro SD card (up to 128GB) if you require local recording.
Specs in practice
- Infrared distance
- The night vision range is up to 10 meters.
- Working temperature
- The device is designed to operate between -10°C and 45°C.
Images and diagrams
- The LED indicator is located on the front of the camera lens housing.
- The Micro SD card slot and Reset button are located on the camera body below the lens.
- The DC5V USB port is located on the base of the camera.
Model compatibility
- Compatible with Amazon Alexa.
- Compatible with Google Assistant.
- Supports 2.4GHz and 5GHz Wi-Fi networks.
- For indoor use only.
