Askar 103APO EAF Mounting Instructions
A step-by-step installation guide for mounting the Electronic Automatic Focuser (EAF) onto the Askar 103APO telescope, including bracket attachment and coupling adjustment procedures.
Table of contents
Quick Installation Guide
This guide provides the necessary steps to install an Electronic Automatic Focuser (EAF) on the Askar 103APO telescope. Ensure you have a 1.5mm wrench available before starting. The process involves removing the existing coarse adjustment knob, attaching the motor bracket, and securing the EAF unit with the appropriate flexible coupling.
Installation Steps
- Remove the thumb screw: Locate and remove the thumb screw from the focuser assembly.
- Remove the coarse adjustment knob: Use a 1.5mm wrench to loosen and remove the coarse adjustment knob.
- Attach the motor bracket: Position the motor bracket and insert the standard M4 screws into the designated holes. Important: Do not fully lock these screws yet to allow for alignment adjustments.
- Install the flexible coupling: Select the 5-6mm flexible coupling and lock it onto the shaft.
- Mount the EAF: Insert the EAF unit into the flexible coupling and tighten the coupling end locking screw.
- Secure the EAF: Lock the EAF mounting screws to fix the motor in place.
- Finalize installation: Tighten the M4 fixing screws on the bracket to complete the installation.
Important Notes
During the installation process, ensure that the motor bracket is not fully tightened until the EAF and coupling are properly aligned. This prevents binding and ensures smooth operation of the focuser.
Practical help
Common problems
Bracket misalignment
Do not fully lock the M4 screws until the EAF and coupling are properly aligned with the focuser shaft.
Difficulty removing the knob
Ensure you are using a 1.5mm wrench to loosen the coarse adjustment knob correctly.
Before use
- 1.5mm wrench
- 5-6mm flexible coupling
- M4 screws (provided with bracket)
Specs in practice
- Flexible coupling
- The 5-6mm component required to connect the EAF motor shaft to the telescope focuser shaft.
Images and diagrams

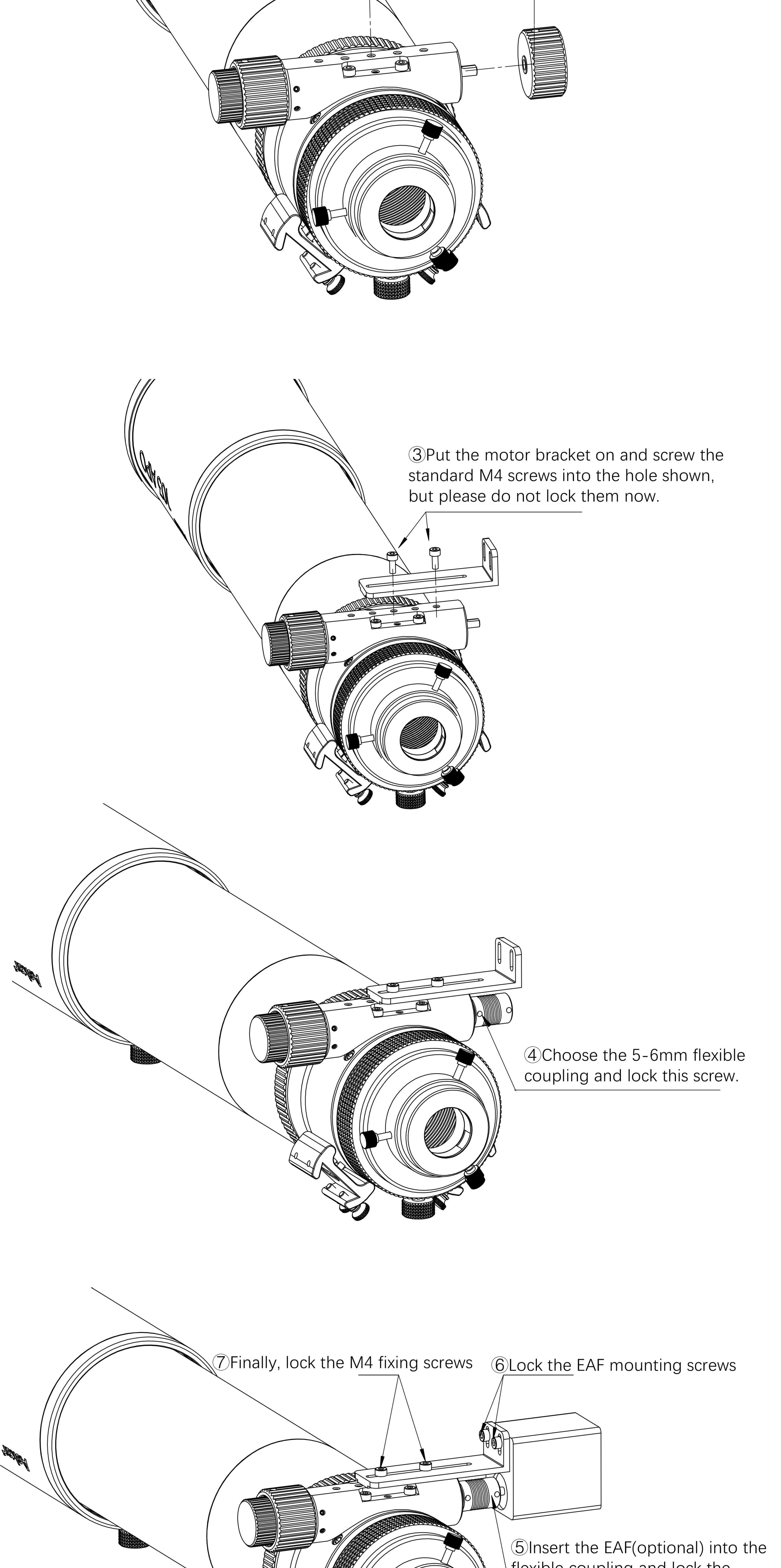

- The diagram illustrates the sequential removal of the coarse adjustment knob and the subsequent mounting of the motor bracket and EAF unit.
Model compatibility
- Designed specifically for the Askar 103APO telescope.
