User manual for Bartscher 0.8L Kettle 200108
Quick guide for the Bartscher 0.8L Kettle (200108). Learn how to safely operate, clean, descale, and maintain your appliance for optimal performance.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This Bartscher 0.8L kettle (model 200108) is designed for boiling and heating water in household and similar environments. It features a 360° swivel base, removable limescale filter, and dry-run protection. Before first use, ensure the appliance is cleaned according to the cleaning instructions.
Safety Instructions
- Electrical Safety: Ensure the mains voltage matches the rating plate. Do not touch the plug with wet hands. Do not use if the power cord is damaged.
- Hot Surfaces: The kettle and lid become hot during operation. Use only the handle to move the appliance.
- Usage: Do not operate without water. Do not fill beyond the MAX mark. Do not use for liquids other than water (e.g., alcohol, acids, oils).
- Children: Keep the appliance and cord away from children under 8 years old. Children 8+ may use it only under supervision.
Installation and Operation
Installation: Place the kettle on a stable, dry, heat-resistant, and well-ventilated surface. Maintain at least 10 cm clearance from flammable walls. Connect to a properly grounded single socket.
Operation:
- Open the lid by pressing the lock.
- Fill with fresh water (between MIN and MAX markings).
- Place the kettle on the base.
- Plug into a socket and press the ON/OFF switch to the I position.
- The indicator light will turn on. The kettle switches off automatically when water boils.
- To interrupt manually, press the switch to the O position.
Dry-Run Protection: If the kettle is switched on without sufficient water, the protection will trigger. Remove from the base, let it cool down, and refill with fresh water before using again.
Cleaning and Maintenance
- Daily Cleaning: Rinse the water tank with clean water. Wipe the exterior and base with a soft, damp cloth.
- Limescale Filter: Remove the filter using the click system, wash it with water, and reinstall.
- Descaling: Regular descaling is essential to prevent damage and maintain efficiency. Use a suitable descaling agent (e.g., Bartscher liquid or granulate). Fill with water and descaling agent, boil, then rinse thoroughly with fresh water several times.
Technical Data
- Volume: 0.8 L
- Connected Load: 1.2 kW | 230 V | 50/60 Hz
- Dimensions: 140 x 200 x 195 mm
- Weight: 0.65 kg
- Temperature Range: 0 - 100 °C
Manufacturer information
Bartscher GmbH
Practical help
Common problems
Appliance does not heat or switch on
Check if the power cord is connected properly. If the kettle was empty, the dry-run protection may have triggered; let it cool down and refill.
Long heating time
Limescale deposits may have built up. Perform the descaling procedure as described in the manual.
Water leaking
Ensure you have not filled the kettle above the MAX mark.
Before use
- Check the delivery for completeness and shipping damage.
- Clean the appliance thoroughly before first use.
- Ensure the base is placed on a stable, dry, and heat-resistant surface.
- Verify that the local mains voltage matches the appliance rating plate.
- Ensure the water tank is filled with fresh water between the MIN and MAX marks.
Specs in practice
- Connected load (1.2 kW)
- The power consumption of the appliance during operation.
- Dry-run protection
- Safety feature that automatically switches off the kettle if it is empty or has insufficient water.
Images and diagrams

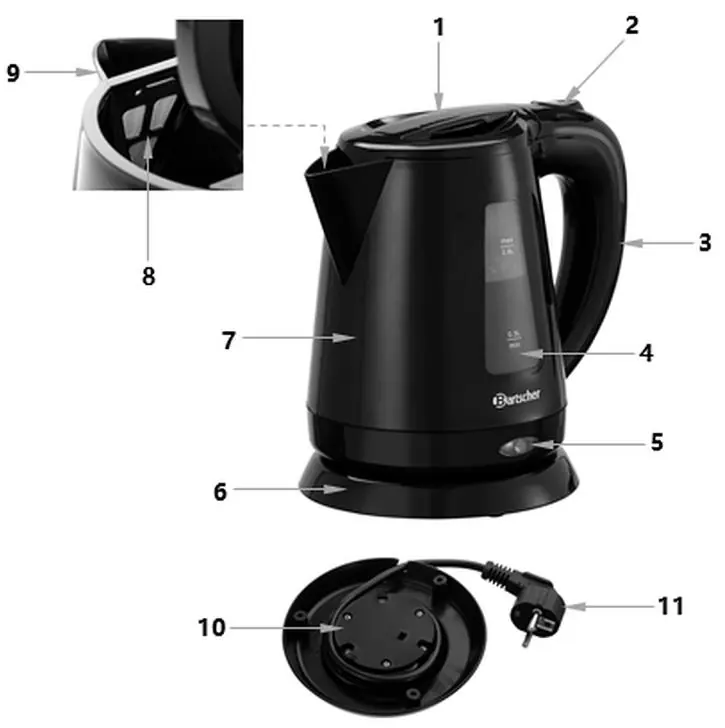

- Fig 1 identifies the main components: lid with lock, ON/OFF switch, handle, fill level indicator, base, and limescale filter.
- Fig 2-5 illustrate the operational sequence: opening the lid, filling water, placing on the base, and activating the switch.
Model compatibility
- Matches tea caddies: 1145SH (art. No. 200120) and 1145M (art. No. 200121).
