Bartscher 10L Hot Water Dispenser Parts List
Access the official parts list and exploded view diagram for the Bartscher 10L Hot Water Dispenser. Identify components, item numbers, and assembly details for maintenance and repair.
Table of contents
Quick Guide to Parts and Components
This document provides an exploded view and a comprehensive parts list for the Bartscher 10L Hot Water Dispenser. It is intended for service technicians and users identifying replacement parts. Always ensure the device is disconnected from the power supply before attempting any repairs or component replacement.

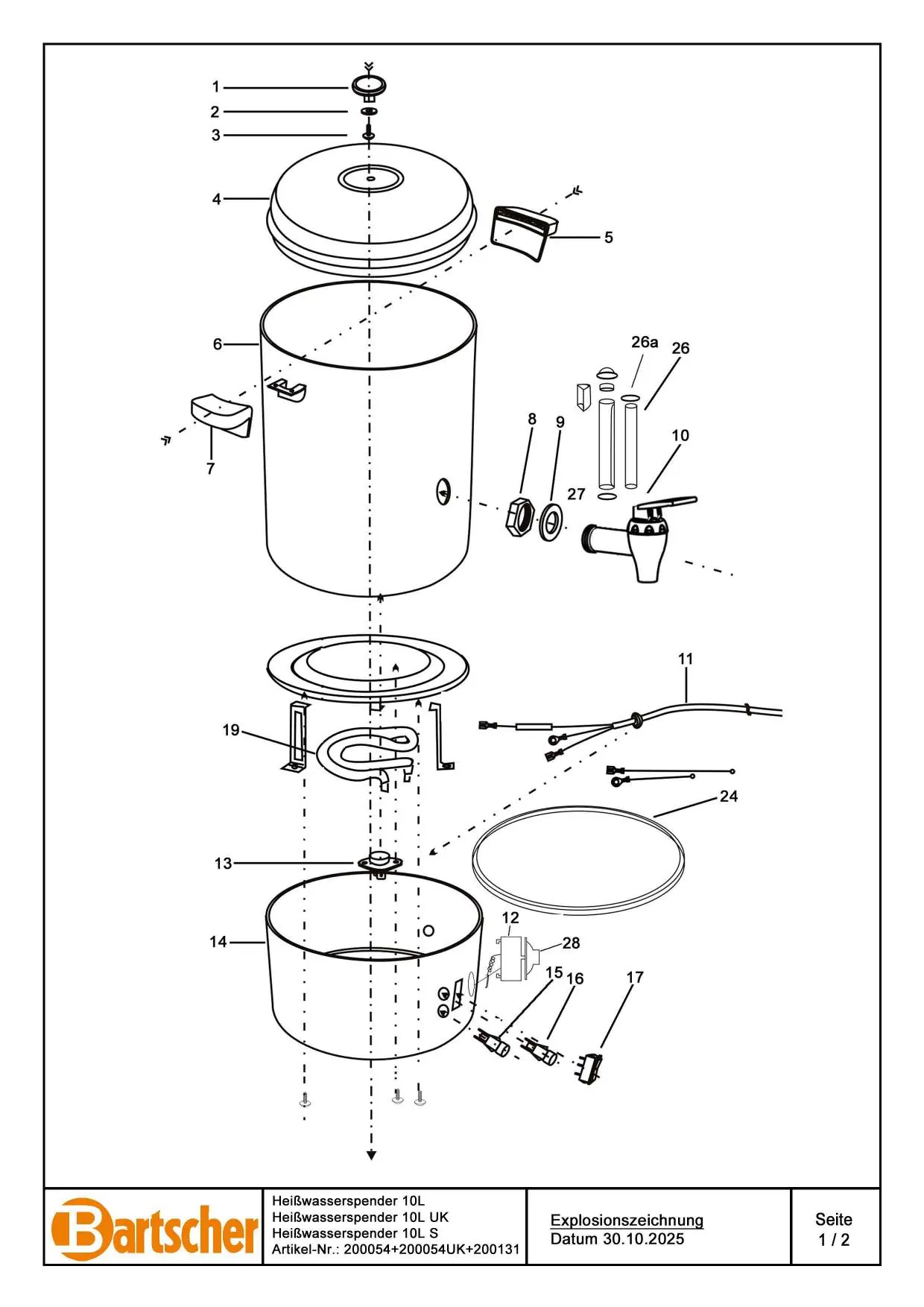

Exploded View and Component Identification
The exploded view diagram illustrates the assembly of the unit, including the lid, housing, heating element, and drain tap. Each component is numbered, corresponding directly to the items listed in the parts table. Use this diagram to understand the internal structure and the correct positioning of parts during reassembly.
Parts List
The parts list provides the item description and the corresponding item number for ordering replacements. Key components include:
- Lid and Handle: Items 1-4 and 5.
- Housing: Item 6.
- Drain Tap: Item 8-10 (complete assembly).
- Thermostats: Item 12 (30-105 C) and Item 13 (Safety thermostat 135 C).
- Indicator Lights: Item 15 (Green) and Item 16 (Red).
- Level Indicator: Item 26 (Note: different versions exist based on production date).
Maintenance and Safety
When performing maintenance, ensure you are using the correct part number for your specific unit version. Pay close attention to the level indicator (Item 26), as there are different versions available depending on the production date (before or after 11/2017). If the unit is not heating, check the thermostat (Item 12) and the safety thermostat (Item 13). If the unit is leaking, inspect the drain tap assembly (Item 8-10) and the sealing (Item 26a).
Manufacturer information
Bartscher GmbH
Practical help
Common problems
Unit is not heating
Check the thermostat (Item 12) and the safety thermostat (Item 13) for continuity or damage.
Water leaking from the tap
Inspect the drain tap assembly (Item 8-10) and the sealing (Item 26a) for wear or improper seating.
Indicator lights not functioning
Verify the status of the green (Item 15) or red (Item 16) indicator lights.
Before use
- Ensure the device is completely disconnected from the power source.
- Verify the model number matches the parts list provided.
- Check the level indicator (Item 26) for any cracks or signs of leakage.
- Ensure all seals (Item 26a, 24) are intact before reassembly.
Specs in practice
- Safety Thermostat
- Thermal cutoff set at 135 C.
Images and diagrams
- The diagram shows the vertical assembly of the dispenser.
- Numbers in the diagram correspond to the 'Pos.' column in the parts list table.
- Dashed lines indicate the connection points for electrical components and the drain tap.
Model compatibility
- Level indicator (Item 26) has two versions: one for units until 11/2017 and one for units from 12/2017.
- Housing (Item 6) and Lid (Item 1-4) are available in standard and black matted finishes.
