Instruction Manual for Bauhaus Connectable LED Lighting Chain 2001869N
Quick guide for the Bauhaus Connectable LED lighting chain (model 2001869N). Learn how to safely connect, install, and maintain your lighting system, including IP44 usage and connection limits.
Quick answers from the manual
Quick answer
- This manual covers the safe installation and connection of the Bauhaus Connectable LED lighting chain. Key requirements include using only supplied connectors, ensuring all gaskets are in place, and not exceeding the maximum capacity of 2500 LEDs or 230W. p. 1
Key actions
- Ensure all gaskets are in place before use. p. 1
- Seal all open ends before connecting to power. p. 1
Problems and fixes
Damaged LEDs
Do not use or energize the chain; dispose of it safely as LEDs are not replaceable.
p. 1Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230V~, 50Hz | Power supply requirement | p. 1 |
| Max Capacity | 2500 LEDs / 100m / 230W | Maximum load for the system | p. 1 |
Where to find it in the PDF
- Instruction Sheet p. 1
Table of contents
Quick guide from the manual
This document provides essential safety and installation instructions for the Bauhaus Connectable LED lighting chain. The system is designed for both indoor and outdoor use (IP44). Always ensure that all gaskets are in place before use and never connect the chain to the power supply while it is still in the packaging.
Installation and connection
To ensure safe operation and longevity of your lighting chain, follow these connection guidelines:
- Use supplied connectors: Interconnection must only be made using the connectors provided with the product.
- Seal open ends: Any open ends must be sealed off before the product is used.
- Do not mix brands: Do not interconnect parts of this lighting chain with parts from another manufacturer's lighting chain.
- Check gaskets: The lighting chain must not be used without all gaskets being in place.
Safety warnings
- Not a toy: Keep the product away from children.
- LEDs are not replaceable: If breakage or damage to the LEDs occurs, the chain must not be used or energized. It must be disposed of safely.
- Power supply: Do not connect the chain to the supply while it is in the packaging.
Technical specifications
The lighting system operates on 230V~, 50Hz. The maximum capacity for the connected system is 2500 LEDs, 100 meters in length, or 230W total power.
Practical help
Common problems
LEDs are damaged or broken
The LEDs are not replaceable. If damage occurs, do not use or energize the chain; dispose of it safely.
Connection issues between chains
Ensure you are using only the supplied connectors and that all gaskets are properly installed. Do not mix with other manufacturers' parts.
Before use
- Ensure all gaskets are in place.
- Verify the chain is not connected to power while in the packaging.
- Check that you are not mixing parts with other brands.
- Ensure all open ends are sealed.
- Confirm the total load does not exceed 2500 LEDs or 230W.
Specs in practice
- Max 2500 LEDs / 100m / 230W
- The maximum limits for the entire connected lighting system.
Images and diagrams

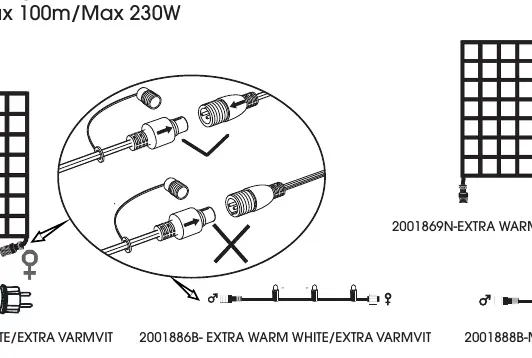

- The diagram illustrates the correct method for connecting the lighting chain segments using the provided connectors.
