User Manual for Beko DTBC 10001W Condenser Tumble Dryer

Quick guide from the manual

This guide provides essential information for operating your Beko DTBC 10001W condenser tumble dryer. Always refer to the full manual for detailed safety instructions and warranty information.

Safety and environment

• Electrical safety: Connect to a grounded outlet protected by a fuse. Do not use extension cords or multi-plugs.
• Fire hazard: Do not dry unwashed items or items soiled with oil, alcohol, or industrial chemicals.
• Child safety: Keep children away from the dryer during operation. Use the child lock feature.
• Installation: Do not block ventilation grills. Ensure the dryer is on a stable, level surface.

Installation

Before using the dryer, remove the transportation safety assembly. The dryer should be installed in a well-ventilated, dust-free environment. If stacking on a washing machine, use a fixing device installed by an authorized service agent.

Connecting to the drain

You can drain accumulated water directly through the supplied drain hose instead of using the water tank. Connect one end of the hose to the connection point on the back of the dryer and the other end to a wastewater drain or washbasin.

Adjusting the feet

Turn the feet to the left or right until the dryer stands level and firmly on the floor.

Preparation

• Laundry suitability: Check garment labels. Do not dry delicate fabrics like wool or silk unless specified.
• Load capacity: Do not exceed the maximum capacity of 10 kg.
• Energy saving: Spin laundry at the highest speed possible in the washing machine before drying.

Operating the product

Select the desired program using the On/Off/Programme selection knob. Press the Start/Pause button to begin. You can use the Time Delay button to delay the start by 3, 6, or 9 hours.

Child lock

Activate the child lock by pressing the End Time and Buzzer buttons simultaneously for 3 seconds. This prevents the program flow from being interrupted.

Adding or removing clothes

Press the Start/Pause button to put the machine in stand-by mode. Open the door, add or remove laundry, close the door, and press Start/Pause again to resume.

Maintenance and cleaning

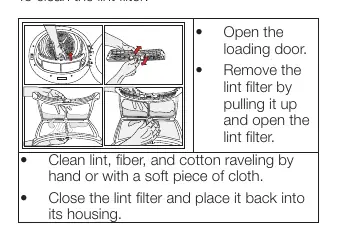

• Lint filter: Clean the lint filter after every drying cycle. Wash with warm water if clogged.
• Sensors: Clean the metal surfaces of the dampness sensors with a soft cloth dampened with vinegar 4 times a year.
• Water tank: Drain the water tank after each drying cycle.
• Condenser: Clean the condenser once a month or after every 30 drying cycles. Unlock the condenser locks, pull it out, and clean it with pressurized water.

Troubleshooting

• Drying takes too long: Clean the lint filter, check the condenser, and ensure ventilation is adequate.
• Clothes damp after drying: Check if the program is suitable for the laundry type and ensure the load is not excessive.
• Machine does not start: Ensure the power cord is plugged in, the door is closed, and the child lock is deactivated.
