User Manual for Sôlt 10.0kg Heat Pump Dryer GGSHPD100W

Quick guide from the manual

This heat pump dryer is designed for private household use. Before first use, ensure the appliance has stood for 2 hours after transport. Clean the inside of the drum with a soft cloth and run the Refresh program with clean rags inside. Always clean the lint filter after each use and empty the water container.

Product Overview

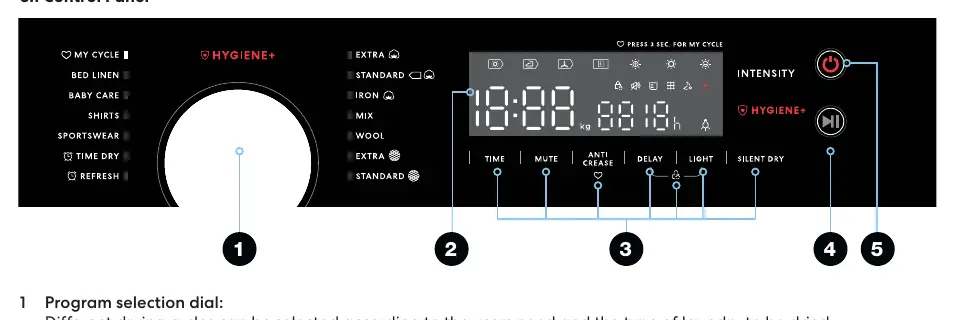

The dryer consists of the following main components: power cord, top board, water container, door, drum, door filter, air inlet, base filter, and maintenance cover. The control panel features a program selection dial, display, and various function buttons including Start/Pause and On/Off.

Operating Instructions

Before Each Drying Cycle

• Thoroughly spin laundry in the washing machine to shorten drying time.
• Sort laundry by fabric type.
• Close zips, hooks, and buttons; remove objects from pockets.
• Clean the lint filter and empty the water container.

Starting a Program

1. Plug in the appliance and press the On/Off button.
2. Rotate the program selector dial to choose the desired program.
3. Select additional functions (e.g., Delay, Intensity, Hygiene+) if needed.
4. Press the Start/Pause button to begin.

Programs

The dryer offers various programs including Cotton (Extra, Standard, Iron), Mix, Synthetics, Wool, My Cycle, Special (Bed Linen, Baby Care, Shirts, Sportswear), and Time (Time Dry, Refresh). Refer to the program table for specific load capacities and application details.

Cleaning & Maintenance

Lint Filter

Clean the door lint filter after every use. Remove the filter, wipe off accumulated lint, or rinse with water and dry thoroughly before re-installing.

Base Filter

Clean the base filter after every fifth drying program. Open the base filter cover, unlock the three locking levers, remove the filter, and clean it. Clean the rubber sealing as well.

Heat Exchanger

Clean the heat exchanger approximately once every two months using a vacuum cleaner with a dusting brush. Do not touch the heat exchanger with your hands to avoid injury.

Water Container

Empty the water container after each use. If the container fills during operation, the program will pause and the empty water container icon will flash.

Troubleshooting

If the dryer displays an error code (e.g., E32, E33, E64, E82), contact customer service. For common issues like the dryer not starting, check the start button, door closure, and program settings. If water is running out, ensure the dryer is aligned horizontally.

Technical Data

• Power supply: 220-240V ~50Hz
• Rated Power: 750W
• Rated drying capacity: 10.0kg
• Ambient temperature: +5°C – +35°C
• Refrigerant: R290, 140g
