User Manual for Beper 10IN1 Steam Mop
Quick guide for the Beper 10IN1 Steam Mop. Learn how to assemble, use, clean, and maintain your 10-in-1 cleaner, including safety warnings and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Beper 10IN1 Steam Mop is designed for household cleaning. Before first use, ensure the tank is filled with water (max 350ml) using the provided funnel. Allow 5-6 minutes for the water to heat up before use. Always disconnect the appliance when not in use and allow it to cool down completely before cleaning or storing. Do not add detergents, alcohol, or descalers to the water tank.
Product description
The appliance consists of a main body with a water tank, a steam button with a safety lock, and various accessories including a glass/window accessory, brushes, sprayers, and a floor cleaning extension with a microfiber cloth.
First use and filling
Place the cleaner on a stable surface. Unscrew the safety cap (anticlockwise). Use the funnel and measuring cup to pour 175ml of water into the tank. The maximum capacity is 350ml; do not overfill. Screw the safety cap back on firmly (clockwise).
Switching on
Connect the plug to a power outlet. Wait 5-6 minutes for the steam to be ready. To activate the steam, pull the safety button forward and press the steam button down. Release the button to stop the steam.
Accessories connection

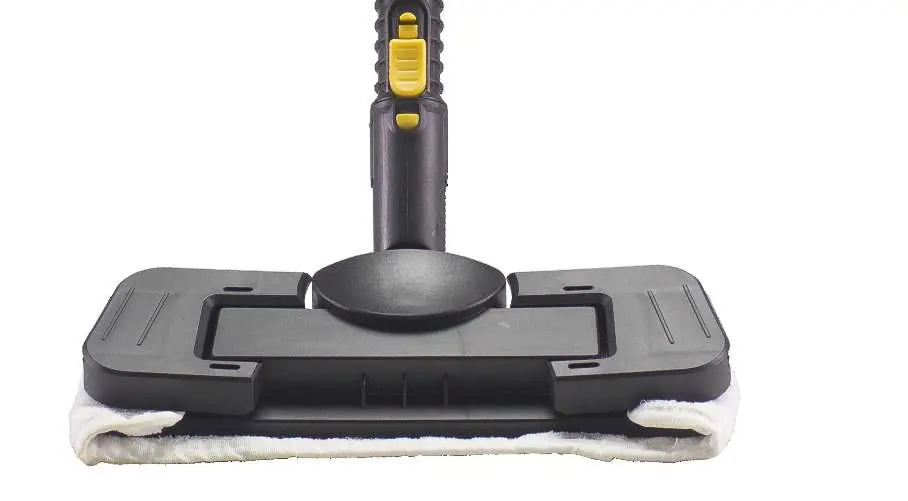

Brush and long sprayers: Insert into the articulated nozzle, align the line on the accessory with the arrow on the body, and rotate clockwise. Round or bent sprayer: Insert directly into the short sprayer with light pressure. Floor cleaner extension: Connect the 3 poles until they click. Attach the brush connector to the floor brush, then attach the microfiber cloth using the flaps. Connect the pole to the brush and the main body.
Functions
Sterilization: Use the long sprayer to target areas needing disinfection. Clothes cleaning: Use the general-purpose accessory with the fabric towel. Window cleaning: Use the brush with the window accessory. Floor cleaning: Use the floor extension with the brush and microfiber cloth.
Cleaning and maintenance
Before cleaning, unplug the appliance and let it cool down. Clean the exterior with a soft, damp cloth. Do not use chemical products. Once a month, rinse the boiler to remove limestone deposits.
Technical data
Tank capacity: 350 mlSteam pressure: 3.2 barSteam rate: 25-30 g/minPower: 1050 WPower supply: 220-240V ~ 50Hz
Manufacturer information
Beper S.r.l.
Practical help
Common problems
Steam not coming out
Check if the tank is empty, wait 5-6 minutes for heating, or ensure the safety button is pulled forward before pressing the steam button.
Water leaking during use
Do not tilt the appliance more than 45 degrees. Ensure the tank is not overfilled.
Safety cap will not open
Wait approximately 15 minutes for the pressure to release inside the tank before attempting to open.
Before use
- Ensure the tank is filled with a maximum of 350ml of water.
- Verify the safety cap is screwed on tightly.
- Check that the mains voltage matches the appliance label.
- Ensure all desired accessories are securely connected.
- Allow 5-6 minutes for the appliance to heat up.
Specs in practice
- Tank capacity
- 350 ml maximum water volume.
- Steam pressure
- 3.2 bar for effective cleaning.
Images and diagrams

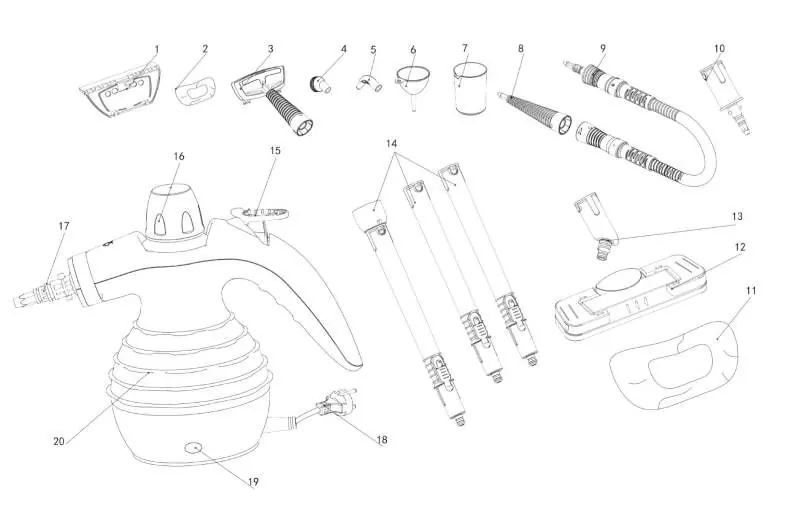

- Fig. A illustrates all 20 parts, including accessories and the main body.
- Fig. B demonstrates the steam activation mechanism (safety button and steam button).
- Fig. F, G, H, I show the assembly sequence for the floor cleaner extension.
Model compatibility
- Use only original Beper accessories.
- Do not add detergents, alcohol, or descalers to the water tank.
- Microfiber cloth is machine washable at 40°C.
